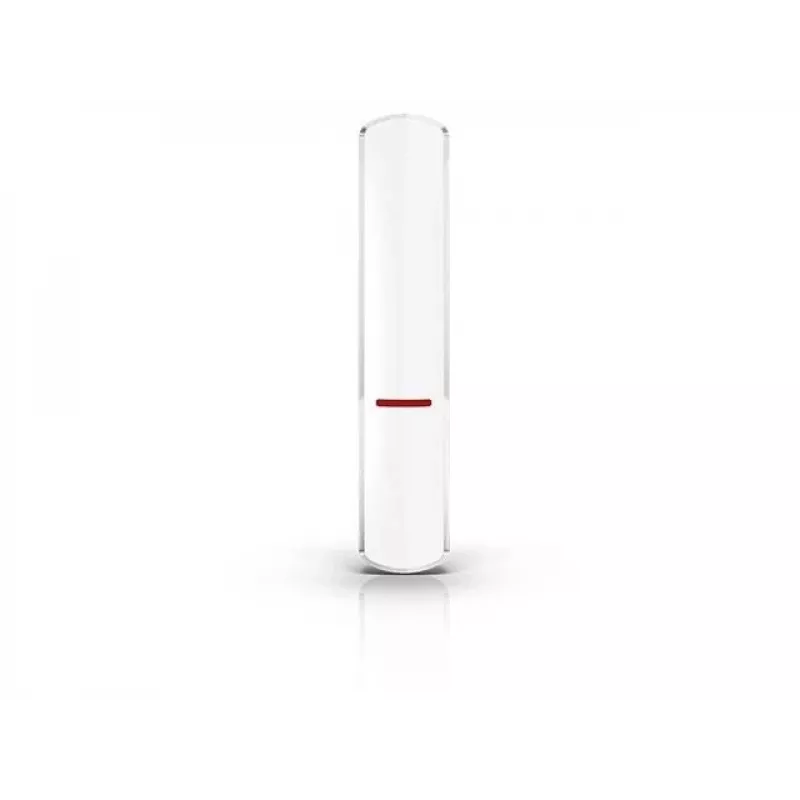

Rádiový rozširujúci modul pre alarm Satel ACU-280

ABAX 2 wireless system controller ACU-280 provides two-way, encrypted (AES) communication in the 868 MHz band and ensures that all radio transmissions between components of the ABAX 2 system are acknowledged. The module is compatible with INTEGRA, INTEGRA Plus and VERSA control panels, allowing wireless devices to be added to the alarm system. Its compact size requires little installation space and the device complies with EN 50131 Grade 2. The ACU-280 operates from a 12 V DC supply and has compact dimensions 24 mm (W) × 29 mm (D) × 135 mm (H).

Advantages

The ACU-280 uses AES-standard encryption and a modern radio system to provide reliable two-way communication and acknowledgements for transmitted messages. Depending on the paired devices and operating conditions, its transmission range can reach up to 1600 m in open area. The controller supports remote programming and maintenance: configuration, firmware upgrades and testing of enrolled wireless devices are performed by radio without removing devices. It also supports programming from the control panel, a keypad or via the DLOADX software, while ABAX 2 Soft is available for advanced diagnostics.

Suitable for

• Expanding wired alarm panels (INTEGRA, INTEGRA Plus, VERSA) with wireless devices
• Medium-security installations requiring EN 50131 Grade 2 compliance
• Installations where extended radio range (up to 1600 m in open area) is needed
• Sites where remote configuration, firmware updates and diagnostics are required

Key specifications

• Radio band: 868 MHz
• Encryption: AES
• Communication: two-way with acknowledgements
• Maximum transmission range: up to 1600 m (open area, depending on conditions)
• Power supply: 12 V DC
• Compliance: EN 50131 Grade 2
• Dimensions (W×D×H): 24 × 29 × 135 mm
• Compatible control panels: INTEGRA, INTEGRA Plus, VERSA
• Programming tools: control panel, keypad, DLOADX; diagnostics: ABAX 2 Soft

How to use

Install the ACU-280 in the control panel enclosure or a suitable location with access to 12 V DC power, ensuring adequate radio reception. Enrol the module with a compatible INTEGRA or VERSA control panel following the panel manufacturer’s procedure. Program the controller parameters from the control panel, a keypad or using the DLOADX software. Use ABAX 2 Soft for detailed diagnostics and to review radio network status. Perform firmware updates and device testing remotely over radio without dismounting the wireless devices.

Recommendations

Place the controller where it has the clearest radio path possible to the wireless devices; avoid metal enclosures and strong sources of interference. Verify range and signal levels during installation and use ABAX 2 Soft for network diagnostics and firmware management.
