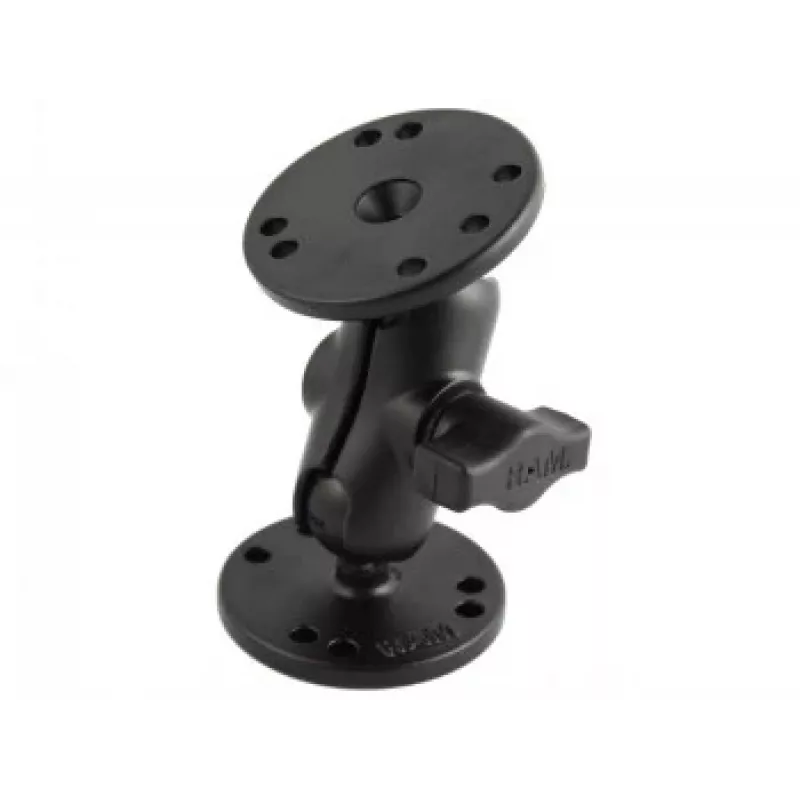

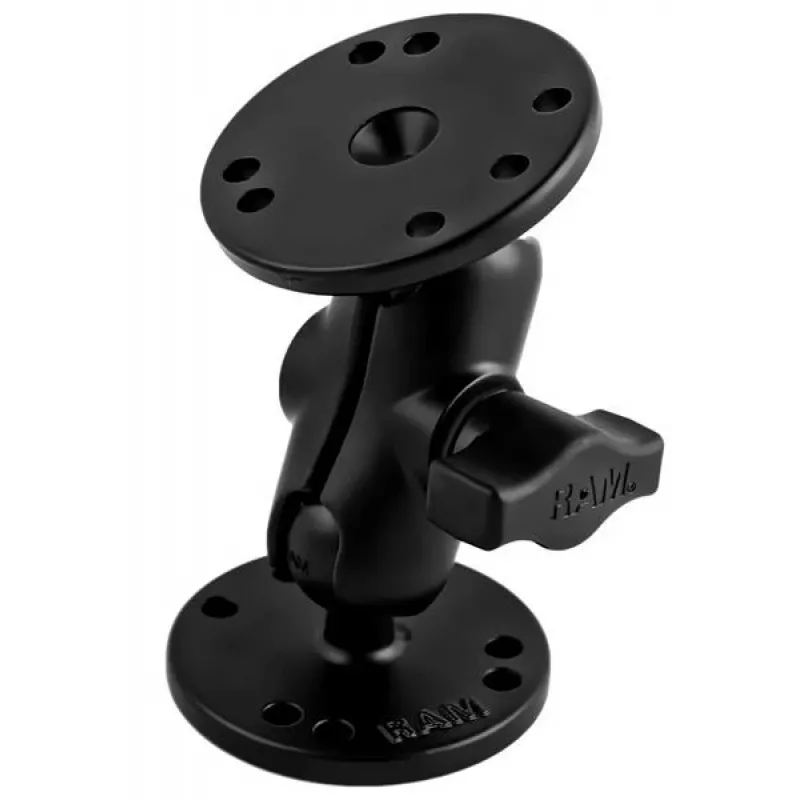

RAM MOUNTS B-Size krátke montážne rameno + 2x B-Size 1.0 guľová okrúhla základňa 2.5

The RAM MOUNTS B-Size Short Mounting Arm with two 2.5-inch round bases offers a compact and robust mounting solution for a variety of devices. Designed for the RAM B-Size (1-inch) ball and socket system, this kit provides secure and adjustable positioning for tablets, smartphones, and other electronics in demanding environments.

Advantages

Constructed from powder-coated marine-grade aluminum, this mounting arm delivers exceptional durability and corrosion resistance, making it ideal for marine, automotive, and industrial use. The double socket arm allows for multi-angle articulation, ensuring your device is positioned exactly where you need it. The included round bases feature an AMPS hole pattern for easy installation on flat surfaces.

Suitable for

• Universal tablet and smartphone mounting
• Marine and boating applications
• Vehicle cabins and dashboards
• Workshops and industrial settings
• Any environment requiring a rugged, adjustable mount

Key specifications

• Mounting System: Ball & Socket (B-Size 1-inch ball)
• Socket Arm Length (Center to Center): 5.69 inches (14.45 cm)
• Socket Arm Type: Double Socket Arm
• Base Type: Round Base, 2.5 inches (6.35 cm) diameter
• Number of Bases Included: 2
• Material: Powder Coated Marine-Grade Aluminum
• Color: Black
• Weight Capacity: Up to 2 lbs (0.91 kg)
• Mounting Pattern: AMPS 4-hole pattern
• Included Components: 1x Long Double Socket Arm, 2x 2.5" Round Bases with 1" Ball

Recommendations

For optimal performance, pair this mounting arm with RAM B-Size compatible device holders and accessories. Ensure the mounting surface is clean and secure before installation. This product is designed for standard use and should not be used to support devices exceeding the weight capacity.
