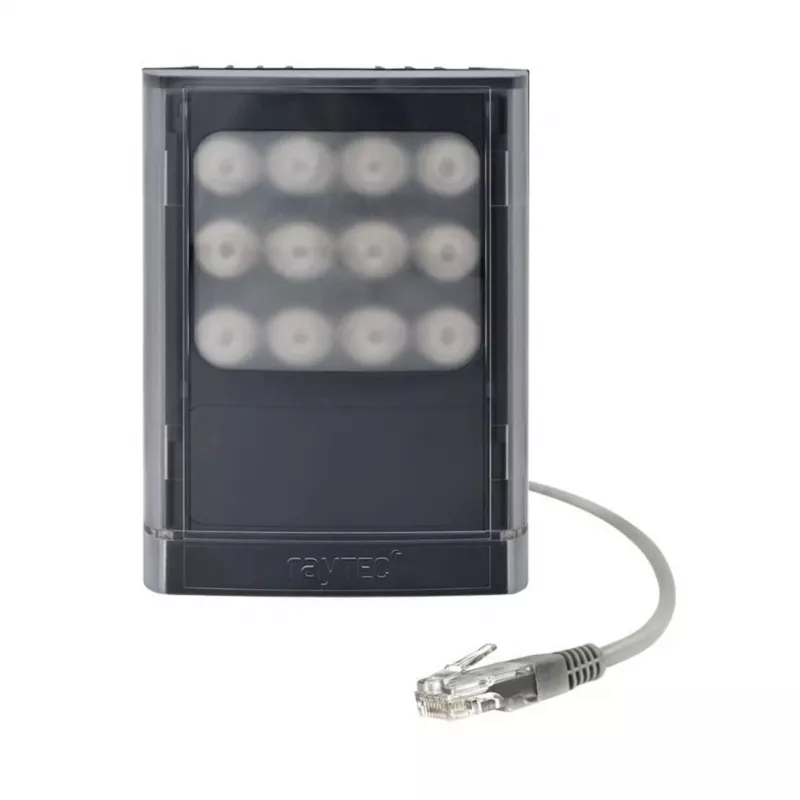

Raytec VARIO2 PoE IR LED jednotka čierna 144m IP66 UK káblová

The Raytec VARIO2 PoE IR LED Unit is a high-performance infrared illuminator designed for professional surveillance applications. Powered by Power over Ethernet (PoE), it delivers up to 144 meters of IR range at 850nm, ensuring clear night-time imaging. The unit features an adjustable beam angle via interchangeable VARIO lenses, with a standard 10° lens included for maximum range. Housed in a durable aluminium enclosure with IP66 rating, it operates reliably in extreme temperatures from -50°C to +50°C. Integrated photocell and telemetry input provide intelligent control, while the included wall/ceiling mount bracket simplifies installation. This wired unit is ideal for IP camera systems requiring seamless integration and low maintenance.

Advantages

PoE simplifies cabling and reduces installation costs. The 144m range covers large areas with a single unit. Adjustable lenses offer flexibility for different field of views. Rugged design ensures long-term outdoor reliability.

Suitable for

• Outdoor CCTV and IP camera systems
• Perimeter security and large area surveillance
• Industrial and commercial sites
• Low-light environments requiring IR illumination

Key specifications

• Illumination Type: Infrared (IR) at 850nm
• Max IR Range: 144 m (472 ft)
• Power Input: Power over Ethernet (PoE) IEEE 802.3af/at
• Max Power Consumption: 15W
• Beam Angle: Adjustable via interchangeable VARIO lenses (10° standard)
• Ingress Protection: IP66
• Housing Material: High-grade aluminium
• Colour: Black
• Operating Temperature: -50°C to +50°C
• Control: Integrated photocell, telemetry input
• Mounting: Wall/ceiling mount bracket included
• Connectivity: Wired

Recommendations

For optimal performance, pair with a compatible PoE switch or injector. Use the VARIO lens kit to adjust beam angle to match camera field of view. Ensure proper mounting height and alignment for maximum coverage.
