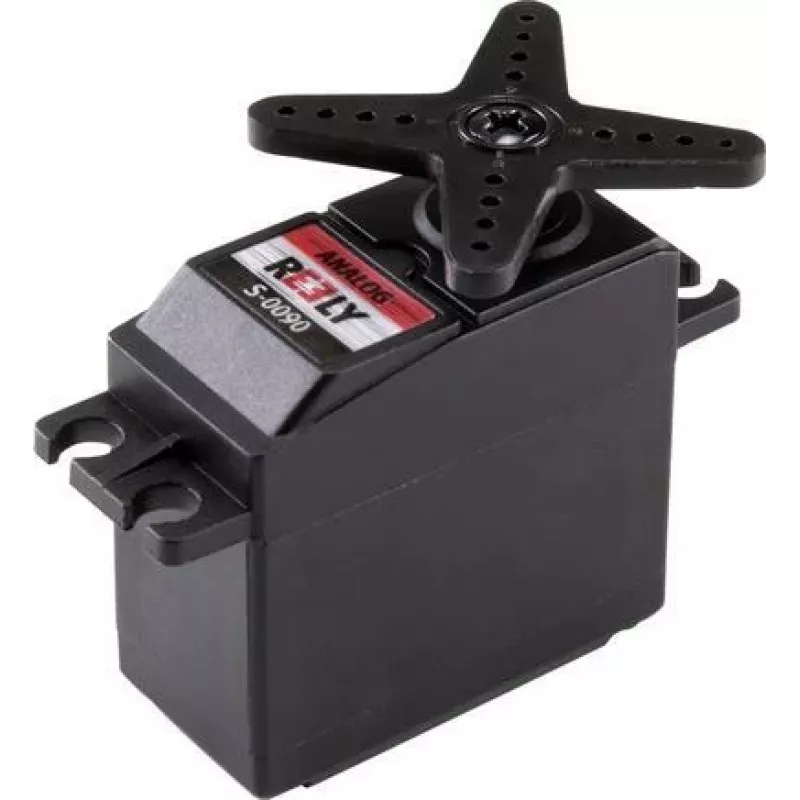

Reely CYS-S0090 analógové servo kovové prevody JR konektor RE-6609273

With a stall torque of 11.5 kg/cm at 6V, this analog servo delivers the muscle needed for demanding RC models.

Overview

The Reely CYS-S0090 is a standard-size analog servo engineered for hobbyists who demand reliability and strength. Its metal gear train ensures durability under load, while the JR-style connector makes it compatible with a wide range of receivers.

What stands out

• Metal gears for long-lasting performance
• High torque output for cars, boats, and aircraft
• Ball bearing support for smooth operation
• JR connector system for broad compatibility

Technical details

• Servo Type: Analog
• Gear Material: Metal
• Connector System: JR
• Operating Voltage: 4.8 - 6 V
• Stall Torque (4.8V): 9.5 kg/cm
• Stall Torque (6V): 11.5 kg/cm
• Speed (4.8V): 0.16 sec/60°
• Speed (6V): 0.14 sec/60°
• Bearing Type: Ball Bearing
• Motor Type: Brushed
• Cable Length: Approx. 300 mm
• Housing Material: Plastic
• Control System: PWM
• Output Shaft Spline: 25T (Futaba Compatible)

Our verdict

A robust, high-torque servo that punches above its class, ideal for hobbyists upgrading their RC fleet.
