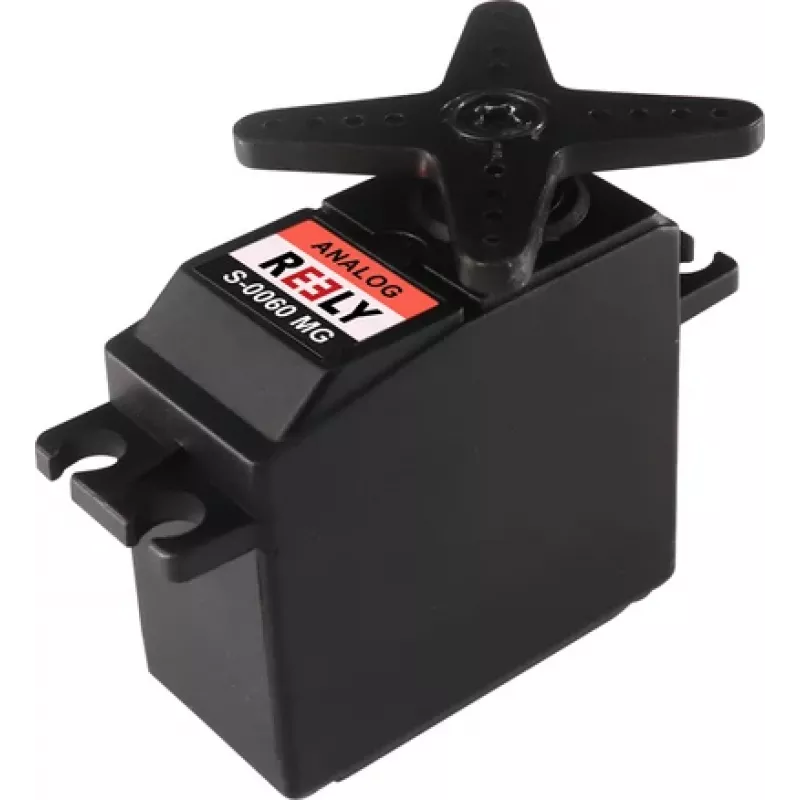

Reely Standard-Servo S-0060 MG analógové servo kovové prevody JR konektor RE-6605913

With a stall torque of 6.5 kg/cm at 6 V, the Reely S-0060 MG delivers the muscle that demanding RC models need. This standard-size analog servo uses a metal gear train for durability and a dual ball bearing output shaft for smooth, precise movement.

Overview

The Reely Standard-Servo S-0060 MG is an analog servo designed for RC cars, boats, and aircraft. It operates on 4.8–6 V DC and connects via a JR-style plug. The plastic housing keeps weight low, while the metal gears handle high loads without stripping.

What stands out

• Metal gear train resists wear and impact
• Dual ball bearings reduce friction and improve centering
• High torque output for standard-size servos
• JR connector fits most modern receivers

Technical details

• Servo type: Analog
• Servo size: Standard
• Gear material: Metal
• Operating voltage: 4.8–6 V DC
• Stall torque: 5.5 kg/cm at 4.8 V, 6.5 kg/cm at 6 V
• Operating speed: 0.18 sec/60° at 4.8 V, 0.16 sec/60° at 6 V
• Bearing: Dual ball bearing
• Motor: Brushed DC
• Connector: JR
• Housing: Plastic
• Control system: PWM, 20 ms cycle, 1000–2000 µs pulse width

Our verdict

A reliable workhorse servo with metal gears and ball bearings at a competitive price. Ideal for hobbyists who need dependable performance without breaking the bank.
