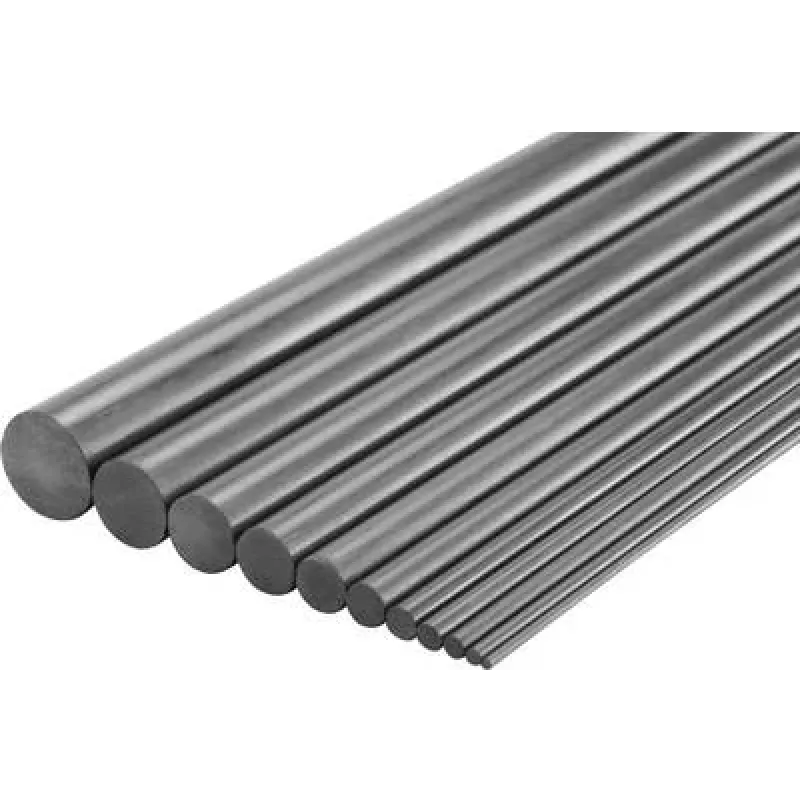

Reely Uhlíková tyč 3 mm x 1000 mm (1 ks) 1416543

The Reely carbon rod in 3 mm diameter and 1000 mm length is a solid pultruded carbon fibre profile that stands out for its high tensile strength and low weight. It is intended for model building, RC hobbies, robotics, and similar lightweight structural applications.

Highlights

• Solid carbon fibre rod, 3 mm diameter and 1000 mm long
• Pultruded CFRP with smooth surface finish
• High tensile strength (>3000 MPa) and high modulus of elasticity (>200 GPa)
• Low density (1.75 g/cm³) for lightweight construction
• Electrically conductive and resistant to most acids, bases, and solvents

In daily use

The rod is easy to cut to length and can be bonded or clamped into place. Its stiffness and low weight make it suitable for pushrods, wing spars, frame reinforcements, and custom linkages. The black carbon finish is typical for pultruded carbon profiles.

Full specifications

• Material: Carbon fibre (CFRP)
• Product type: Solid rod
• Diameter: 3 mm
• Length: 1000 mm
• Quantity per pack: 1 piece
• Colour: Black
• Density: 1.75 g/cm³
• Tensile strength: >3000 MPa
• Modulus of elasticity: >200 GPa
• Thermal expansion coefficient: <1 x 10^-6 /K
• Electrical conductivity: Electrically conductive
• Chemical resistance: Good (resistant to most acids, bases, and solvents)
• UV resistance: Moderate (requires coating for prolonged outdoor exposure)
• Temperature resistance: Up to 200 °C (continuous use)
• Surface finish: Smooth
• Manufacturing process: Pultruded
• Weight per meter: 12.4 g/m

Final note

The Reely carbon rod offers a high stiffness-to-weight ratio for demanding lightweight builds. Its pultruded construction provides consistent mechanical properties along the entire length.
