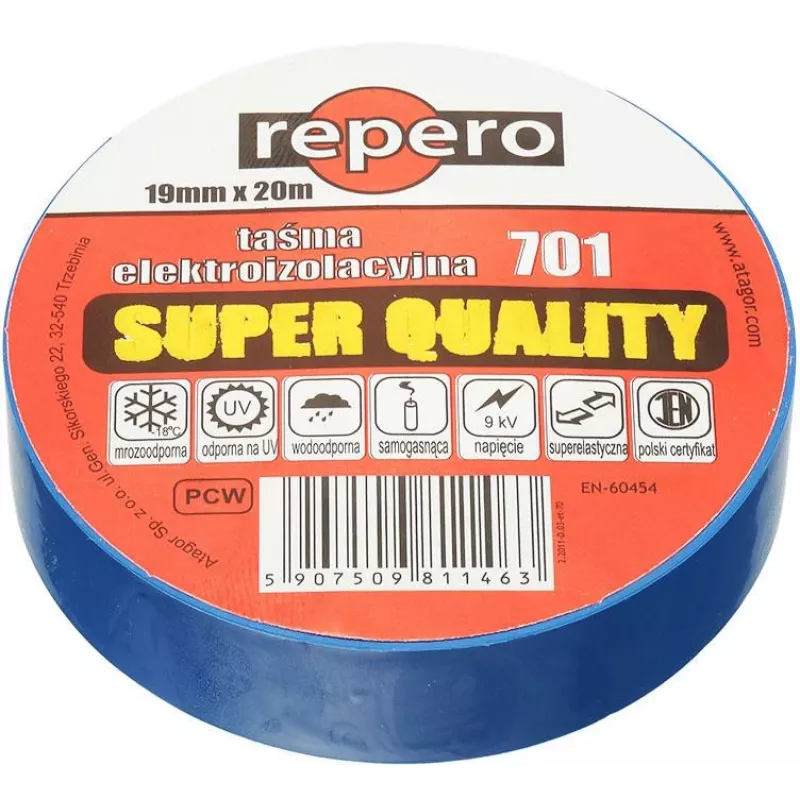

REPERO 701 modrá PVC izolačná páska 19 mm x 20 m

Damaged wiring and exposed conductors are a serious safety hazard, risking short circuits, electric shocks, and even fires. REPERO 701 blue PVC electrical insulation tape provides a reliable, professional-grade solution for insulating, bundling, and color-coding electrical connections. Its high-quality PVC backing offers excellent dielectric strength and flame-retardant properties, ensuring safe and durable insulation in a wide range of electrical work.

Who is it for

This tape is ideal for electricians, maintenance technicians, DIY enthusiasts, and anyone working with low-voltage electrical installations, repairs, or cable management. It is also suitable for color-coding wires and cables for easy identification.

Main features

• Premium PVC material with a thickness of 0.15 mm for robust insulation
• High dielectric strength (>40 kV/mm) and breakdown voltage (>6 kV) for safety up to 600 V
• Flame-retardant and self-extinguishing to reduce fire risk
• Excellent adhesion to steel (1.8 N/10mm) and good tensile strength (20 N/10mm)
• Elongation at break of 180% allows conformability around irregular shapes
• Operating temperature range from -10°C to +80°C for versatile use
• Blue color ideal for phase identification and color-coding
• Complies with IEC 60454-3-1 Type 5 standard

Specifications

• Brand: REPERO
• Model: TTE701S3-0019-20
• MPN: TTE701S3-0019-20
• EAN: 5907509810466
• Product type: Electrical insulating tape
• Material: PVC
• Colour: Blue
• Tape width: 19 mm
• Tape length: 20 m
• Tape thickness: 0.15 mm
• Maximum voltage rating: 600 V
• Dielectric strength: >40 kV/mm
• Breakdown voltage: >6 kV
• Operating temperature range: -10°C to +80°C
• Adhesion to steel: 1.8 N/10mm
• Tensile strength: 20 N/10mm
• Elongation at break: 180%
• Flame retardant: Yes
• UV resistance: Moderate
• Core diameter: 38 mm
• Application: Electrical insulation, bundling, color-coding, protection
• Standard compliance: IEC 60454-3-1 Type 5

Tips

For best results, ensure surfaces are clean and dry before application. Stretch the tape slightly while wrapping to achieve a tight, secure seal. Store in a cool, dry place away from direct sunlight to maintain adhesive quality.
