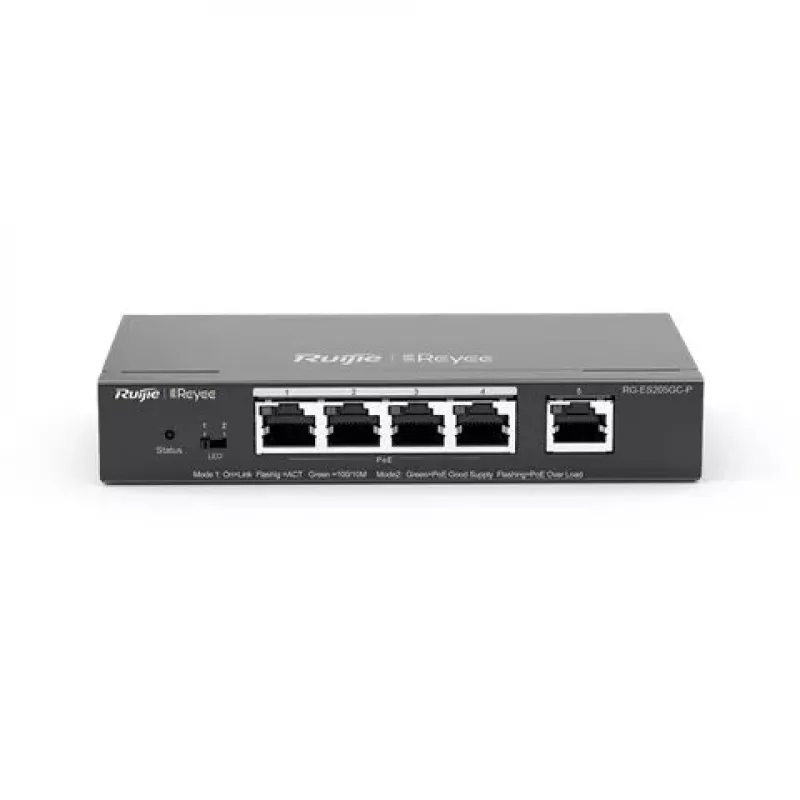

Managed switch Ruijie Networks RG-ES205GC-P L2 Gigabit Ethernet PoE 5 portov

The Ruijie Networks RG-ES205GC-P L2 Gigabit Ethernet PoE 5 Ports is a managed switch designed for small networks requiring reliable wired connectivity and centralized control. It provides five Gigabit Ethernet (10/100/1000) RJ-45 ports with Power over Ethernet support, enabling combined data and power delivery to connected devices. With a switching capacity of 10 Gbit/s and compliance with IEEE 802.3at and IEEE 802.3af standards, this compact unit supports efficient traffic handling and PoE-powered endpoints such as access points and IP cameras.

Advantages

The managed design offers configuration options and monitoring functions for traffic segmentation, VLANs and access control while keeping a compact footprint that fits in office or edge deployments. Integrated PoE reduces the need for separate power supplies for compatible devices, simplifying installations and lowering cabling complexity. Gigabit RJ-45 ports provide full-speed connectivity for wired clients and uplinks, and the switch’s switching capacity supports simultaneous transfers across ports.

Suitable for (tasks / use cases)

• Small office and home office wired networks
• Powering and connecting wireless access points and VoIP phones
• Edge deployments for IP surveillance cameras
• Network segmentation with VLANs for departmental isolation
• Compact wiring closets and point-of-entry network aggregation

Key specifications

• Port type: 5 × Gigabit Ethernet (10/100/1000) RJ-45 ports
• Switch type: Managed L2 switch
• PoE standards supported: IEEE 802.3at (PoE+), IEEE 802.3af (PoE)
• Switching capacity: 10 Gbit/s
• Weight: 0.9 kg

How to use

Install the switch on a stable surface or in a small rack space and connect the uplink port to your network router or core switch using standard Ethernet cabling. Attach PoE-capable devices such as access points or IP cameras to any of the Gigabit RJ-45 ports; the switch will deliver data and power over the same cable when PoE is enabled. Use the management interface to configure VLANs, QoS, port settings and security policies according to your network design. Ensure firmware is kept up to date for feature improvements and security fixes.

Recommendations

For reliable PoE delivery, verify the power budget available on the switch and confirm connected devices’ PoE class. Place the switch in a ventilated area and use CAT5e or better cabling for Gigabit performance. Use the management features to segment traffic and prioritize critical services to maintain network performance.
