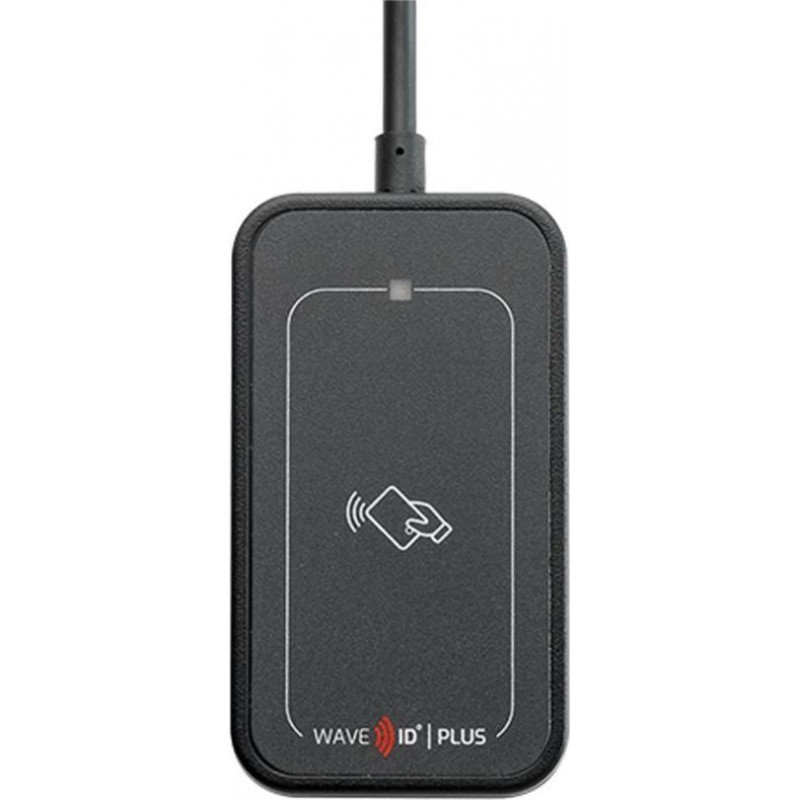

RF IDeas WAVE ID Plus Mini SDK iClass ID/SE/SEOS čierna USB čítačka

Secure contactless card reading is a critical component in modern access control and identity verification systems. The RF IDeas WAVE ID Plus Mini SDK reader delivers reliable, high-performance reading of HID iCLASS, iCLASS SE, and Seos credentials in a compact desktop form factor. Its USB connectivity and keyboard emulation make it ideal for integrating into existing software applications without complex drivers.

Who is it for

This reader is designed for developers and system integrators who need to add card-based authentication to their applications. It is also suitable for enterprises upgrading to higher security credentials like iCLASS SE and Seos, as well as for healthcare, government, and corporate environments where secure logical access is required.

Main features

• Reads HID iCLASS, iCLASS SE, iCLASS SEOS, and Seos credentials
• USB interface with keyboard emulation, HID, and CDC modes
• Mini desktop form factor with black ABS housing
• Dual-color LED and audible beeper for user feedback
• Powered via USB, no external adapter needed
• Compatible with Windows, macOS, Linux, and Android
• Includes RF IDeas Universal SDK for custom integration
• Firmware upgradable via USB

Specifications

• Frequency: 13.56 MHz
• Supported technologies: iCLASS ID, iCLASS SE, Seos, MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, FeliCa, PIV, CAC, TWIC
• Read range: up to 2.5 inches (6.35 cm)
• Interface: USB (Keyboard Emulation, HID, CDC)
• Operating systems: Windows, macOS, Linux, Android
• Power: USB bus powered
• Operating temperature: 0°C to 60°C (32°F to 140°F)
• Operating humidity: 5% to 95% non-condensing
• Housing material: ABS plastic
• Certifications: FCC, CE, IC, RoHS, WEEE
• Cable length: 1.5 m (5 ft)
• Dimensions: 2.5 x 1.5 x 0.7 inches (63.5 x 38.1 x 17.8 mm)
• Weight: 0.1 lb (45 g)

Tips

For best performance, position the card within 2.5 inches of the reader. The reader is plug-and-play with keyboard emulation, but for advanced features, install the RF IDeas Universal SDK. Use the included adhesive pad for secure mounting on a desk or kiosk.
