RGB splitter kábel EK Water Blocks EK-D-RGB 6-násobný D-RGB splitter kábel

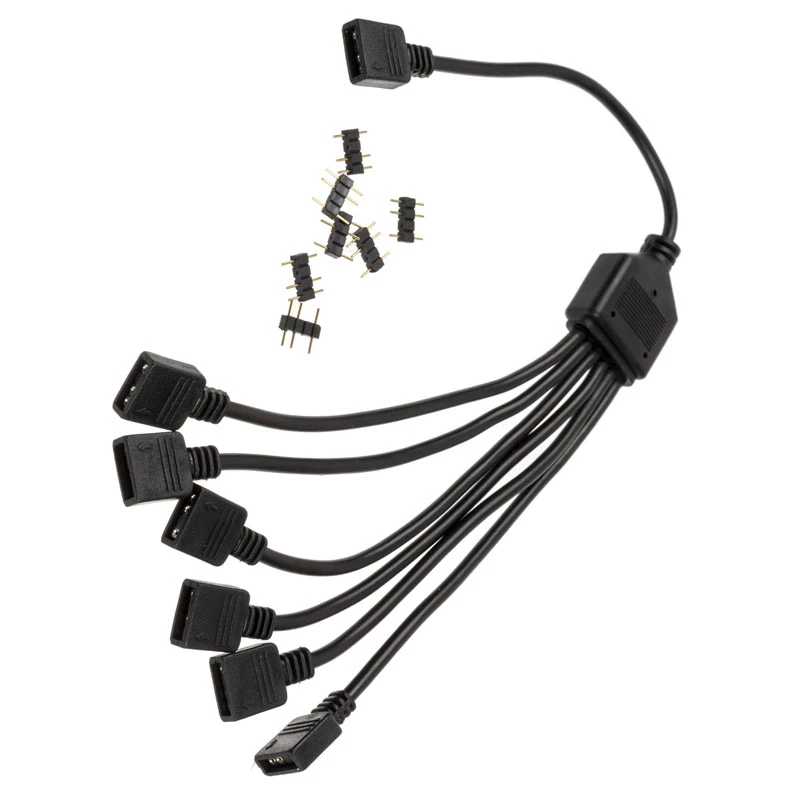

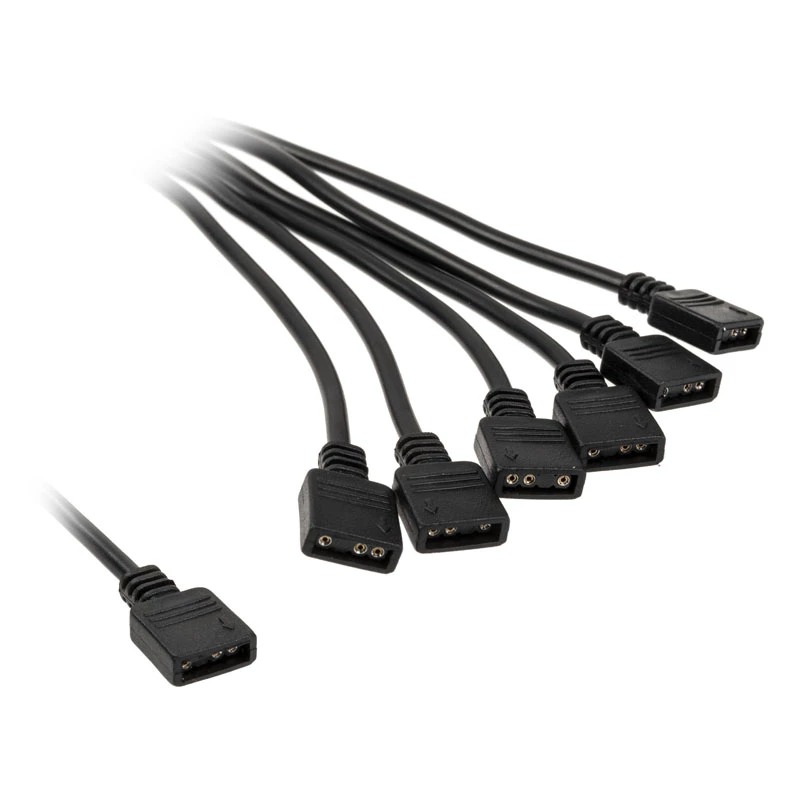

The EK-D-RGB 6-Way Splitter Cable allows connection of up to six digitally addressable RGB devices to a single 3-pin 5V D-RGB (addressable) motherboard or controller header. The cable uses standard 3-pin D-RGB connectors and includes male-to-male connector pins in the package. An arrow marking on each 3-pin connector indicates the alignment with the +5V marking on the D-RGB header.

Advantages

This splitter enables synchronized control of multiple D-RGB products from a single header, reducing the need for extra controllers. It uses standard 3-pin 5V D-RGB connectors for broad compatibility with major motherboard RGB sync technologies. The included male-male connector pins simplify installation and ensure proper connection alignment.

Suitable for

• Connecting multiple addressable RGB strips, fans, or LED devices to one 3-pin 5V D-RGB header
• PC builders and gamers expanding RGB lighting without additional controllers
• Synchronizing lighting effects across several D-RGB components

Key specifications

• Connector type: 3-pin 5V D-RGB (addressable) connectors
• Number of outputs: 6-way splitter
• Includes: male-to-male connector pins
• Cable color: black

How to use

Align the arrow on each 3-pin connector with the +5V marking on the motherboard or controller D-RGB header and plug the splitter into the header. Connect up to six compatible D-RGB devices to the splitter outputs. After connection, configure and synchronize the devices using the motherboard or controller RGB software according to the manufacturer instructions.

Recommendations

Refer to your motherboard or RGB controller manual for LED type compatibility, maximum power load and maximum allowed LED strip length. Do not exceed the controller or header power specifications; if needed, use an external powered hub or separate controller to avoid overloading the header.
