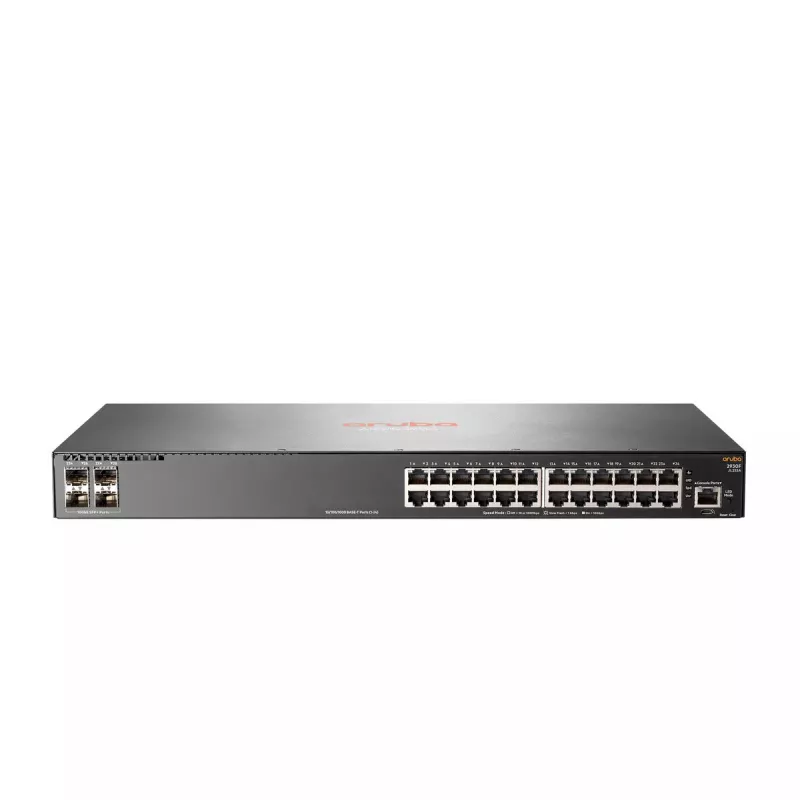

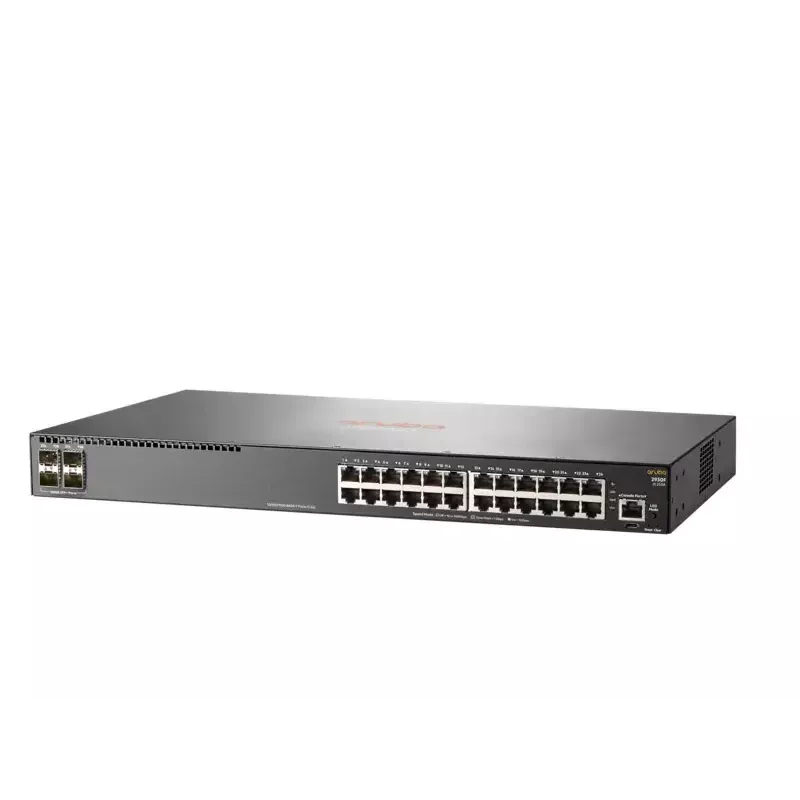

Riadený switch HPE Aruba 2930F 24G 4SFP+

The Aruba 2930F Switch Series is a family of Layer 3 access switches designed for digital workplaces and mobile users in enterprise edge, SMB and branch office networks. These switches deliver routing capabilities, PoE+ power for access devices, and support for Aruba management tools such as ClearPass Policy Manager, AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) enables stacking of multiple units into a single logical device, while built-in 1GbE or 10GbE uplinks and support for up to 740W of PoE+ provide flexible connectivity and power options without additional software licensing.

Advantages

The Aruba 2930F offers a combination of Layer 3 routing (RIP, Access OSPF and static routes), robust QoS, and high PoE+ capacity to power APs, cameras and phones. VSF stacking simplifies management by virtualizing up to eight switches into one logical system. Integration with Aruba ClearPass, AirWave and Aruba Central enables unified wired and wireless policy enforcement and centralized monitoring, while hardware optimizations deliver low latency and increased packet buffering for improved performance at the network edge.

Key specifications

• Layer: L3 access switch.
• Routing: RIP, Access OSPF, static routing.
• Uplinks: Built-in 1GbE or 10GbE options.
• Stacking: Virtual Switching Framework (VSF) — up to 8 switches.
• Power over Ethernet: Up to 740W internal PoE+ support (model-dependent).
• Management and security: Aruba ClearPass Policy Manager, Aruba AirWave, Aruba Central, 802.1X, MAC and Web authentication.
• Monitoring: RMON, sFlow.
• Licensing: No additional software licensing required for core features.

How to use

Install the Aruba 2930F in the network edge or wiring closet and connect access devices using the built-in Ethernet ports and uplinks. Use VSF to stack multiple switches when higher port density or simplified single-point management is required. Integrate with Aruba ClearPass, AirWave or Aruba Central for centralized policy enforcement, device onboarding and monitoring. Configure routing (RIP, Access OSPF or static routes), QoS and PoE priorities according to network design and device power requirements.

Recommendations

For deployments with multiple access switches, enable VSF to reduce management overhead and improve failover. Use Aruba ClearPass for consistent wired and wireless access policies and enable RMON/sFlow monitoring to collect traffic statistics and events. Verify PoE budget per switch model before connecting power-hungry devices to ensure sufficient power for all endpoints.
