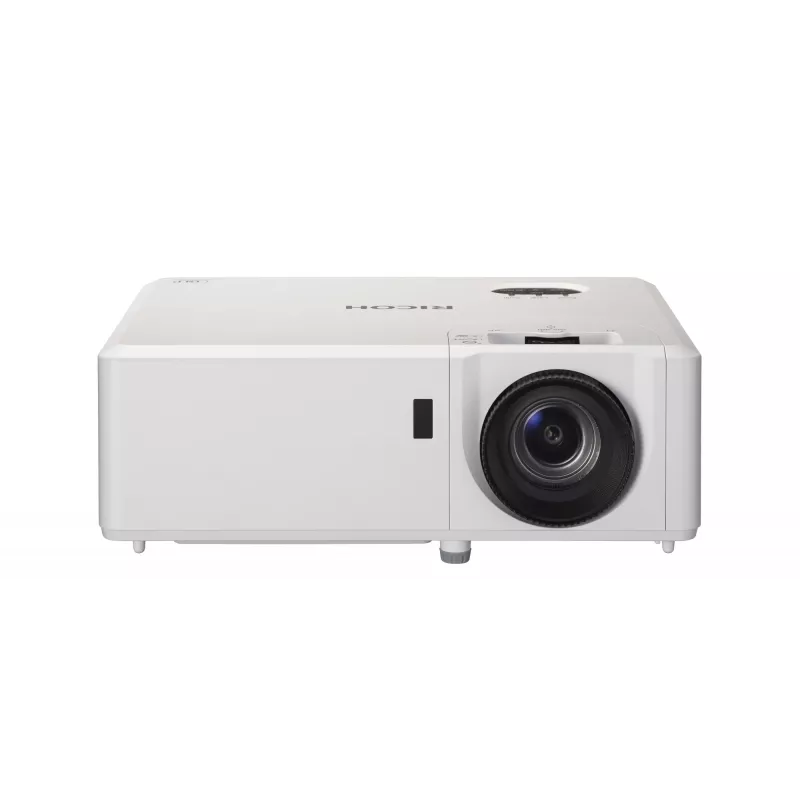

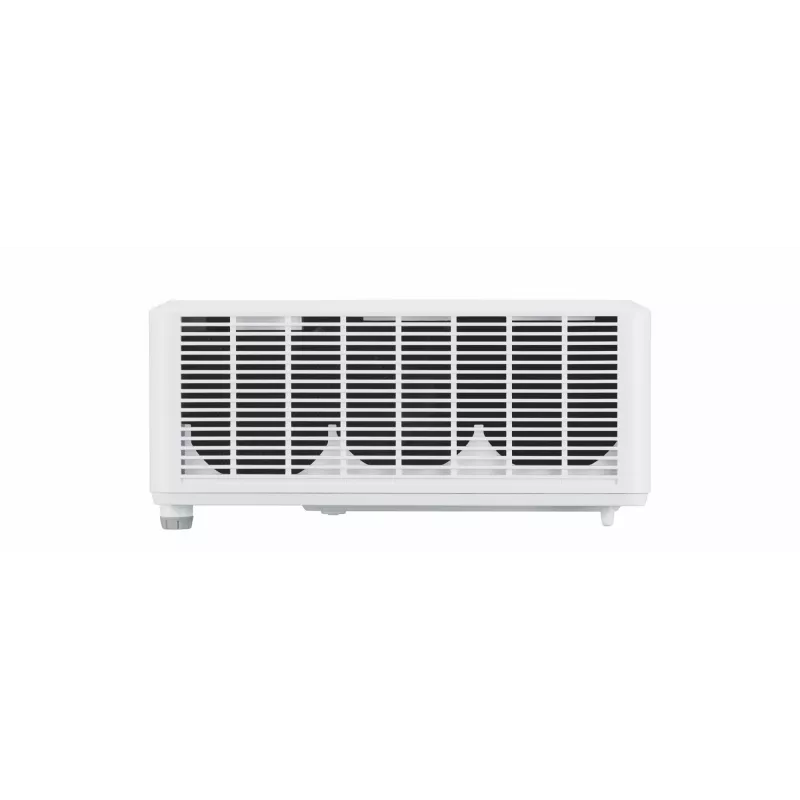

Ricoh PJ WUL5860 4000 ANSI Lumen DLP WUXGA (1920x1200) biela

Projecting high quality, even in small spaces

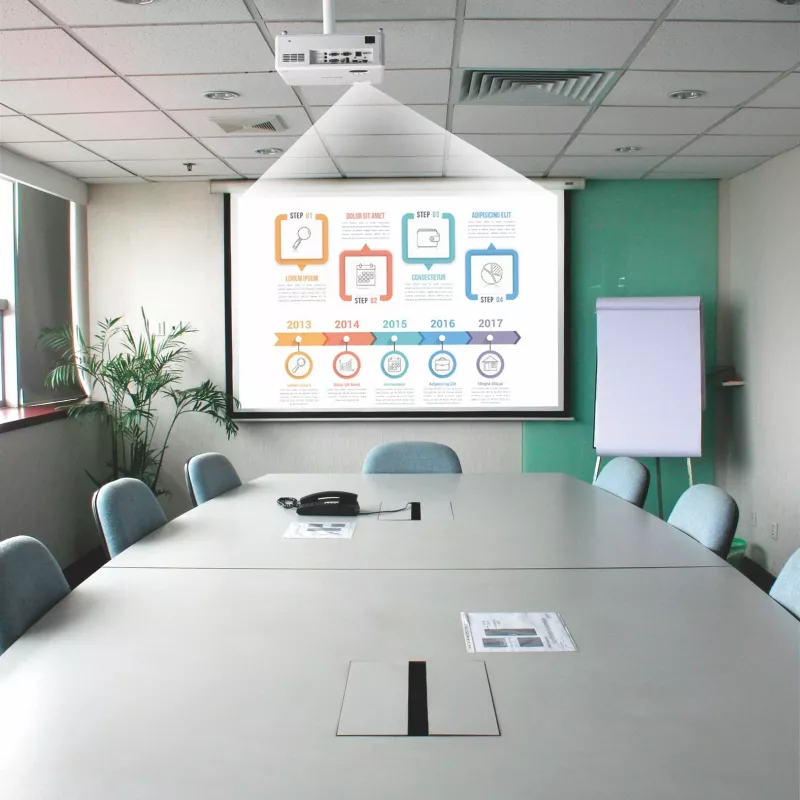

Ricoh compact laser projector in a meeting roomCompact and Portable Design
At just 4.3 kg (PJ WXL5860 model) and 4.6kg (PJ WUL5860 model) in weight and with a footprint of only 337 x 265 x 108mm, RICOH Compact Laser Projectors provide a versatile, short throw day-to-day solution for smaller presentation spaces.

Multi-Module Laser Light Source
The multi-module structure laser light source supports continuous operation for 7 x 24 hours and outputs a stable brightness of 4000-4700lm (subject to model). The laser beam is produced by multiple laser diodes, increasing reliability. It offers three laser power modes: Normal, Eco, and Image ECO. The Image ECO mode can dynamically adjust power consumption based on image brightness, extending the life of the laser diode.

High Image Quality and Wide Colour Gamut
These DLP projectors use RICOH's unique NCE natural colour gain technology, efficiently covering over 92% of the Rec.709 colour gamut range and delivering natural and realistic colours.

20,000 Hour-Long Life
The laser light source has a long life of 20,000 hours, which is 6-7 times the life of a typical projector bulb source.

Quick start-up
Full brightness is achieved within seconds of turning the projector on. The light will also turn off as soon as the unit is powered off.

4K Signal Compatible Display
The PJ WUL5860 and PJ WXL5860 models are compatible with 3840x2160HZ, which means they can directly play 4K resolution format audio and video content.

Horizontal and Vertical Keystone/Four Corners Correction
Complex or uneven installation surfaces can cause distortion of the image. The four corners correction function can adjust each corner of the projection screen separately, supplemented by horizontal and vertical keystone adjustment, delivering a rectangular final image.

Vertical Lens Shift
The +10% (PJ WUL5860) and +12.4% (PJ WXL5860) vertical lens adjustment ranges make these models easier to ceiling-mount, enabling image adjustment without moving the unit.

IP6X Dust-Proof Design
Dust is a key factor affecting the life of a projector. The fully closed optical engine in both models meets the IP6X dust-proof standard, effectively eliminating image speckle, brightness decline, and projector life decline that dust can cause, as well as significantly reducing the cost of maintenance and consumables.

HDMI2.0
The HDMI2.0 interface expands bandwidth to 18GBps, achieving a refresh rate of 50/60Hz in 4K image transmission – about twice that of HDMI1.4. This makes playback lively, smooth and much gentler to the human eye.

360-degree Installation and Portrait Orientation Support
The PJ WUL5860 and PJ WXL5860 projectors can be installed to project through 360 degrees, making them highly flexible, reducing installation limitations and greatly expanding the application range.

Supports DICOM SIM medical mode
Equipped with DICOM SIM (Digital Imaging and Communications in Medicine Simulation), these models are suitable for projecting monochromatic medical images, such as X-ray films, MRI, and tomography images. Details of medical images can be presented to a wider audience in a large, high-definition format, ideal for medical education environments.

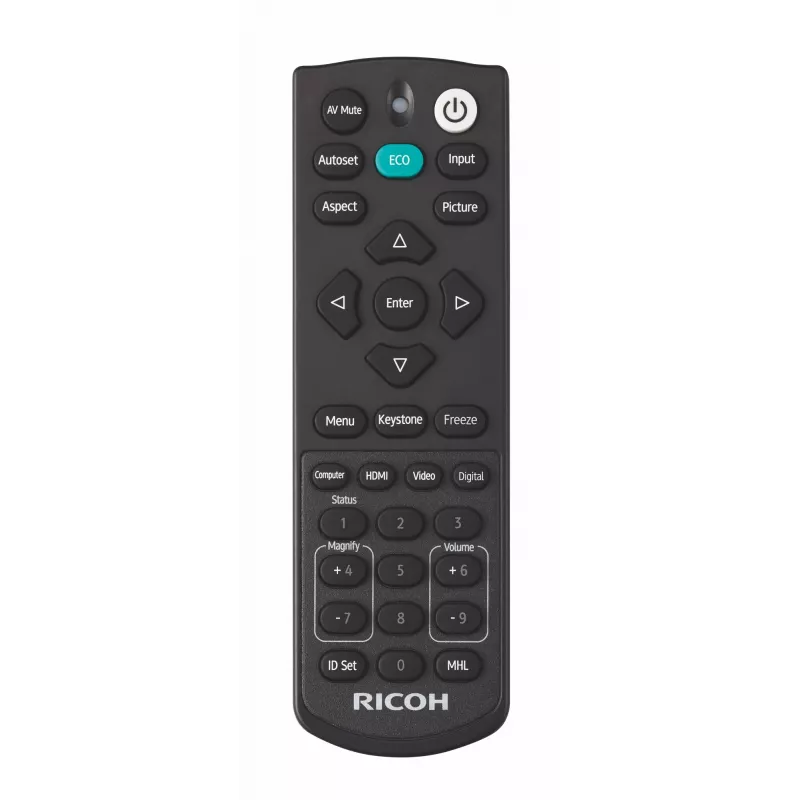

Customisable ID Remote Control
Up to 99 projectors can be assigned a separate ID and individually controlled, one at a time.

Mercury-free
The solid-state semiconductor laser light source used in the PJ WUL5860 and PJ WXL5860 models contains no harmful mercury elements – unlike many bulb projectors which use high voltage mercury lamps.

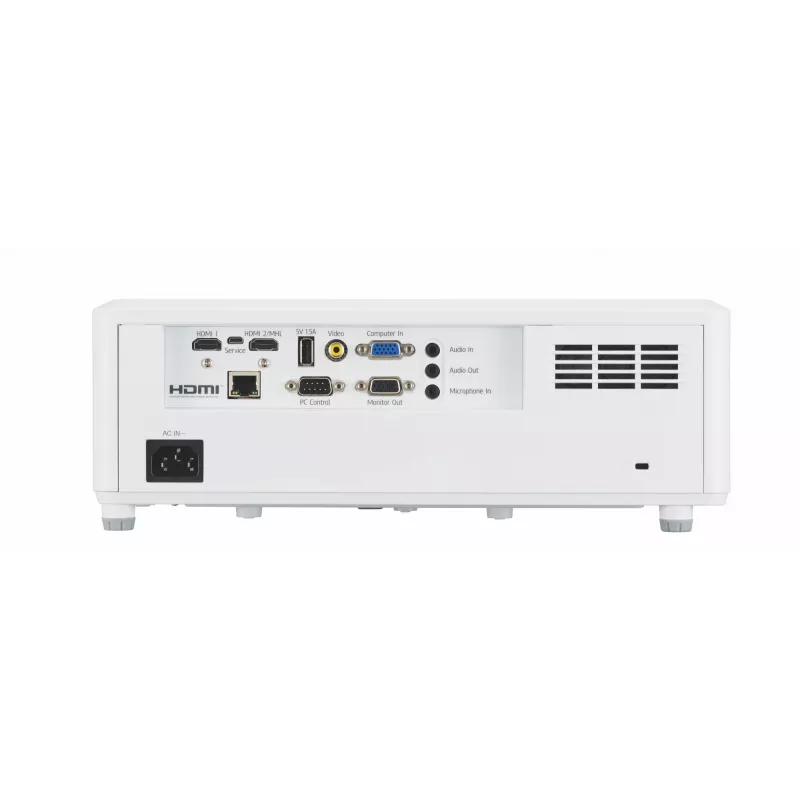

Ricoh PJ WUL5860. Projector brightness: 4000 ANSI lumens, Projection technology: DLP, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h. Focus: Manual, Focal length range: 12.815 - 16.74 mm, Aperture range (F-F): 1.94 - 2.23. Serial interface type: RS-232C, HDMI version: 1.4/2.0. Ethernet LAN data rates: 10,100 Mbit/s

How to use

Place or mount the projector according to the room layout and use the vertical lens shift and keystone/four‑corner correction to align the image without moving the unit. Connect video sources via HDMI (HDMI 2.0 recommended for 4K signals) or network/serial interfaces as required. Select an appropriate laser power mode (Normal, Eco, Image ECO) to match viewing conditions and extend diode life. For medical images, enable DICOM SIM mode to optimise monochrome contrast. Powering on provides full brightness within seconds and the light source switches off immediately when the unit is powered down.

Recommendations

For best long‑term performance, install the projector in a dust‑controlled environment, use the Image ECO mode when projecting mostly dark content to reduce power consumption, and assign IDs to individual units when controlling multiple projectors remotely.
