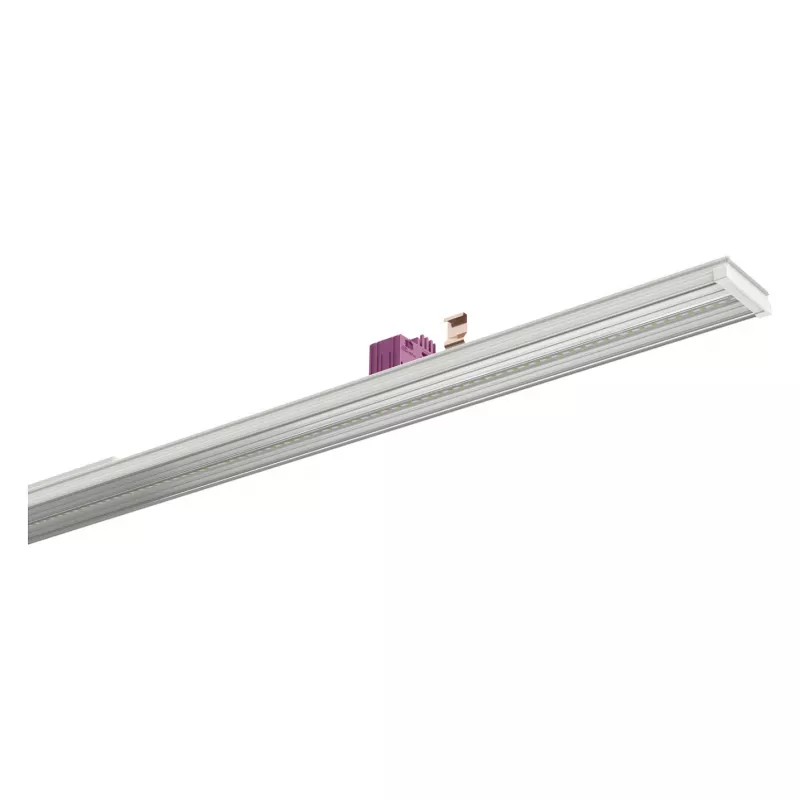

RIDI VL2S EVO LED Gear Tray s DALI-2, IP54, 8910 lm, 51 W, 4000K

Lighting installations in demanding environments often struggle with moisture, dust, and the need for precise control. The RIDI VL2S EVO LED gear tray solves these challenges by combining robust IP54 protection with advanced DALI-2 dimming and high luminous efficacy. Designed as a luminaire insert for the RIDI VL2S continuous-row trunking system, it delivers 8910 lumens of neutral white light while consuming only 51 watts, making it an efficient and reliable solution for industrial, commercial, and technical spaces.

Who is it for

This gear tray is ideal for electricians, facility managers, and lighting designers working on projects that require durable, controllable, and energy-efficient lighting. It suits applications in warehouses, production halls, parking garages, and other areas where IP54 protection and DALI-2 integration are essential.

Main features

• High luminous flux of 8910 lm with a system efficacy of 174.7 lm/W for excellent energy efficiency.
• Neutral white light at 4000 K with a colour rendering index >80 for accurate visual tasks.
• DALI-2 interface enables smooth, addressable dimming and integration into building management systems.
• IP54 rating protects against dust ingress and water splashes, ensuring reliable operation in harsh conditions.
• Long rated lifetime of L80/B10 at 50,000 hours reduces maintenance and replacement costs.
• Steel sheet housing provides durability and compatibility with RIDI VL2S trunking systems.

Specifications

• Product type: LED gear tray / luminaire insert
• Series: RIDI VL2S EVO
• Luminous flux: 8910 lm
• Power consumption: 51 W
• System efficacy: 174.7 lm/W
• Colour temperature: 4000 K (neutral white)
• Colour rendering index (CRI): >80
• Control interface: DALI-2
• Ingress protection: IP54
• Beam angle: Wide beam
• Light source: LED
• Rated lifetime: L80/B10 at 50,000 h
• Operating voltage: 220-240 V AC, 50/60 Hz
• Dimming: Yes, via DALI-2
• Housing material: Steel sheet
• Mounting: For RIDI VL2S continuous-row trunking system
• Ambient temperature range: -20 to +40 °C
• Protection class: I

Tips

For optimal performance, ensure the gear tray is correctly seated in the trunking profile and that DALI-2 addressing is configured according to the lighting control plan. Regular inspection of the IP54 seals is recommended in environments with high dust or moisture levels.
