Rittal 3455505 push-in svorkovnica pre okrúhle vodiče 0,5-4 mm², sivá

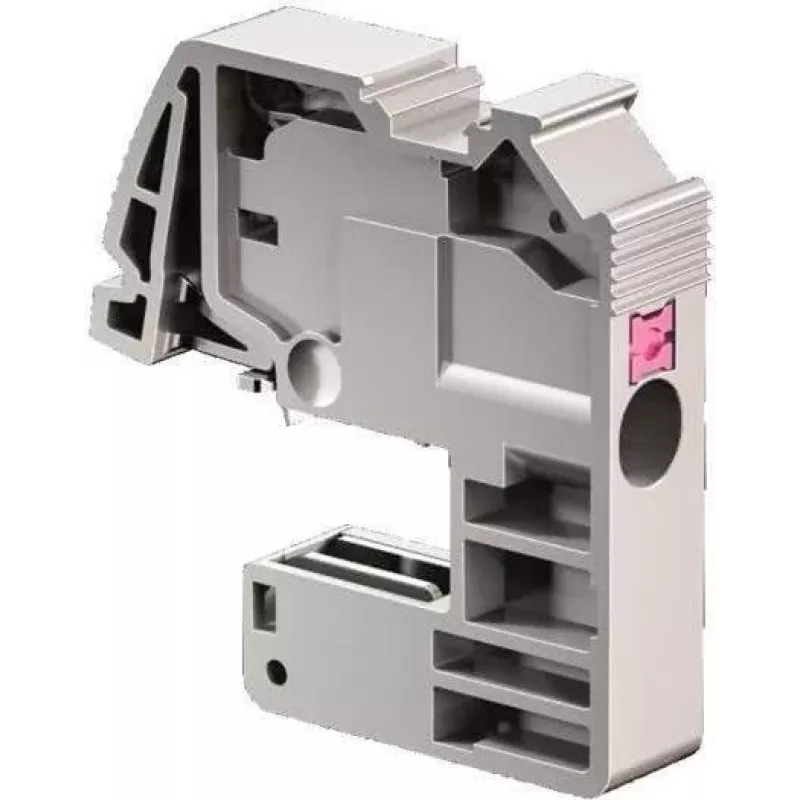

In control cabinets and distribution boards, electricians need a reliable way to connect round copper conductors without tools. The Rittal 3455505 push-in conductor connection terminal snaps onto a 10x3 mm busbar or mounting plate, accepting solid or stranded round conductors from 0.5 to 4 mm². Simply strip 10–12 mm of insulation and push the conductor in – the spring clamp holds it securely.

Key specifications

• Connection technology: Push-in
• Conductor type: Round conductors
• Conductor cross-section: 0.5–4 mm²
• Rated voltage: 800 V AC/DC
• Rated current: 32 A
• Number of poles: 1
• Mounting: Snap-on for 10x3 mm busbar or mounting plate
• Insulation material: Polyamide (PA 6.6)
• Contact material: Copper alloy, tin-plated
• Colour: Grey
• Operating temperature: -40 °C to +100 °C
• Protection category: IP20
• Flammability rating: UL 94 V-0
• Rated impulse voltage: 8 kV
• Stripping length: 10–12 mm
• Approvals: VDE, UL, CSA, EAC, cULus

Why choose it

The push-in connection eliminates the need for screwdrivers, speeding up wiring and reducing fatigue. The terminal is made of flame-retardant polyamide and tin-plated copper alloy for long-term conductivity. It is rated for 800 V and 32 A, making it suitable for many industrial control applications.

Ideal use cases

• Connecting round conductors in control cabinets
• Distribution boards and switchgear assemblies
• Retrofitting existing busbar systems

Good to know

The terminal is grey and designed for copper conductors only. It has a wide operating temperature range from -40 °C to +100 °C and carries VDE, UL, CSA, EAC, and cULus approvals.
