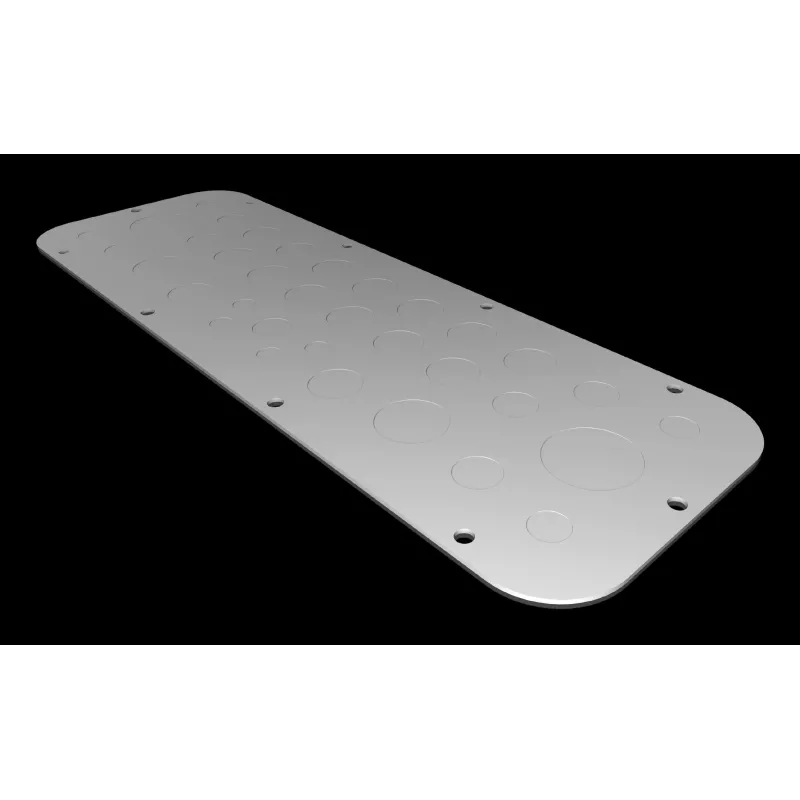

Rittal AX prírubová doska veľkosť 3, oceľový plech, pozinkovaná, 125 x 50 mm 2573100

This flange plate is specifically sized for Rittal AX enclosures, providing a clean cable entry point without compromising the enclosure's protection rating. It stands out from generic plates by being pre-cut to size 3 dimensions and finished with a zinc-plated surface for corrosion resistance.

Highlights

• Material: Sheet steel
• Surface finish: Zinc-plated
• Dimensions (W x H): 125 mm x 50 mm
• Thickness: 2 mm
• Protection category when installed: IP54
• Application: Cable entry
• Type: Flange plate
• Colour: Natural (zinc-plated)
• Size code: 3
• Mounting position: Top or bottom of enclosure

In daily use

The plate is installed on the top or bottom of a Rittal AX enclosure to allow cables to pass through while maintaining the enclosure's protection. The zinc-plated finish ensures durability in industrial environments.

Full specifications

• Material: Sheet steel
• Surface finish: Zinc-plated
• Dimensions (W x H): 125 mm x 50 mm
• Thickness: 2 mm
• Protection category when installed: IP54
• Application: Cable entry
• Type: Flange plate
• Colour: Natural (zinc-plated)
• Size code: 3
• Mounting position: Top or bottom of enclosure
• Customs tariff number: 73269098
• ETIM class: EC000211
• Packaging unit: 1 piece

Final note

A reliable cable entry solution for Rittal AX enclosures, made from zinc-plated sheet steel for long-lasting performance.
