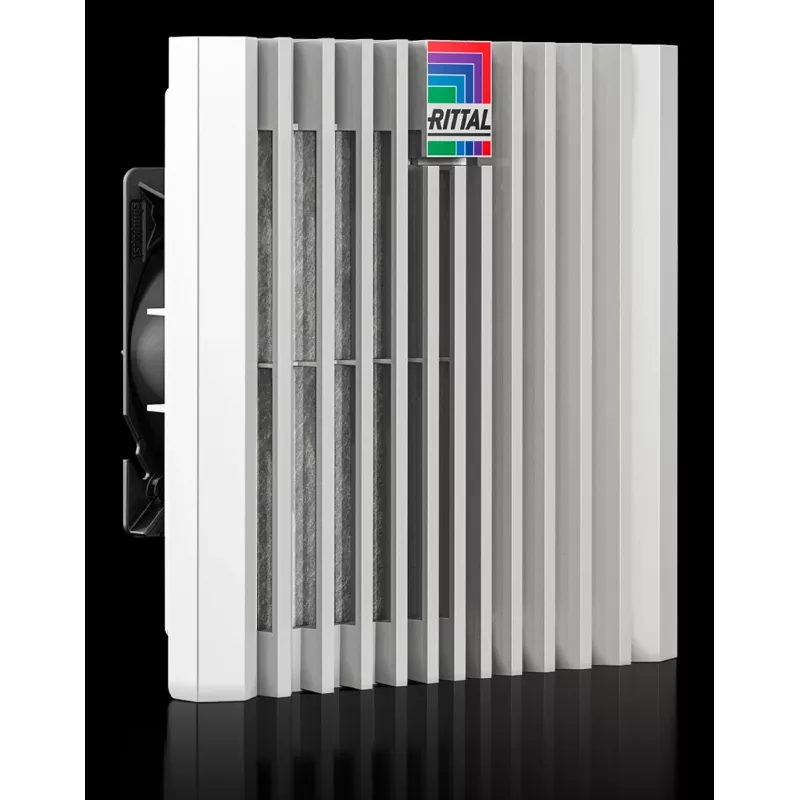

Rittal Blue e+ EMC filtračný ventilátor 100/115 m³/h RAL 7035 3239810

100 m³/h airflow at 50 Hz (115 m³/h at 60 Hz) with integrated EMC shielding for interference-free enclosure climate control.

Overview

The Rittal Blue e+ EMC Filter Fan delivers reliable cooling for electrical enclosures while maintaining electromagnetic compatibility. Rated at 230 V AC, it operates at 50/60 Hz with a power consumption of 18 W (50 Hz) or 17 W (60 Hz). The fan is built from an ABS/PC blend in light grey (RAL 7035) and mounts via a snap-on mechanism with a 124 x 124 mm cut-out.

What stands out

• EMC-shielded design prevents electromagnetic interference
• IP54 protection and NEMA 12 rating for dusty or wet environments
• Low noise: 46 dB(A) at 50 Hz, 49 dB(A) at 60 Hz
• Wide operating temperature range: -10 °C to +55 °C
• Approvals: UL/cUL, TÜV, EAC

Technical details

• Rated airflow: 100 m³/h (50 Hz), 115 m³/h (60 Hz)
• Rated voltage: 230 V AC; frequency: 50/60 Hz
• Rated current: 0.11 A (50 Hz), 0.10 A (60 Hz)
• Protection category: IP54; NEMA 12
• Material: ABS/PC blend; colour: RAL 7035
• Mounting: snap-on; cut-out: 124 x 124 mm
• Product line: TopTherm

Our verdict

A robust EMC-compliant filter fan for enclosures requiring reliable cooling and electromagnetic shielding.
