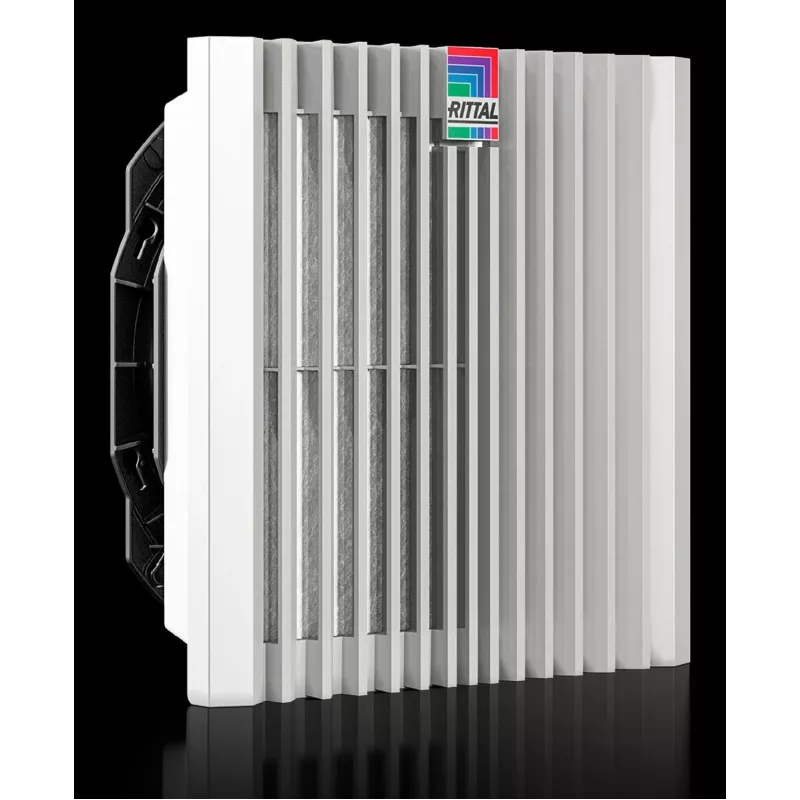

Rittal Blue e+ EMC filtračný ventilátor 175/157 m³/h 115 V RAL 7035 3240810

The Rittal Blue e+ EMC Filter Fan stands out by combining high airflow with integrated electromagnetic compatibility shielding, making it suitable for enclosures in environments where electromagnetic interference must be controlled. Unlike standard filter fans, this unit includes an EMC frame that helps maintain shielding effectiveness while providing reliable cooling.

Highlights

• Airflow: 175 m³/h unfiltered, 157 m³/h with filter
• Rated operating voltage: 115 V AC, 50/60 Hz
• Integrated EMC shielding frame
• Protection category IP54
• Colour: RAL 7035 (light grey)

In daily use

Designed for continuous operation, the fan delivers consistent airflow to dissipate heat from electrical enclosures. Its spring-type terminals simplify wiring, and the plastic housing offers durability. The fan operates within a temperature range of -10 °C to +55 °C, with a noise level of 60 dB(A).

Full specifications

• Product type: Filter fan
• Series: Blue e+
• Airflow (unfiltered): 175 m³/h
• Airflow (with filter): 157 m³/h
• Rated operating voltage: 115 V AC
• Frequency: 50/60 Hz
• Rated power consumption: 29 W
• Rated current: 0.25 A
• Protection category: IP54
• Noise level: 60 dB(A)
• Mounting cut-out dimensions: 223 x 223 mm
• Colour: RAL 7035 (light grey)
• EMC shielding: Integrated EMC frame
• Operating temperature range: -10 °C to +55 °C
• Housing material: Plastic (ABS)
• Connection type: Spring-type terminal
• Approvals: UL, cUL, TÜV, VDE, EAC

Final note

This filter fan is a reliable choice for maintaining proper thermal conditions in industrial enclosures while addressing EMC requirements.
