Rittal PK 9517.100 polyamidové puzdro s polykarbonátovým vekom, IP66, svetlosivá

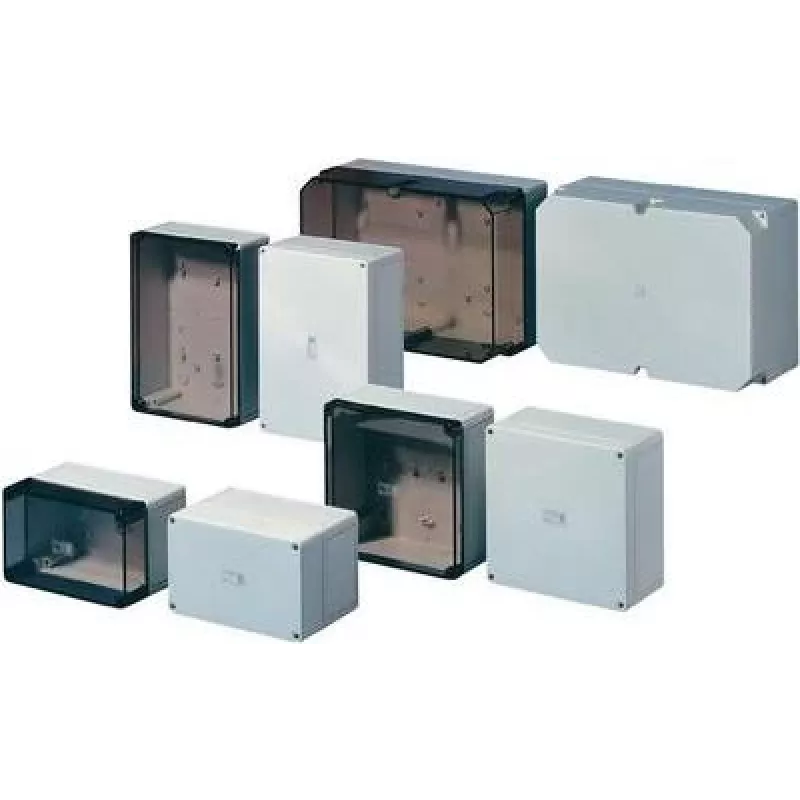

Junction box engineered for harsh industrial environments, delivering IP66 protection against dust and powerful water jets. The glass-fibre reinforced polyamide body and polycarbonate cover combine high mechanical strength with excellent chemical resistance, making it a dependable housing for electrical connections and control components.

Advantages

This enclosure offers a robust, lightweight solution for protecting sensitive electrical equipment. Its halogen-free, self-extinguishing materials meet UL 94 V-2 flammability standards, while the IK08 impact rating ensures resilience against mechanical stress. The RAL 7035 light grey finish blends seamlessly into modern control cabinets and machinery. Four quick-release cover screws provide fast access for maintenance, and the 1000 V AC rated insulation voltage supports a wide range of applications.

Suitable for

• Industrial junction and connection boxes
• Machine building and automation systems
• Outdoor installations requiring IP66 protection
• Marine and offshore applications (Lloyds Register, Germanischer Lloyd approved)
• Wall or DIN rail mounting with accessories

Key specifications

• Enclosure material: glass-fibre reinforced polyamide
• Cover material: polycarbonate
• Cover screws: polyethylene
• Ingress protection: IP66 / NEMA 4X
• Colour: RAL 7035 (light grey)
• Rated insulation voltage: 1000 V AC
• Operating temperature: -35 °C to +80 °C
• Impact resistance: IK08
• Flammability rating: UL 94 V-2
• Approvals: UL, cUL, VDE, Germanischer Lloyd, Lloyds Register of Shipping

Recommendations

For reliable protection of electrical connections in demanding environments, pair this enclosure with appropriate cable glands and mounting accessories. Its compact design and high IP rating make it an excellent choice for both indoor and outdoor industrial applications.
