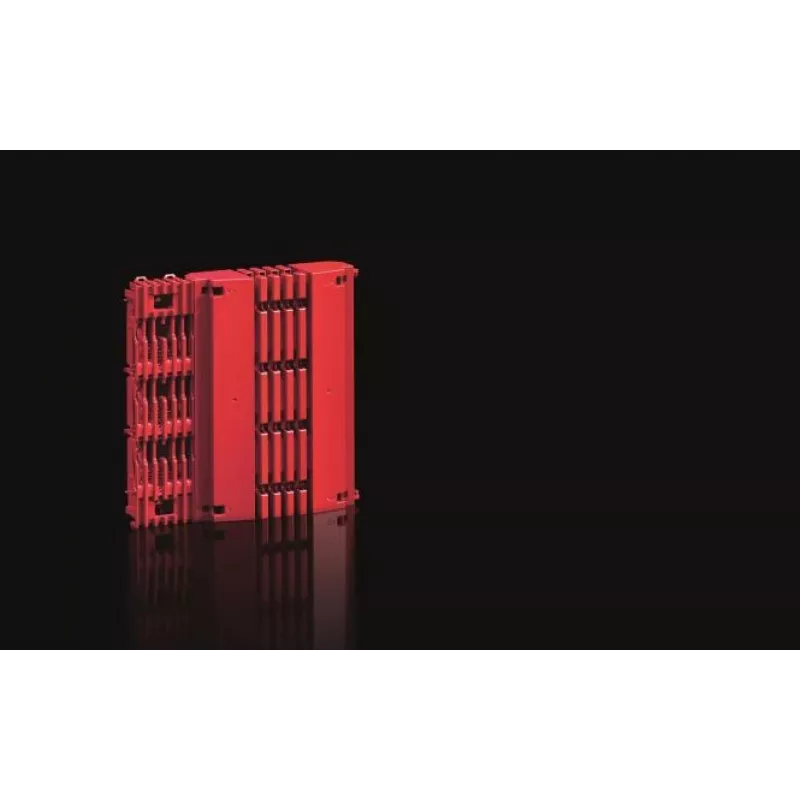

Rittal radová súprava pre RiLineX RX 9360104 základný modul a spojka 1/2

The Rittal Anreih-Set for RiLineX RX base module and connector 1/2 provides modular components for electrical busbar systems used in industrial control cabinets and switchgear. The set includes a base module and a half-width connector intended to join RiLineX RX modules, enabling aligned coupling and straightforward extension of the busbar system. It is designed to integrate with RiLineX RX components to support power distribution and maintain consistent mechanical and electrical alignment in cabinet assemblies.

Advantages

This Anreih-Set offers precise mechanical fit and secure electrical connection between adjacent RiLineX RX modules, reducing installation complexity. The components are engineered for compatibility with RiLineX systems to ensure uniform spacing and reliable contact, which helps maintain stable power distribution. The set simplifies modular expansion and supports consistent placement of modules within switchgear and control cabinet environments.

Suitable for

Key specifications

How to use

Install the base module at the intended position within the cabinet according to the RiLineX RX mounting provisions and align adjacent modules. Fit the 1/2 connector between modules to establish mechanical coupling and electrical transition. Ensure all mating surfaces are clean and that fastenings are tightened to the torque values and installation sequence specified by the RiLineX RX system documentation. Verify continuity and secure connections before commissioning.

Recommendations

Use this set as part of a complete RiLineX RX busbar assembly and follow manufacturer installation guidelines. Combine only with compatible RiLineX RX components, observe electrical safety practices, and perform verification tests after assembly to ensure reliable power distribution.
