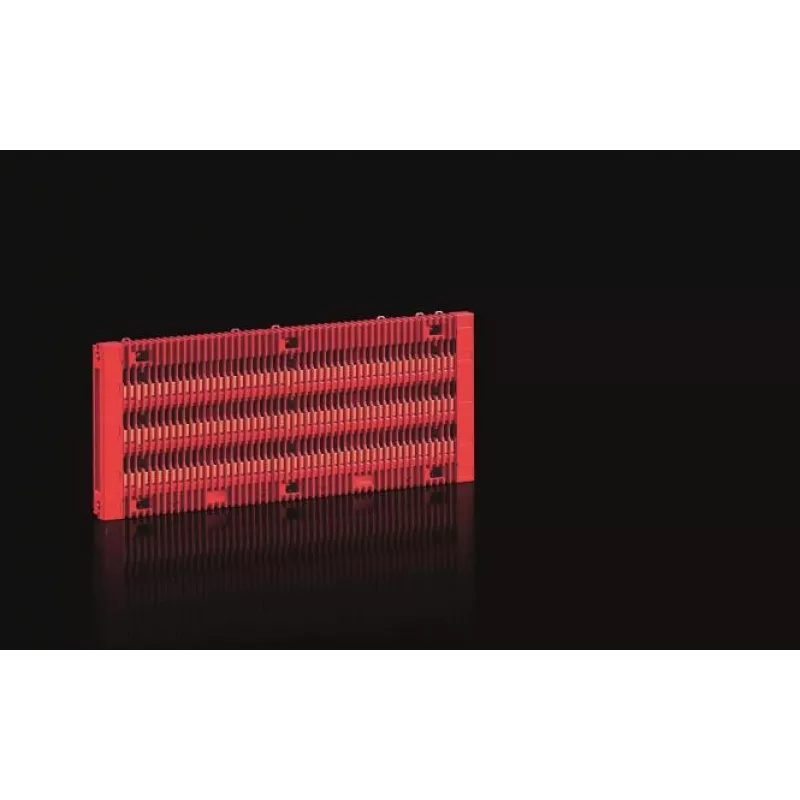

Rittal RiLineX doska 3-pólová RX 9360064 60mm s prúdovými lištami 30x5mm, šírka 505mm

Panel builders and switchgear manufacturers rely on the Rittal RiLineX Board 3p RX 9360064 for efficient, safe power distribution in industrial control panels. This 3-pole busbar mounting board, with a width of 505 mm and support for 30 x 5 mm busbars, integrates seamlessly into the RiLineX system, enabling high-current distribution up to 1600 A at voltages up to 1000 V AC/DC. Its light grey polyamide housing (RAL 7035) provides robust insulation and meets UL 94 V-0 flammability standards, ensuring reliability in demanding environments.

Key specifications

• System: RiLineX
• Number of poles: 3
• Busbar dimensions supported: 30 x 5 mm
• Material: Polyamide (PA), light grey RAL 7035
• Rated operational voltage: up to 1000 V AC/DC
• Rated current: up to 1600 A
• Mounting: direct mounting, screw fixing
• Operating temperature: -25 °C to +70 °C
• Protection category: IP00
• Standards: IEC 61439, UL, cUL
• Flammability rating: UL 94 V-0
• Width: 505 mm

Why choose it

The RiLineX Board 3p RX 9360064 offers a compact, modular solution for busbar mounting, reducing installation time and panel space. Its polyamide construction provides excellent electrical insulation and mechanical strength, while the light grey colour blends with standard enclosures. Compatibility with the RiLineX system ensures easy integration with other components like fuse holders and switch disconnectors, streamlining your power distribution design.

Ideal use cases

• Industrial control panels requiring high-current distribution
• Switchgear and motor control centers
• Power distribution units in machinery and automation systems
• Retrofitting existing RiLineX installations

Good to know

This board is designed for direct mounting with screw fixing, providing a secure base for busbars. It is rated IP00, meaning it is intended for installation inside enclosures that provide the necessary protection against contact and environmental factors. The operating temperature range of -25 °C to +70 °C allows use in a variety of industrial environments.
