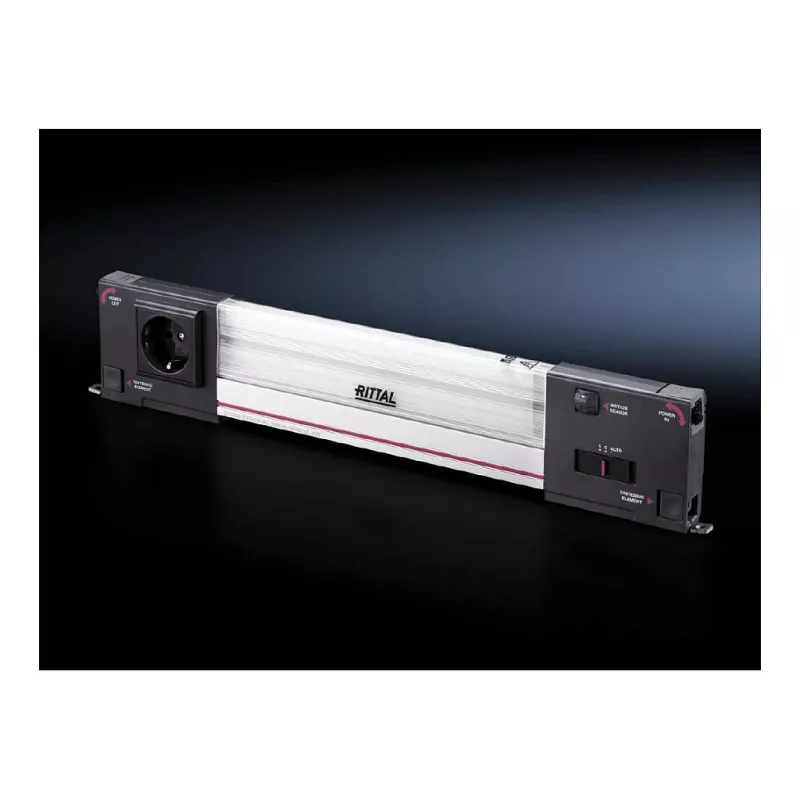

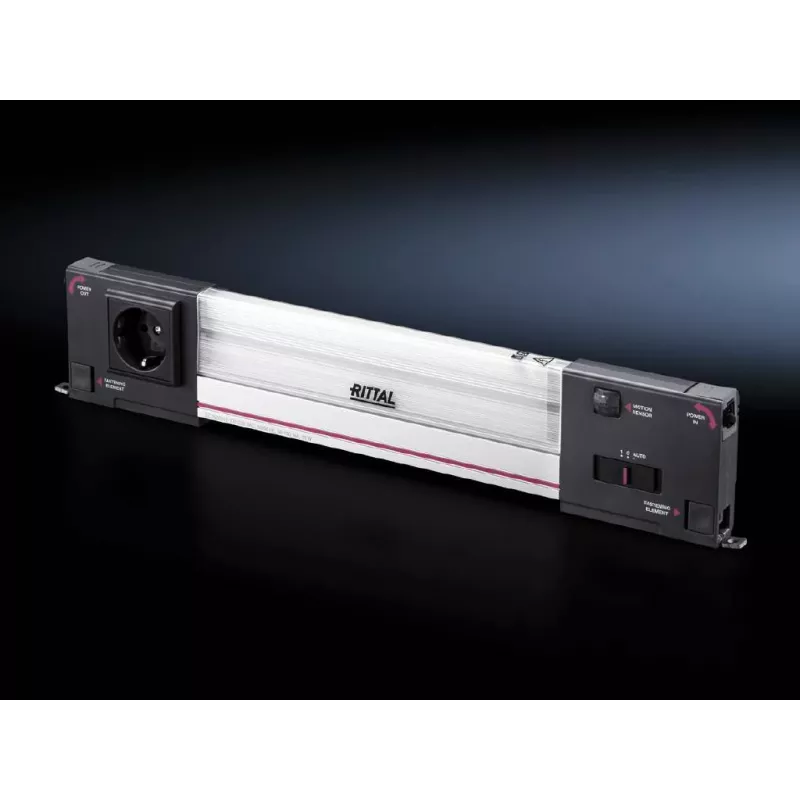

Rittal systémové svietidlo LED 1200 lúmenov

Most cabinet lights simply stay on until someone remembers to switch them off. The Rittal System Luminaire LED 1200 Lumens takes a smarter approach: a built-in PIR motion sensor detects presence within a 120° angle and up to 3 metres, switching the light on only when needed. That means real energy savings in control cabinets, storage rooms, and industrial workspaces, while the 1200 lm neutral white output ensures excellent visibility whenever you step in front of it.

Highlights

• LED light source with 1200 lm luminous flux
• Neutral white light: 5000 K, CRI Ra > 80
• Built-in PIR motion sensor with 120° detection angle and 2–3 m range
• Long lifespan > 60,000 h (L70/B10)
• Flexible mounting: screw, clip, or optional magnetic fixing
• Wide input range 100–240 V AC, 50/60 Hz

In daily use

The luminaire is designed for simple, flexible installation. A 3-pole push-in terminal makes wiring quick, while the sensor automatically switches the light on when it detects movement within a 120° field and up to 3 metres away. This makes it perfect for cabinets, machine interiors, shelves, or any spot where hands-free operation saves energy. The robust housing and IK07 impact resistance ensure it can handle the bumps and vibrations common in industrial environments.

Full specifications

• Light source: LED
• Luminous flux: 1200 lm
• Rated voltage: 100–240 V AC
• Frequency: 50/60 Hz
• Power consumption: 13 W
• Light colour: Neutral white
• Colour temperature: 5000 K
• CRI: Ra > 80
• Protection class: IP20
• Impact resistance: IK07
• Lifespan (L70/B10): > 60,000 h
• Operating temperature range: 0 °C to +55 °C
• Connection type: 3-pole plug-in terminal
• Integrated sensor: Yes
• Sensor type: Motion sensor (PIR)
• Sensor detection angle: 120°
• Sensor range: 2–3 m
• Mounting options: Screw fixing, magnetic fixing (optional), clip fixing
• Housing material: Aluminium
• Cover material: Polycarbonate

Final note

With its combination of high output, motion-activated control, and rugged construction, the Rittal System Luminaire LED 1200 Lumens is a dependable lighting solution for demanding industrial environments.
