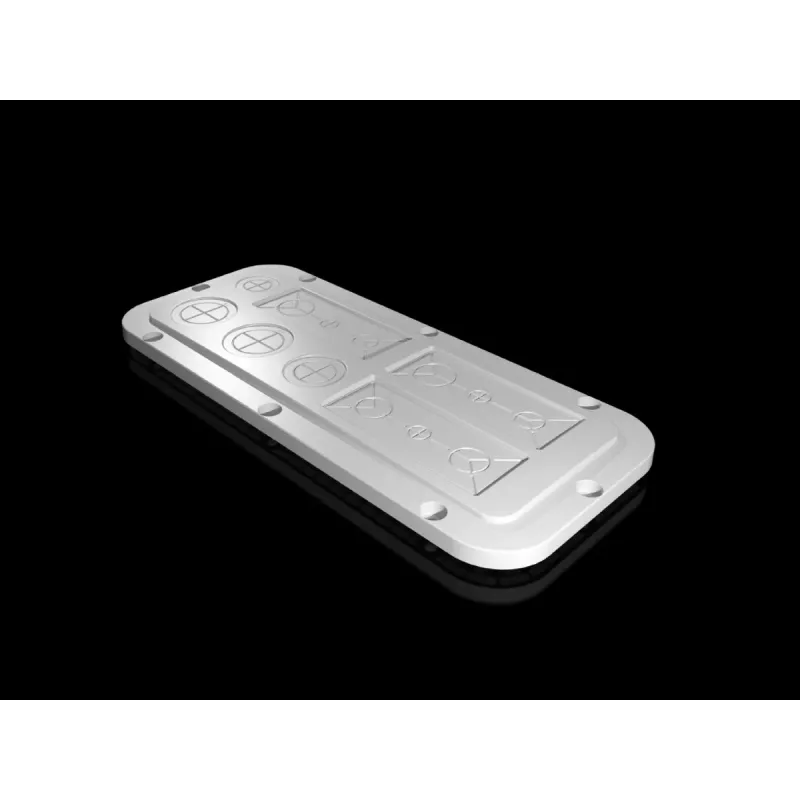

Rittal SZ plastová prírubová doska veľkosť 2 AX 2562.200 (2562200)

This Rittal flange plate is a practical solution for sealing unused openings in AX compact enclosures. Made from PA 6 GF 30 plastic, it provides a reliable barrier against dust and moisture while maintaining a clean, professional appearance. The plate is sized for a 125 x 150 mm cutout and includes a seal and assembly parts for straightforward installation.

Highlights

• Compatible with Rittal AX compact enclosures
• Material: PA 6 GF 30 plastic
• Colour: RAL 7035 light grey
• Protection: IP 66 / NEMA 4X
• Operating temperature: -30 °C to +80 °C
• Flammability rating: UL 94 V-0

In daily use

The flange plate is designed for bottom mounting in the enclosure, allowing you to close off openings that are not currently needed. This helps maintain the enclosure's protection rating and prevents the ingress of dirt or insects. The included seal ensures a tight fit, and the assembly parts make installation quick and tool-friendly.

Full specifications

• Product type: Flange Plate
• Size: Size 2
• Cutout dimensions (W x H): 125 x 150 mm
• Mounting position: Bottom
• Supply includes: 1 flange plate, 1 seal, assembly parts
• Approvals: UL, cUL, TÜV, EAC
• Number of cable entries: 0 (blank)

Final note

A dependable blanking plate for Rittal AX enclosures, offering robust sealing and easy installation.
