ROGER PRT64EM-G čítačka priblíženia

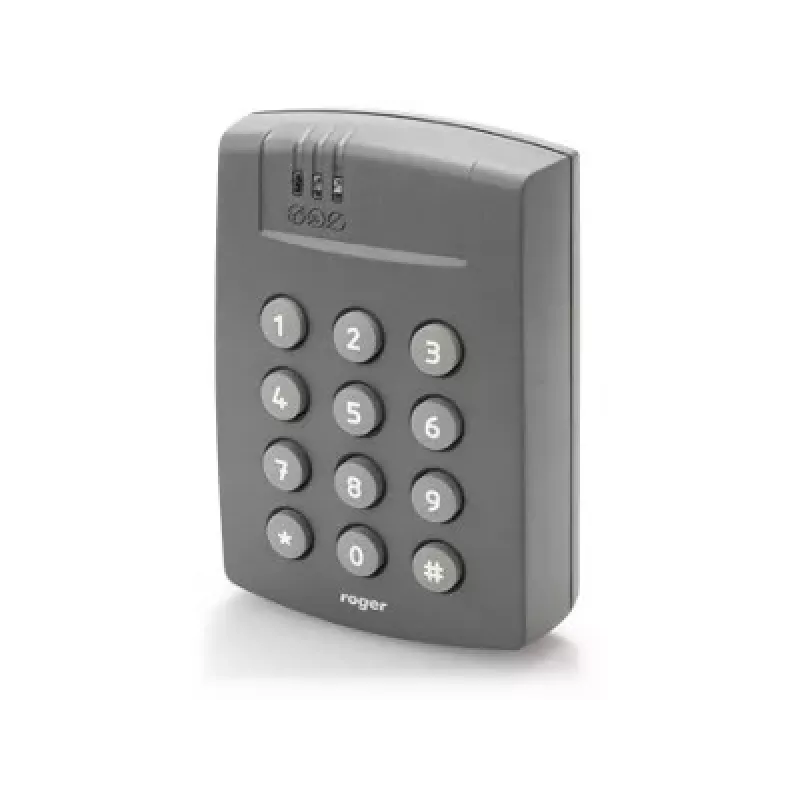

The ROGER PRT64EM-G Proximity Reader is a card and/or PIN reader designed for access control. It can operate autonomously as a standalone access control point with memory for up to 120 users and 1024 events, or as part of a larger access control system.

Key features

• Supports EM 125 kHz cards
• Configurable output data transmission formats: Wiegand 26..66 bit, Magstripe (Clock & Data), RS232, RACS (Roger)
• Various PIN and keyboard code transmission variants
• Separate inputs for LED indicator and speaker control
• Outdoor operation (except PRT42EM)
• Can function as an EMC-4 card programmer (with free RARC software)
• Manual or computer programming
• Autonomous operation as a standalone access control point
• 120 indexed users
• Identification: Card and/or PIN
• 1024 event history
• Programmable relay output 1.5A/30V
• Two NO/NC inputs
• Two transistor outputs
• Can connect XM-2 type input/output expander
• Can connect additional PRT series reader (two-way passage control)
• Tamper protection
• CE mark

Specifications

• Brand: Roger
• Model: PRT64EM
• Power supply: 12VDC
• Supported cards: EM 125 kHz
