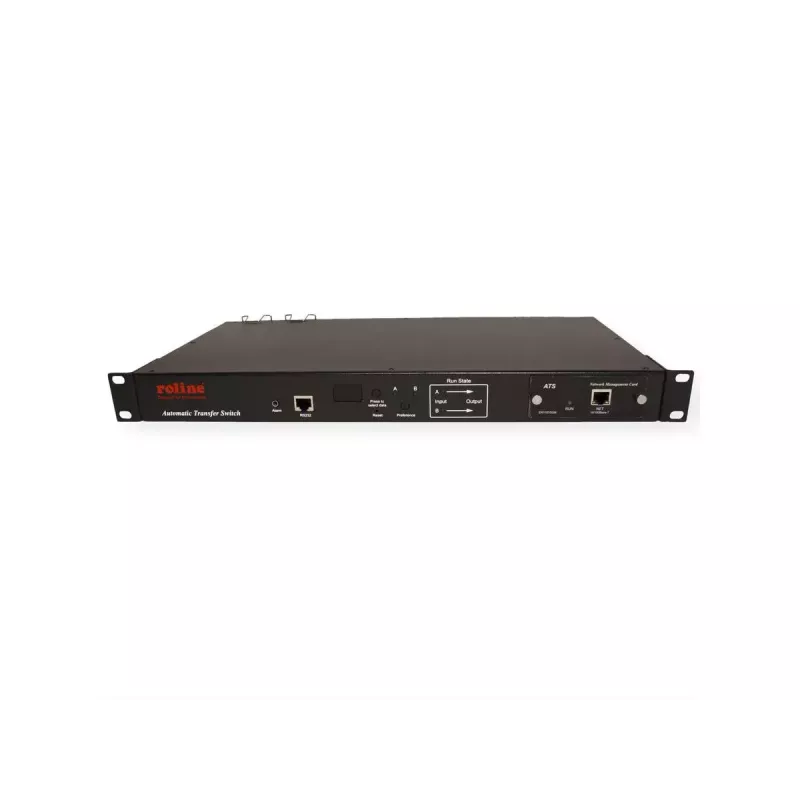

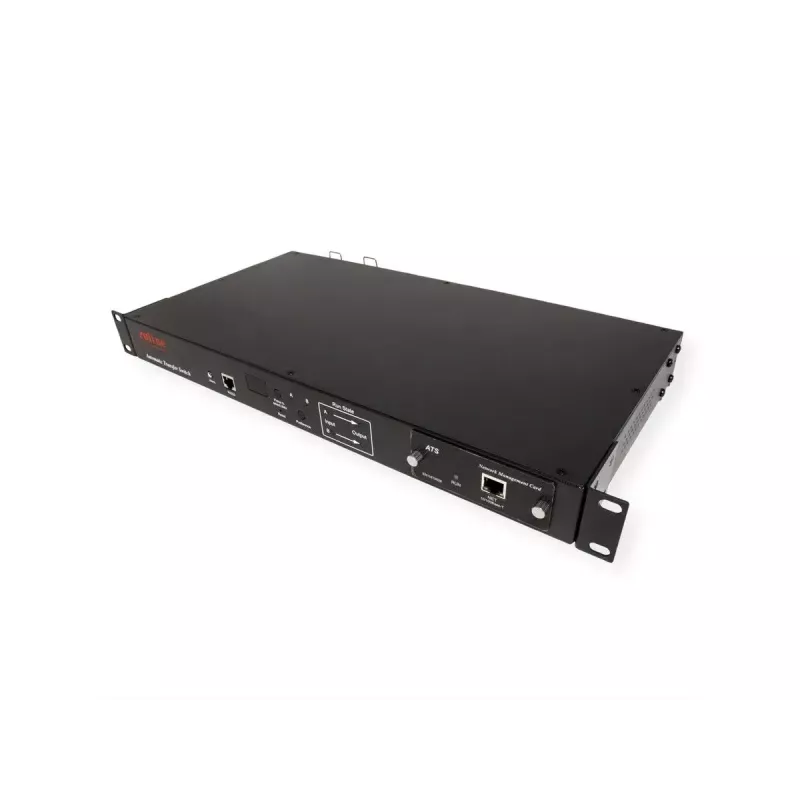

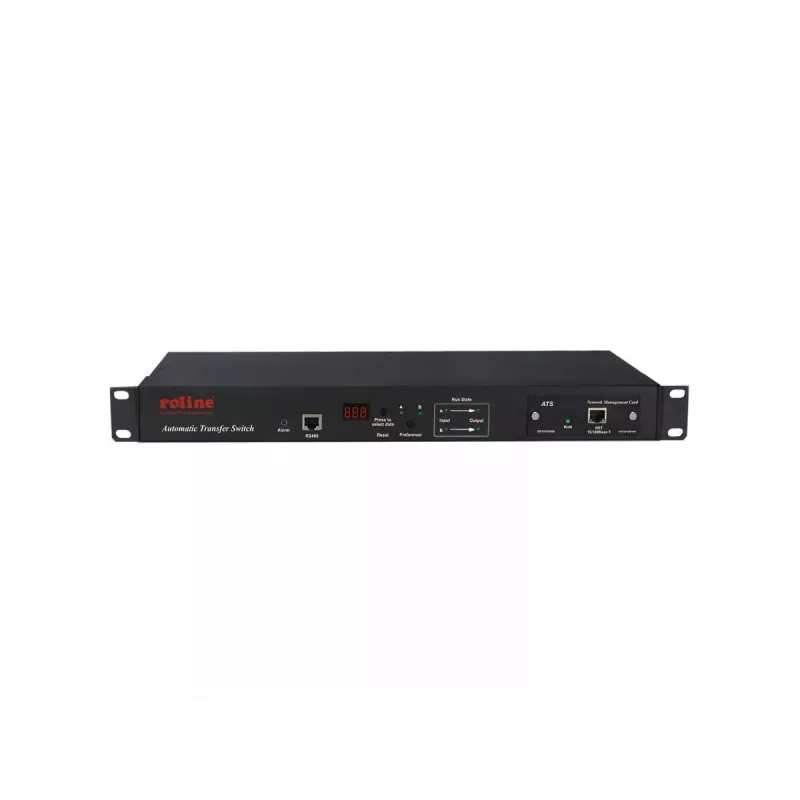

ROLINE 19.07.3415 Automatický prepínač ATS 220-240V 50Hz 1U Rackmount

The ROLINE 19.07.3415 Automatic Transfer Switch (ATS) provides automatic switchover between two independent AC power sources to maintain continuous power for connected equipment. Designed for 19-inch racks in a 1U form factor, the unit supports 220–240 V at 50 Hz and is housed in a durable stainless steel chassis with a black finish. It includes a mix of C13 and C19 outlets to accommodate a range of IT and server power cables while occupying minimal rack space.

Advantages

The ATS ensures fast, automatic transfer between primary and secondary power sources to reduce downtime for sensitive electronic devices. Its compact 1U rackmount design saves space in equipment cabinets, and the stainless steel construction offers robustness for data centre and server room environments. Multiple AC outlets support versatile connectivity for different device types.

Suitable for

• Redundant power for servers and network equipment
• Uninterruptible power configurations in data centres
• Rack-mounted IT installations and telecom cabinets

Key specifications

• Input voltage: 220–240 V
• Frequency: 50 Hz
• Form factor: 1U rackmount
• Material: stainless steel chassis

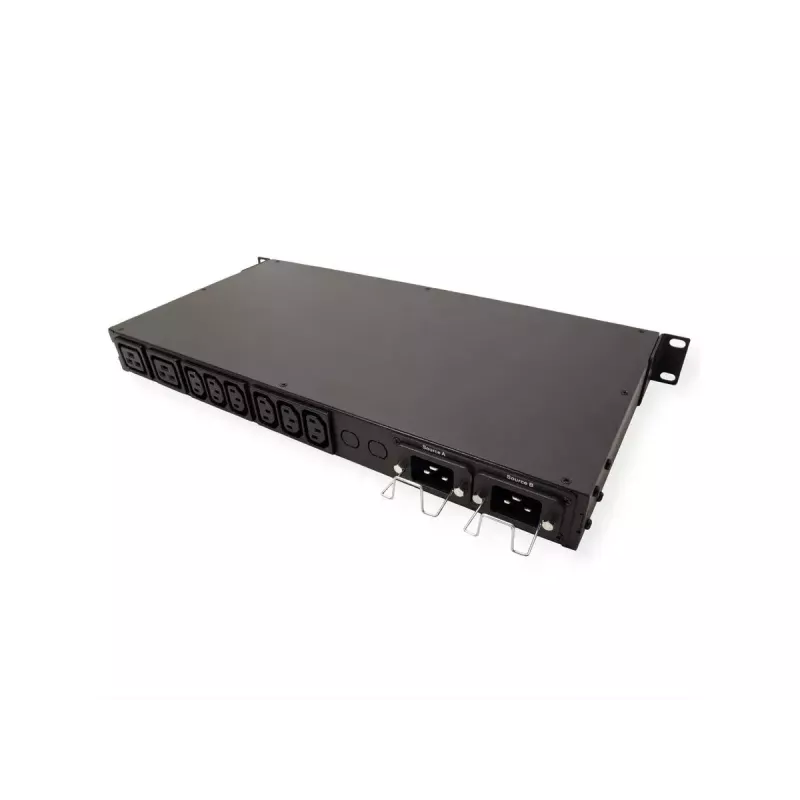

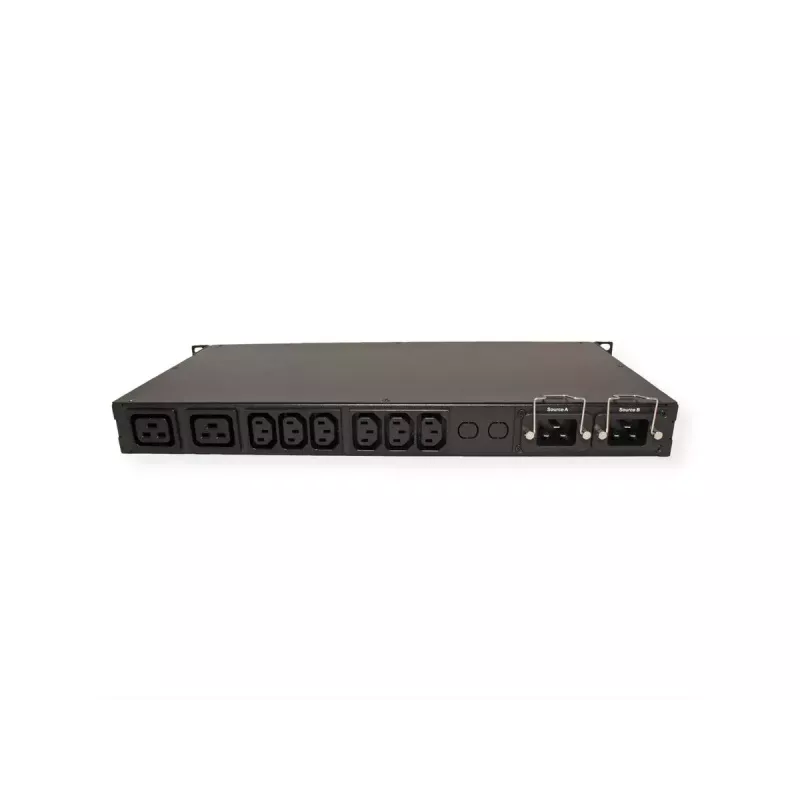

• Outlet types: combination of C13 and C19 AC outlets
• Colour: black
• Weight: approximately 3.08 kg

How to use

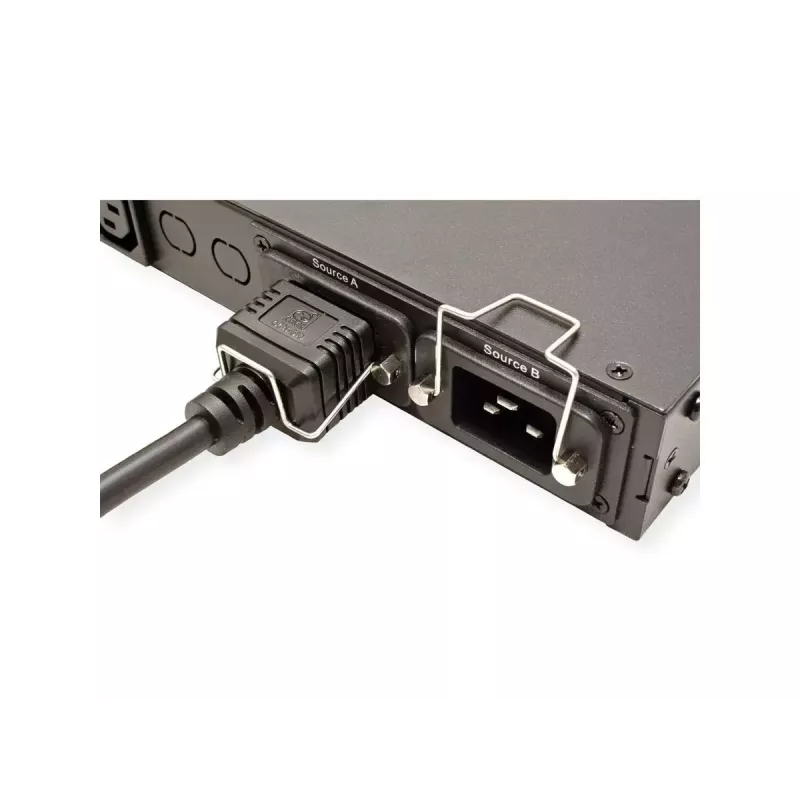

Install the ATS in a standard 19" rack occupying one rack unit (1U). Connect each of the two independent AC power sources to the designated input terminals, and plug the equipment to be protected into the C13 and C19 outlets. The unit will monitor the inputs and switch automatically to the secondary source if the primary input fails. Ensure all connections are tightened and that the rack has appropriate ventilation and grounding before powering the device.

Recommendations

Place the ATS in an environment with controlled temperature and humidity, and include it within a broader power management strategy that may include UPS devices and proper circuit protection. Periodically inspect connections and verify automatic transfer operation as part of routine maintenance.
