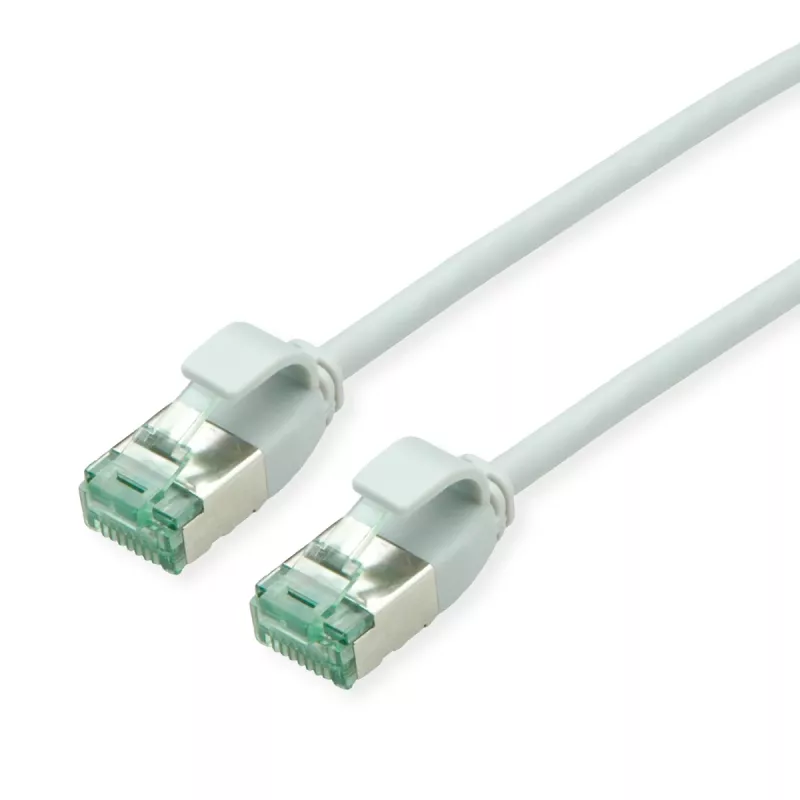

ROLINE RM U/FTP patch kábel Cat.6A/Class EA Slim sivý 1m - FTP (21.45.3303)

This slim Cat.6A U/FTP patch cable delivers 10 Gigabit Ethernet performance in a space-saving design. With a length of 1 meter, it is ideal for high-density patching in data centers and structured cabling systems.

Advantages

The cable features a slim 3.6 mm diameter, allowing better airflow and easier cable management in crowded racks. Its U/FTP shielding (pairs individually wrapped in metal foil) provides excellent protection against alien crosstalk, ensuring reliable 10GBASE-T transmission up to 500 MHz. The LSZH jacket is halogen-free, reducing toxic smoke in case of fire. Gold-plated RJ45 connectors (50 µm) ensure corrosion resistance and long-term connectivity. The snagless boot protects the locking tab during installation.

Suitable for

• 10 Gigabit Ethernet (10GBASE-T) networks
• High-density patch panels and switches
• Data centers and server rooms
• Structured cabling systems requiring Cat.6A performance
• Environments where low smoke and halogen-free materials are required

Key specifications

• Cable category: Cat.6A (Class EA)
• Shielding: U/FTP (PiMF)
• Length: 1 m
• Colour: Grey
• Conductor: Copper, AWG28, stranded
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Jacket: LSZH
• Diameter: 3.6 mm
• Connectors: RJ45 male to RJ45 male, gold-plated
• Wiring: TIA/EIA 568B
• Snagless boot: Yes

Recommendations

For optimal performance, use this cable in installations where Cat.6A components are deployed end-to-end. The slim design is particularly beneficial in high-density patching areas.
