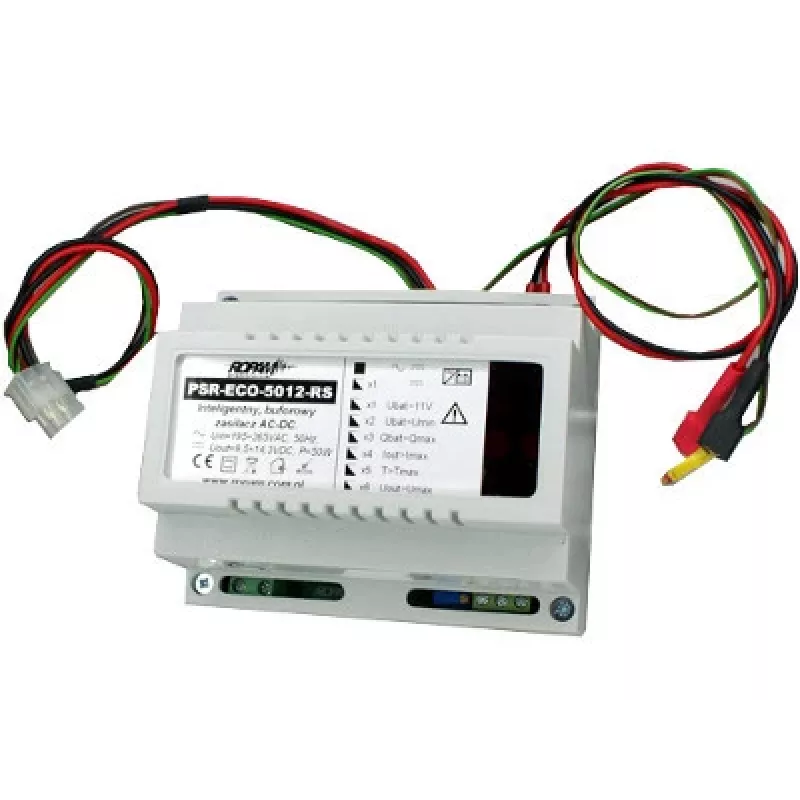

ROPAM napájací zdroj PSR-ECO-5012-RS (KAB. MID. NEO)

The ROPAM PSR-ECO-5012-RS is a professional buffer power supply with integrated battery charger, designed for security systems, access control, and automation applications. It provides a stable 12V DC output with a total current of 5A (4A continuous load, 1A battery charging). The unit features comprehensive protection circuits and signalling outputs for remote monitoring.

Advantages

Reliable power supply with battery backup capability; high efficiency >85%; compact DIN rail or screw mounting; extensive protection features ensure system safety.

Suitable for

• Security alarm systems
• Access control systems
• Building automation
• CCTV power backup

Key specifications

• Output voltage: 12V DC
• Total output current: 5A
• Continuous load current: 4A
• Battery charging current: 1A
• Output power: 50W
• Input voltage: 180-264V AC
• Input frequency: 50/60 Hz
• Recommended battery: 12V lead-acid (AGM/Gel) 7-18Ah
• Protections: SCP, OLP, OVP, UVP, OHP
• Signalling outputs: PSU failure (OC), battery fault (OC), tamper (NC)
• Mounting: DIN rail / screw mounting
• Connection: screw terminals
• Compliance: CE, RoHS
• Operating temperature: -10°C to +40°C

Recommendations

For optimal battery life, use a sealed lead-acid battery with capacity between 7Ah and 18Ah. Ensure proper ventilation and mounting according to local regulations.
