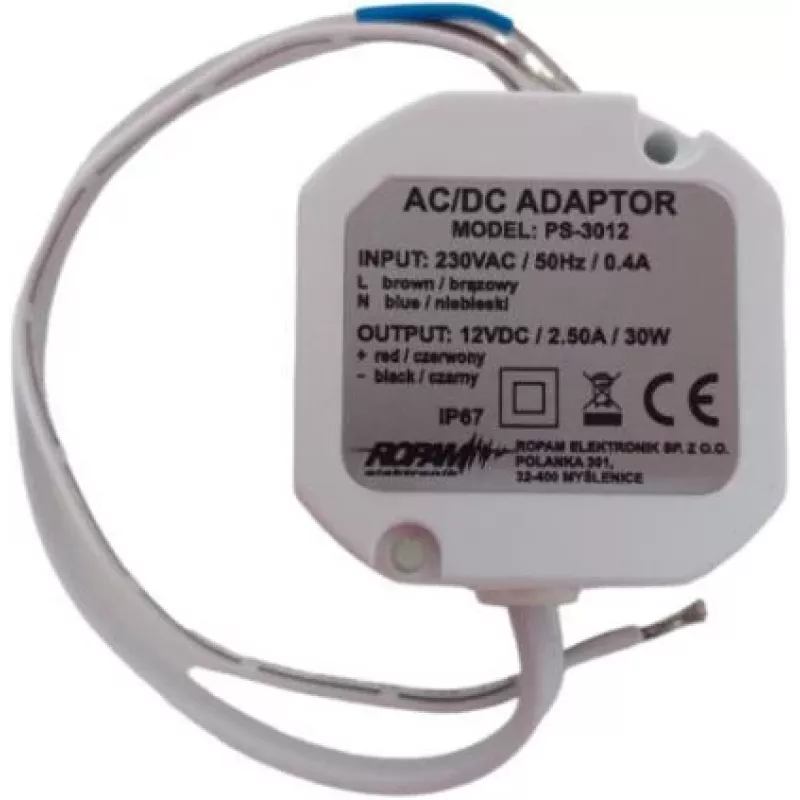

Ropam PS-3012 podomietkový napájací zdroj AC/DC 12V 2,5A 30W

The Ropam PS-3012 is a high-efficiency flush-mounted AC/DC power supply designed for professional security, automation, and IoT applications. With a compact form factor that fits standard Ø60mm electrical boxes, it delivers a stable 12V DC output at 2.5A (30W) from a wide-range AC input. Built-in protection circuits ensure reliable operation in demanding environments.

Advantages

Compact flush-mount design saves space and integrates seamlessly into wall boxes. Universal AC input (90-264V) allows worldwide use. High efficiency (>85%) reduces energy loss and heat generation. Comprehensive protection (SCP, OLP, OVP, OTP) safeguards connected equipment. Screw terminals simplify wiring.

Suitable for

• Alarm systems and security panels
• Access control systems
• Home and building automation
• LED lighting strips and drivers
• IoT devices and sensors

Key specifications

• Input: 90-264V AC, 47-63Hz
• Output: 12V DC, 2.5A, 30W
• Ripple & Noise: <100mVp-p
• Efficiency: >85% at full load
• Protection: Short Circuit, Overload, Over Voltage, Over Temperature
• Mounting: Flush-mounted (Ø60mm box)
• Connection: Screw terminals
• Housing: Plastic
• Operating Temperature: -10°C to +40°C
• Cooling: Natural convection
• Certifications: CE

Recommendations

For best performance, use with a compatible Ø60mm flush-mounted electrical box. Ensure adequate ventilation for natural convection cooling. Suitable for indoor use only.
