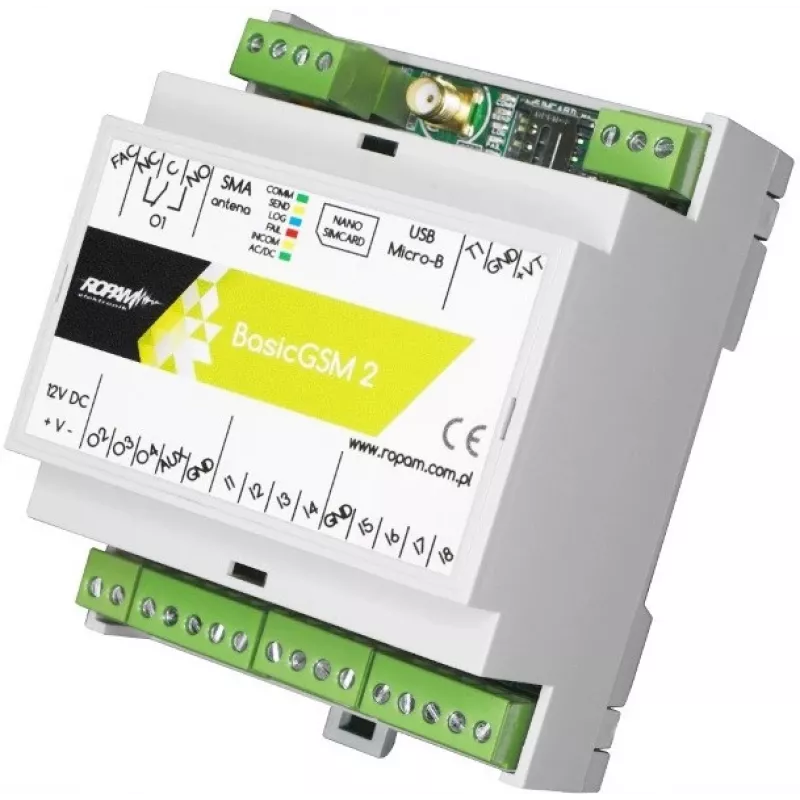

ROSE&TULIPANI ROPAM MODULE BASICGSM-D4M 2 SMA

The ROSE&TULIPANI ROPAM MODULE BASICGSM-D4M is a versatile GSM/GPRS communication module designed for integration into alarm systems and automation controllers. With quad-band GSM support, 4 digital inputs, and 4 digital outputs, it enables remote monitoring and control via SMS, GPRS, DTMF, or voice. The module features two SMA antenna connectors for GSM and auxiliary antennas, ensuring reliable connectivity.

Advantages

This module offers flexible control and event reporting methods, including SMS, GPRS (SIA-IP, MQTT), and voice calls. It supports remote firmware updates via GPRS, making maintenance easy. The DIN rail or surface mount design simplifies installation in various environments.

Suitable for

• Alarm system integration
• Remote monitoring and control of automation systems
• Industrial and residential security applications

Key specifications

• Communication Technology: GSM/GPRS
• GSM Frequency Bands: Quad-band (850/900/1800/1900 MHz)
• SIM Card Type: Mini-SIM (2FF)
• Antenna Connectors: 2x SMA (GSM, AUX)
• Digital Inputs: 4 (programmable, NO/NC)
• Digital Outputs: 4 (OC type, programmable)
• Power Supply Voltage: 9-16V DC
• Idle Current Consumption: ~30 mA
• Max Current Consumption: ~200 mA (during transmission)
• Control & Monitoring Methods: SMS, GPRS (TCP/IP), DTMF, Voice
• Event Reporting Methods: SMS, GPRS (SIA-IP, MQTT), Voice Call
• Remote Firmware Update: Yes (via GPRS)
• Operating Temperature Range: -10°C to +55°C
• Configuration Interface: USB (via adapter) / GPRS
• Mounting Type: DIN rail / Surface mount
• Voice Features: Voice messages, Listen-in (requires external microphone)
• Event Log Capacity: Internal memory
• Compatibility: Ropam alarm systems and automation controllers

Recommendations

Ensure proper antenna selection for optimal GSM signal strength. Use a compatible power supply within the specified voltage range. For voice features, an external microphone is required.
