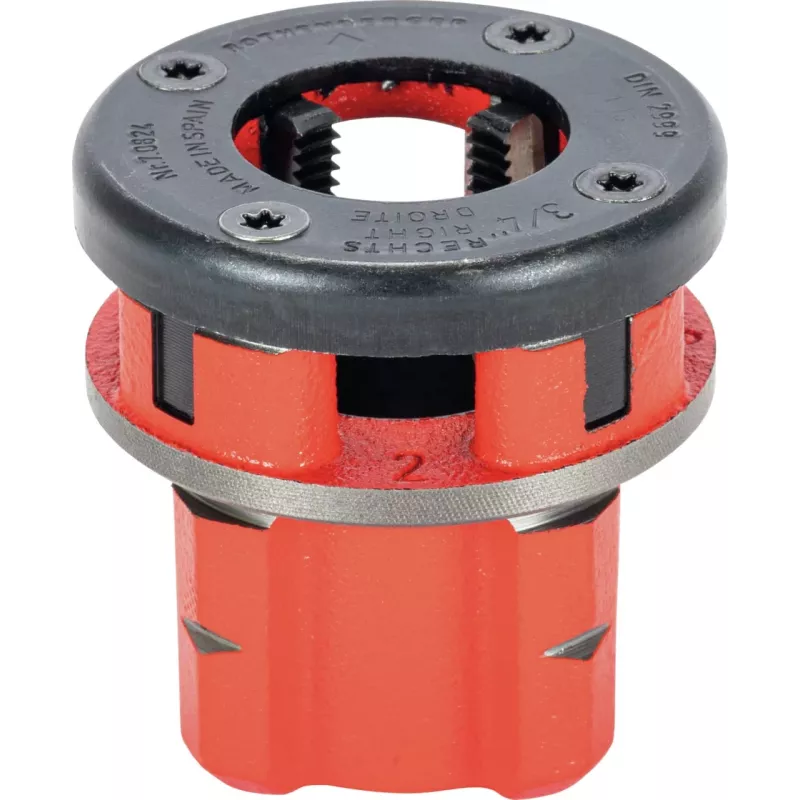

ROTHENBERGER SUPER CUT závitorezná hlava BSPT R 3/4" pravá

Cutting precise tapered threads on 3/4-inch steel pipes by hand or machine demands a die head engineered for accuracy and longevity. The ROTHENBERGER SUPER CUT Threading Die Head BSPT R 3/4" Right-Hand delivers clean, burr-free threads that meet DIN 2999 standards, ensuring leak-free joints in plumbing, heating, and gas installations. Its four precision-ground alloy steel dies slice through steel, galvanized, and plastic-coated pipes up to 60°C, while the quick-change system minimizes downtime on the job.

Who is it for

Professional plumbers, pipefitters, and maintenance technicians who demand reliable threading performance in the field or workshop. This die head is ideal for those working with ROTHENBERGER SUPER CUT threading machines or ratchet threaders, and it suits both new installations and repair work on existing piping systems.

Main features

• BSPT R (British Standard Pipe Taper, right-hand) thread standard for 3/4-inch nominal pipe size.
• Four precision-ground dies made from high-quality alloyed steel for long service life.
• Produces precise, clean, and burr-free threads for secure, leak-proof connections.
• Quick and easy die head change system for efficient workflow.
• Surface treated for enhanced corrosion resistance, extending tool life.
• Conforms to DIN 2999 for BSPT threads, ensuring industry-standard compatibility.
• Works with both manual ratchet threaders and machine drives for versatile use.

Specifications

• Thread Standard: BSPT R (British Standard Pipe Taper, Right-hand)
• Nominal Pipe Size: 3/4 inch
• Series: SUPER CUT
• Material: High-quality alloyed steel
• Cutting Direction: Right-hand
• Application: Threading steel pipes, galvanized pipes, plastic-coated pipes (up to 60°C)
• Compatibility: ROTHENBERGER SUPER CUT threading machines and ratchet threaders
• Number of Dies: 4 precision-ground dies
• Thread Quality: Precise, clean, and burr-free threads
• Durability: Long service life
• Interchangeability: Quick and easy change system
• Corrosion Protection: Surface treated for enhanced resistance
• Manufacturing Standard: Conforms to DIN 2999 (for BSPT threads)
• Tool Type: Threading Die Head
• Drive Type: Manual or machine-driven

Tips

To maximize die life, ensure pipes are clean and lightly oiled before threading. Use the quick-change system to swap die heads rapidly when working on multiple pipe sizes, and store the die head in a dry place to prevent corrosion.
