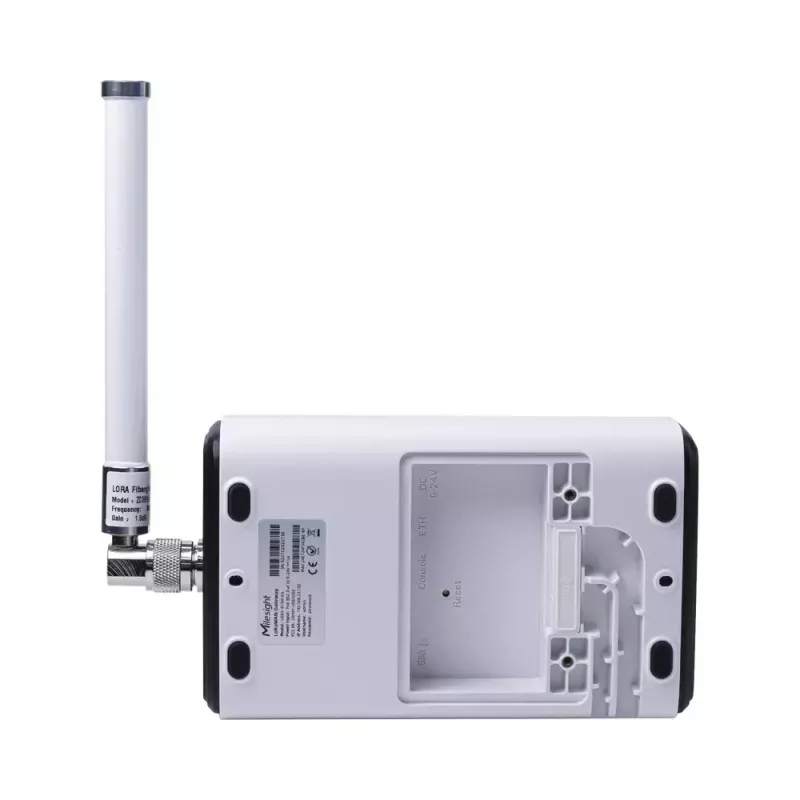

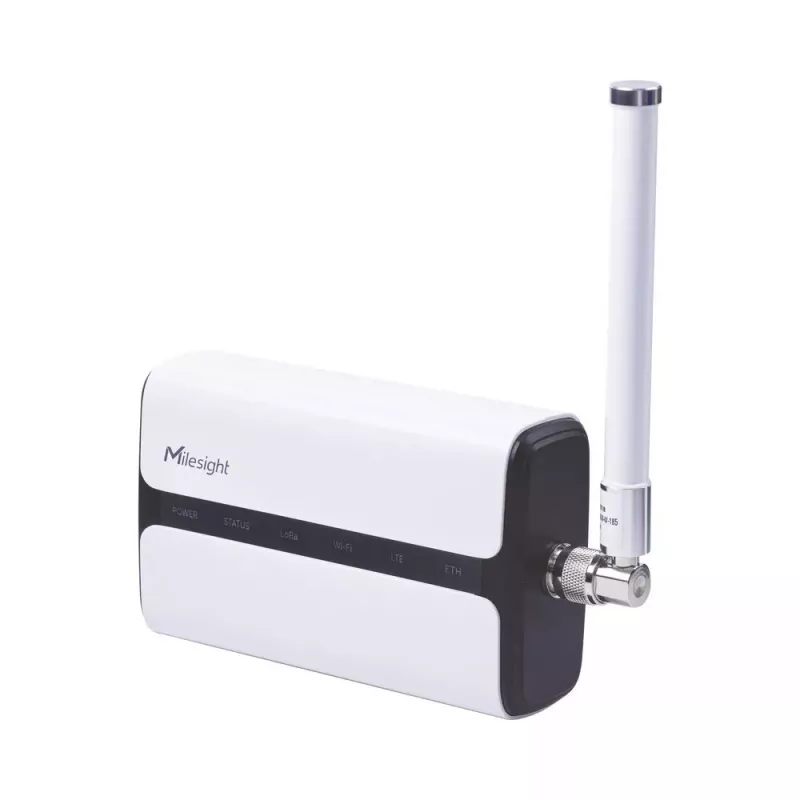

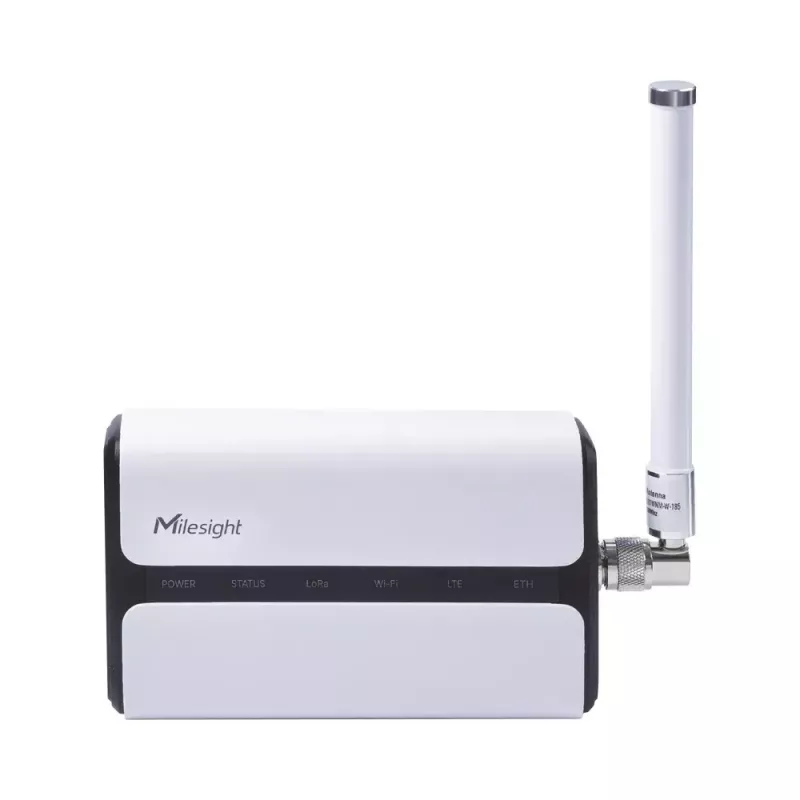

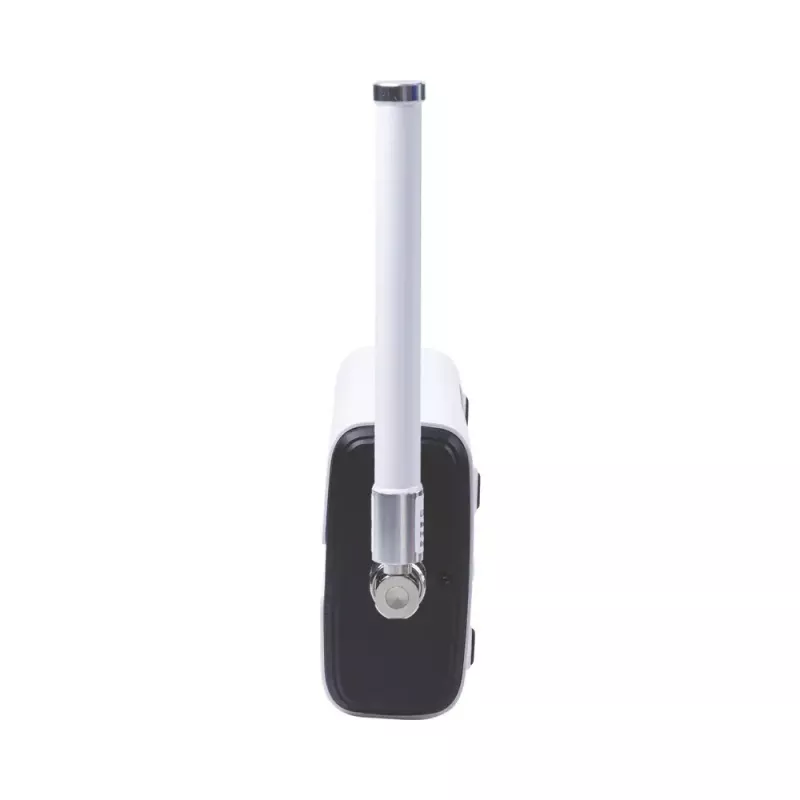

Router Milesight UG65915EA 2,4 GHz IEEE 802.11b/g/n

The Milesight UG65915EA 2.4 GHz IEEE 802.11b/g/n router is a robust industrial gateway and controller designed for reliable wireless connectivity. It is powered by a 1500 MHz processor and equipped with 512 MB DDR4 memory to handle networking tasks. The device supports Ethernet LAN speeds of 10/100/1000 Mbit/s and uses internal antennas (two antennas) to provide 2.4 GHz wireless coverage. With an IP65 rating and a compact two-tone black and white enclosure, the router is suitable for deployments where environmental protection and stable wireless control are required.

Advantages

The UG65915EA combines a high-frequency processor and adequate DDR4 memory to maintain stable performance under continuous operation. Its support for standard Ethernet data rates ensures compatibility with existing network infrastructure. The internal dual-antenna design preserves a compact form factor while delivering 2.4 GHz wireless connectivity. IP65 protection provides resistance against dust and water jets, expanding installation options beyond strictly indoor locations. Multiple supported network protocols and controller features increase its versatility for different network topologies.

Suitable for

• Industrial or commercial sites requiring a rugged wireless gateway
• Environments where IP65-rated protection against dust and water is needed
• Deployments that use 2.4 GHz IEEE 802.11b/g/n wireless connectivity
• Networks that require PPPoE, SNMP or MQTT protocol support

Key specifications

• Wireless standard: IEEE 802.11b/g/n at 2.4 GHz
• Processor frequency: 1500 MHz
• Memory: 512 MB DDR4
• Ethernet LAN: 1 × RJ-45 supporting 10/100/1000 Mbit/s
• Antenna: internal, quantity 2
• Ingress protection: IP65
• Product colour: black and white
• Supported network protocols: PPPoE, SNMP, MQTT

How to use

Install the router in a location that provides adequate ventilation and access to the required Ethernet connection. Connect the LAN cable to the RJ-45 port and power the device following the manufacturer's power specifications. Access the device management interface via the wired Ethernet connection or the 2.4 GHz wireless network using the default IP address and credentials provided by Milesight. Configure wireless SSID, security settings and networking parameters such as PPPoE or MQTT endpoints through the web interface or supported management tools. Ensure firmware is updated to the recommended version to maintain security and feature compatibility.

Recommendations

For reliable operation, mount the router where it is protected from direct sprays and extreme temperatures despite its IP65 rating. Use shielded Ethernet cabling for critical links, enable appropriate wireless security (WPA2 or higher if supported), and monitor device performance via SNMP or built-in management utilities. Plan antenna placement to avoid obstructions and minimize interference in the 2.4 GHz band.
