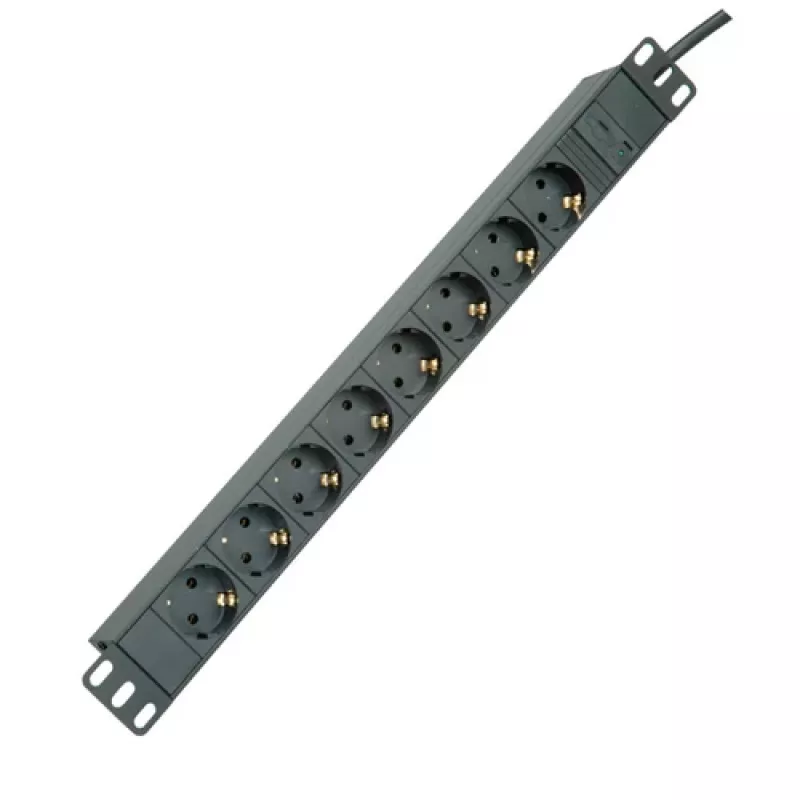

Rozbočovač napájania ROLINE 19.07.1623 2m 8 AC výstupov vnútorný čierny

The ROLINE 19.07.1623 is a 19" 1U power extension strip for indoor use, featuring eight AC outlets arranged at a 45° angle. It is built with an anodized aluminium profile in light gray (RAL 7035) and includes a 2.0 m H05VV-F 3G 1.0 mm² cable with a C14 coupler. The unit is compatible with standard 19" cabinets and comes with an installation angle for mounting; total width is 440 mm. Maximum rated load is 10 A / 2300 W and the product is VDE/GS tested.

Advantages

The angled 45° outlet arrangement allows easier cable routing in rack environments and reduces cable strain. Anodized aluminium construction provides a durable, lightweight housing with a neutral light-gray finish that fits typical network and server cabinets. The included 2.0 m power cable and installation angle facilitate immediate mounting and connection in 19" racks. VDE/GS testing confirms compliance with common safety standards for indoor power distribution.

Suitable for

• Powering servers, switches and network equipment in 19" racks
• Data center and server room installations requiring compact 1U power distribution
• Telecommunications and AV racks where angled outlets improve cable management

Key specifications

• Form factor: 19" 1U
• Number of outlets: 8 AC outlets
• Outlet arrangement: 45°
• Cable: 2.0 m H05VV-F 3G 1.0 mm², black
• Input coupler: C14
• Max load/power: 10 A / 2300 W
• Housing: anodized aluminium, light gray (RAL 7035)
• Width: 440 mm; Depth: 40 mm; Height: 40 mm
• Standards: VDE / GS tested

How to use

Mount the unit into a 19" rack using the supplied installation angle and secure it with appropriate screws. Connect the C14 coupler to a compatible power source and distribute power to devices via the eight AC outlets, orienting cables to take advantage of the 45° outlet arrangement for improved routing. Ensure the total connected load does not exceed 10 A / 2300 W.

Recommendations

Do not exceed the maximum rated current of 10 A. Use the device only indoors in dry, ventilated environments and ensure proper earthing of rack equipment. Periodically inspect the cable and outlets for wear and replace the unit if damage is found.
