Rozhranová karta DeLOCK 62688

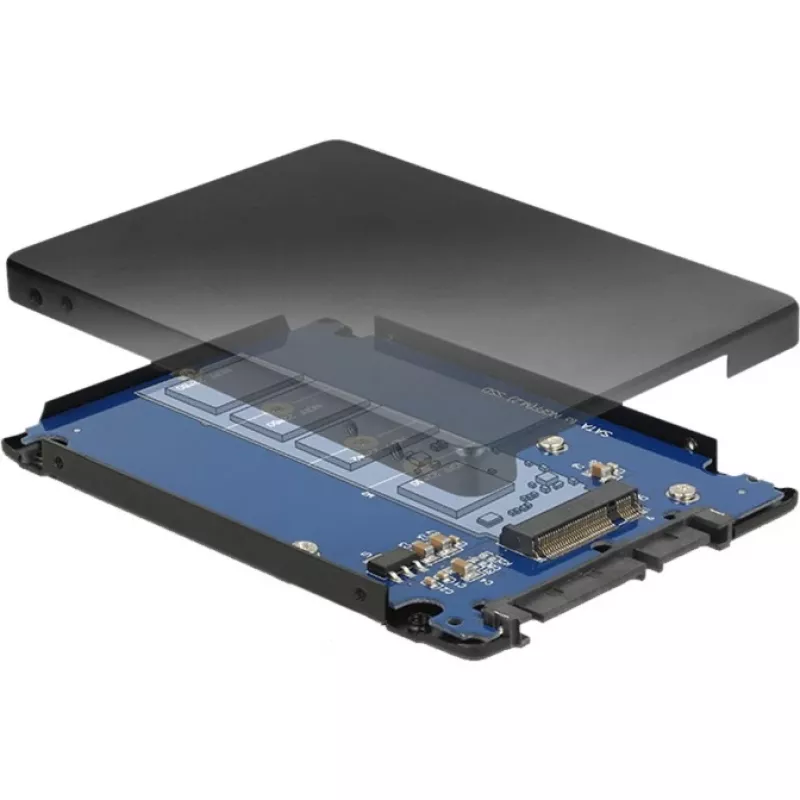

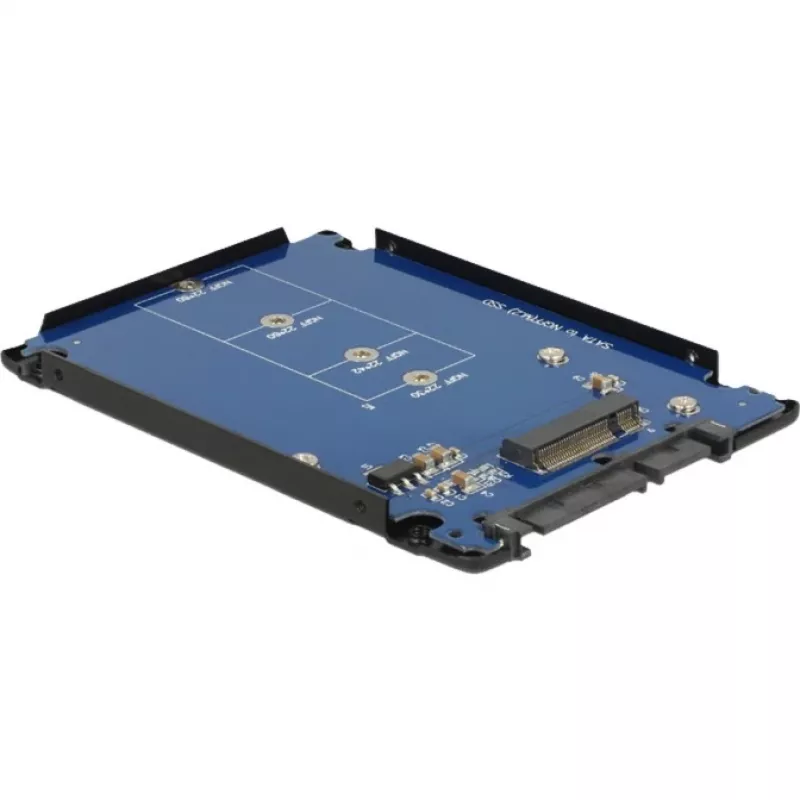

This DeLOCK Interface Card 62688 allows installation of an M.2 NGFF SSD in sizes 2280, 2260, 2242 and 2230 and is intended to replace a 2.5" HDD by connecting internally via a SATA 22-pin interface. The card is designed for compact storage solutions and supports drives with a height of 1.35 mm. Its dimensions (70 × 100 × 7 mm) and black colour make it suitable for slim and space-constrained devices.

Advantages

The interface card supports multiple M.2 lengths (2280/2260/2242/2230) so one adapter fits several drive formats. It connects through a standard SATA 22-pin interface for internal installation and is compatible with drives up to 1.35 mm height, enabling use in slim housings. Compact dimensions and a black finish facilitate integration into tight and visually consistent setups.

Suitable for

• Replacing a 2.5" HDD with an M.2 NGFF SSD
• Upgrading slim laptops or compact desktop systems
• Space-constrained storage installations and thin client builds

Key specifications

• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Interface: SATA 22-pin (internal)
• Supported drive height: 1.35 mm

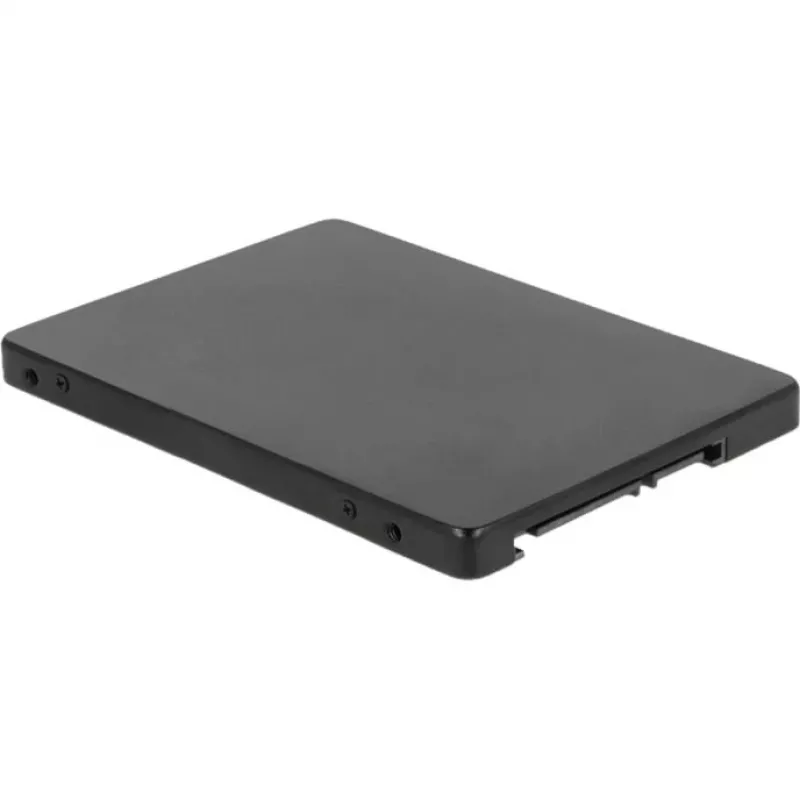

• Dimensions: 70 mm (W) × 100 mm (D) × 7 mm (H)
• Product colour: Black
• Brand: DELOCK, MPN: 62688, EAN: 4043619626885

How to use

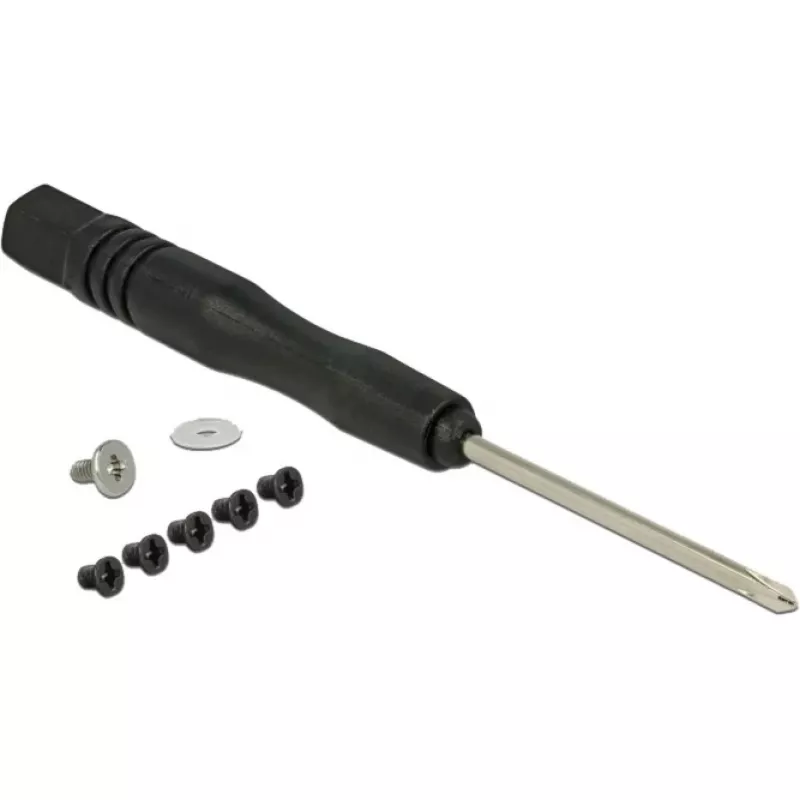

Install an M.2 NGFF SSD of one of the supported lengths into the card following the manufacturer’s mounting points for the correct screw position for the selected size. Mount the completed card inside the system and connect it to an internal SATA 22-pin connector. Secure the card and ensure proper seating of the drive before powering the system. After installation, initialise and format the new drive in the operating system if required.

Recommendations

Use M.2 NGFF SSDs with a thickness of 1.35 mm or less and verify SATA compatibility of the host system. Handle the card and SSD on an anti-static surface and secure all connections to avoid data loss or hardware damage.
