Rozhranová karta DeLOCK 89294

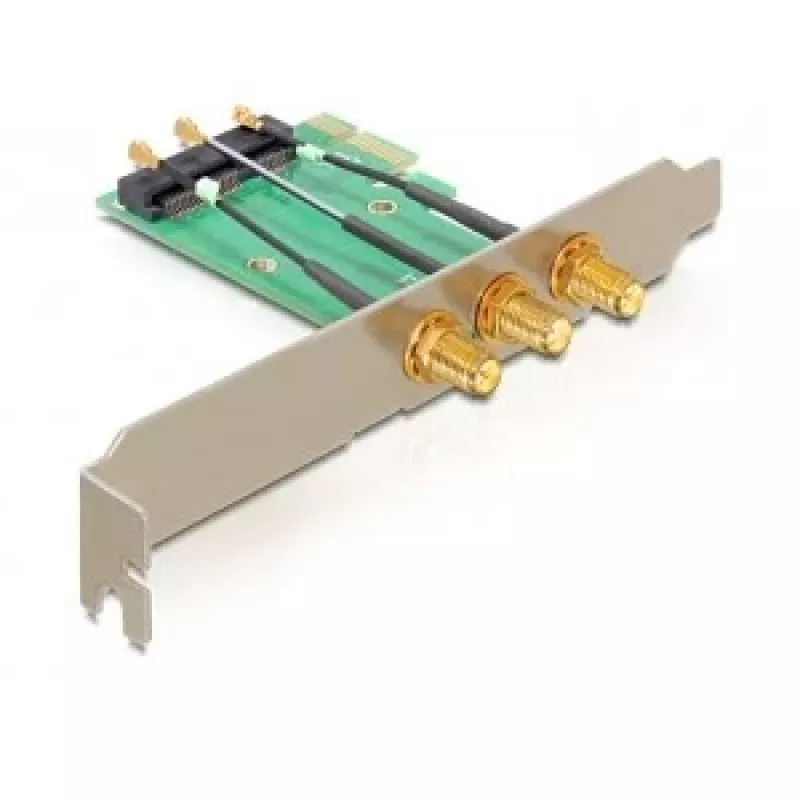

The DeLOCK 89294 is an internal interface card that fits into a PCI Express slot and provides three RP‑SMA connectors for attaching external antennas or radio modules. It converts a Mini PCI Express radio module interface to a standard PCIe card form factor, enabling integration of wireless modules into desktop systems while keeping the module mounted inside the case.

Advantages

This interface card offers a compact solution for adding RP‑SMA antenna connections via a PCIe slot, supporting wired RP‑SMA output for stable signal transmission. Its three pre‑punched RP‑SMA sockets simplify installation of external antennas or radio modules and help maintain reliable wireless performance without requiring external adapters.

Suitable for

• Connecting Mini PCIe radio modules to desktop motherboards
• Attaching external antennas for improved wireless reception
• Integrating Wi‑Fi, LTE or IoT radio modules into PC systems

Key specifications

• Brand: DELOCK
• Model / MPN: 89294
• EAN: 4043619892945
• Host interface: PCIe (PCI Express)
• Internal: Yes
• Output interface: RP‑SMA (3 pre‑punched sockets)

How to use

Install the card into an available PCI Express slot on the motherboard with the system powered off and the case opened. Secure the bracket, then attach RP‑SMA antennas or connect the coaxial cables to the provided RP‑SMA sockets. After closing the case, power on the system and install any necessary drivers or the Mini PCIe radio module in accordance with the module manufacturer’s instructions.

Recommendations

Ensure compatible Mini PCIe radio modules and proper antenna types are used. Tighten RP‑SMA connectors carefully to avoid damage; avoid excessive torque. Place antennas according to signal coverage needs and follow any grounding or shielding guidelines from the module vendor.
