Rozpínacia kotva Fischer 562167 80 mm nylon 50 kusov

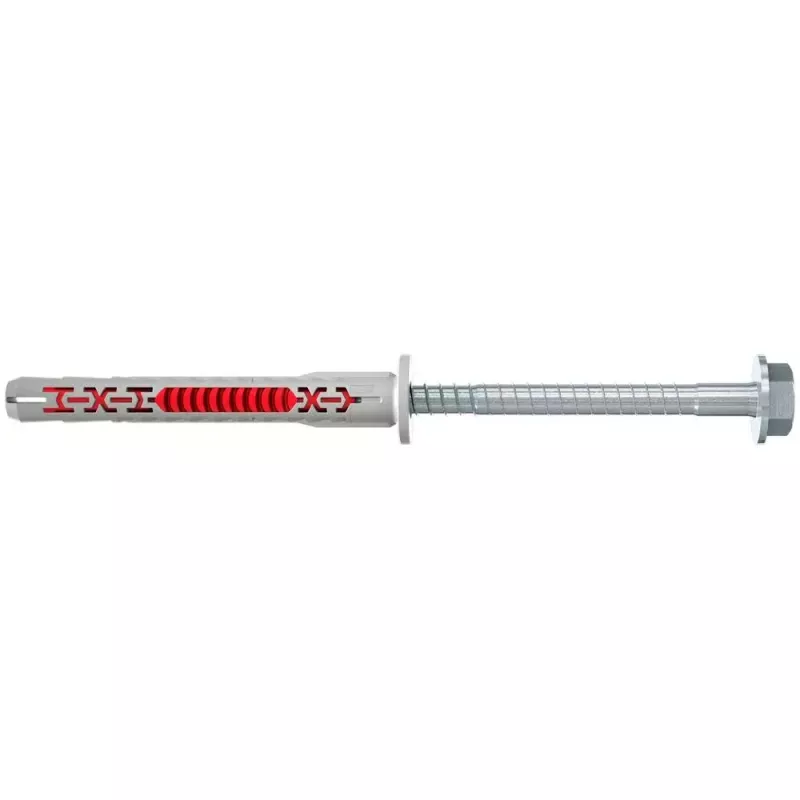

The Fischer 562167 expansion anchor is a nylon anchor designed for secure fixing in concrete, gypsum block and masonry. It is 80 mm long with a drill hole diameter of 10 mm and requires a minimum drill hole depth of 90 mm. Supplied in packs of 50, the anchor combines a grey nylon main body for strength with a red material component for flexibility and controlled spreading, and includes a pre-mounted safety screw matched to the plug for faster installation.

Advantages

The combination of design and material adapts to a wide range of building materials and enables universal use. The grey main body made of high-quality nylon provides strength, while the red component ensures flexibility and optimal spreading. A pre-mounted safety screw is matched to the plug to save time during installation. The special lamella geometry expands gently in the respective building material to avoid fractures in porous substrates and to allow anchoring close to edges. A European Technical Assessment (ETA) for multiple use in non-structural applications ensures secure hold across building material classes.

Suitable for

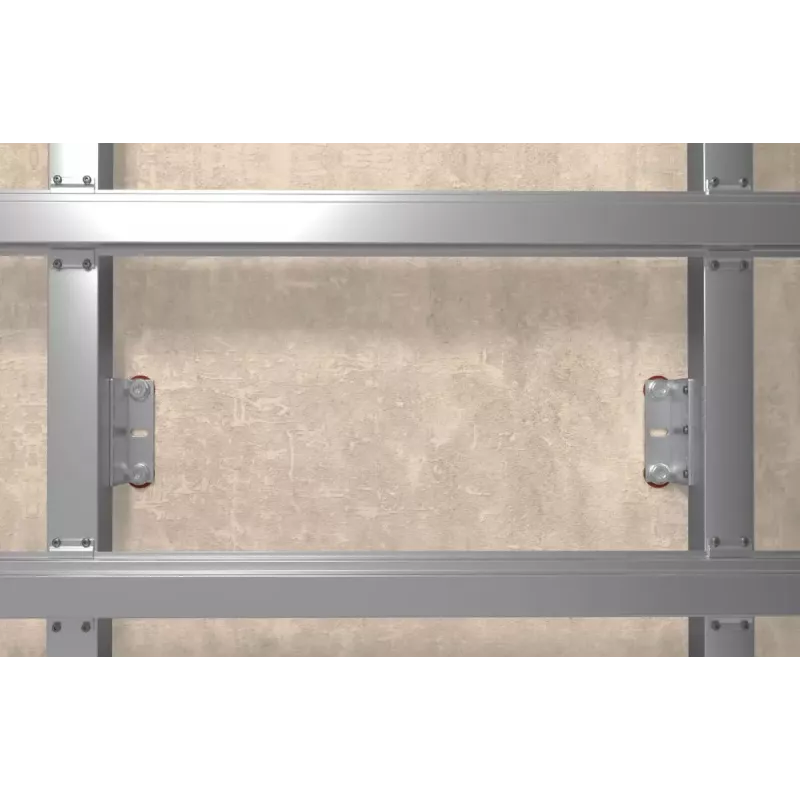

• Fixing wood to concrete or masonry

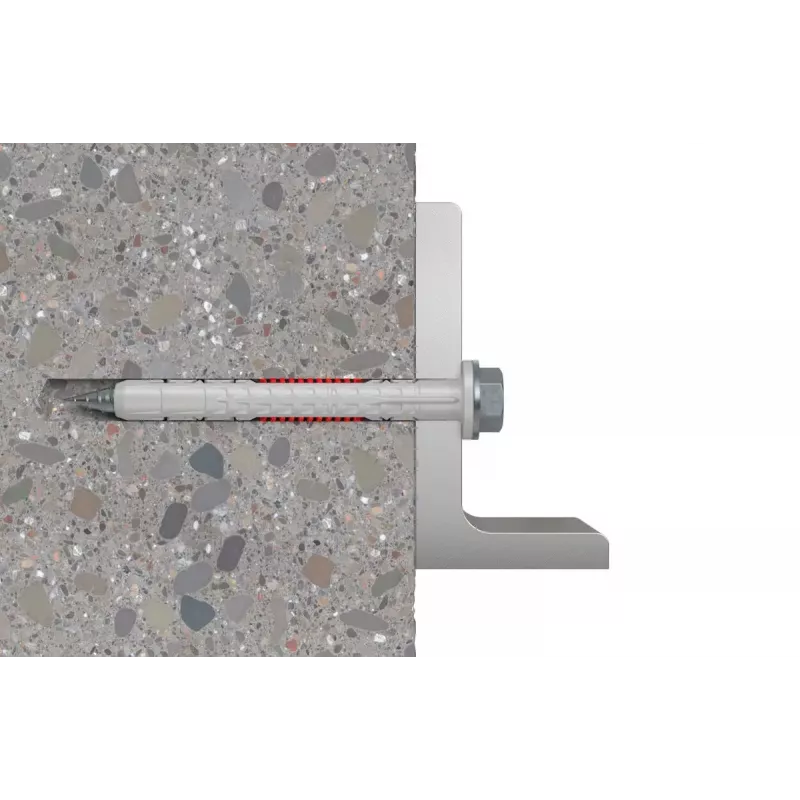

• Anchoring fixtures in concrete

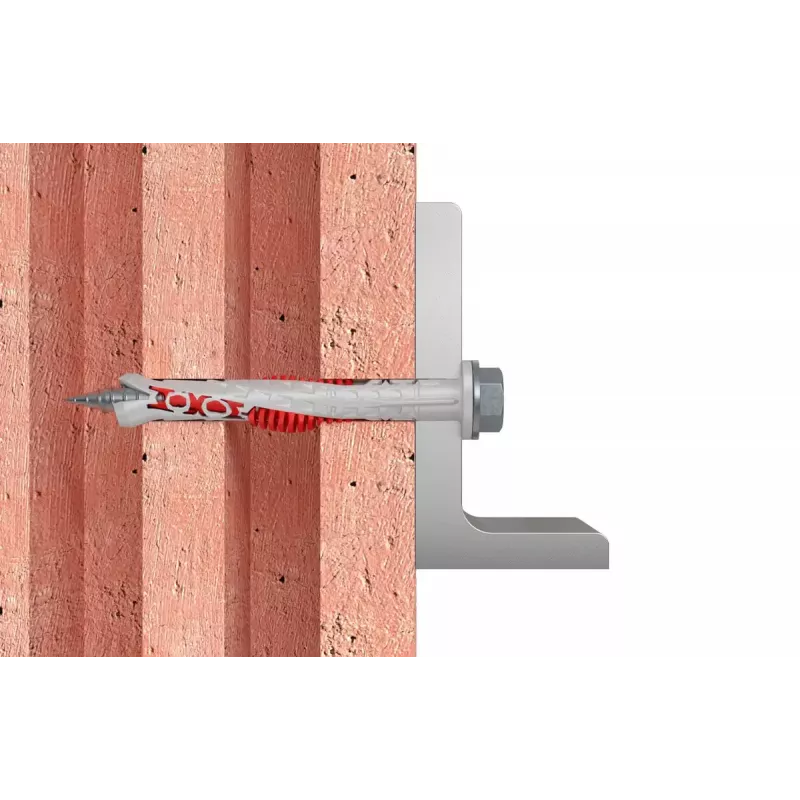

• Fixings in gypsum block and perforated brickwork
• General repair and installation work requiring 80 mm nylon anchors

Key specifications

• Brand: FISCHER
• Model / MPN: 562167
• Length: 80 mm
• Drill hole diameter: 10 mm
• Minimum drill hole depth: 90 mm
• Material: Nylon (grey main body, red component)
• Pack quantity: 50 pieces
• EAN: 4048962440287

How to use

Drill a 10 mm hole to at least 90 mm depth in the chosen substrate, clean the hole of dust, insert the Fischer 562167 expansion anchor fully and drive in the pre-mounted safety screw until the anchor sets. For perforated materials, ensure the lamellas engage with the stone web; for solid materials the design distributes load evenly into the substrate. Do not exceed the recommended embedment depth and follow applicable drilling and fastening practices.

Recommendations

Use the anchor for non-structural applications and follow the ETA guidance for multiple use. Choose the correct drill bit and maintain the minimum drill hole depth of 90 mm. Avoid using the anchor in conditions or materials not covered by the product's ETA.
