Rozporná kotva Fischer 562156 100 mm nylon 50 kusov

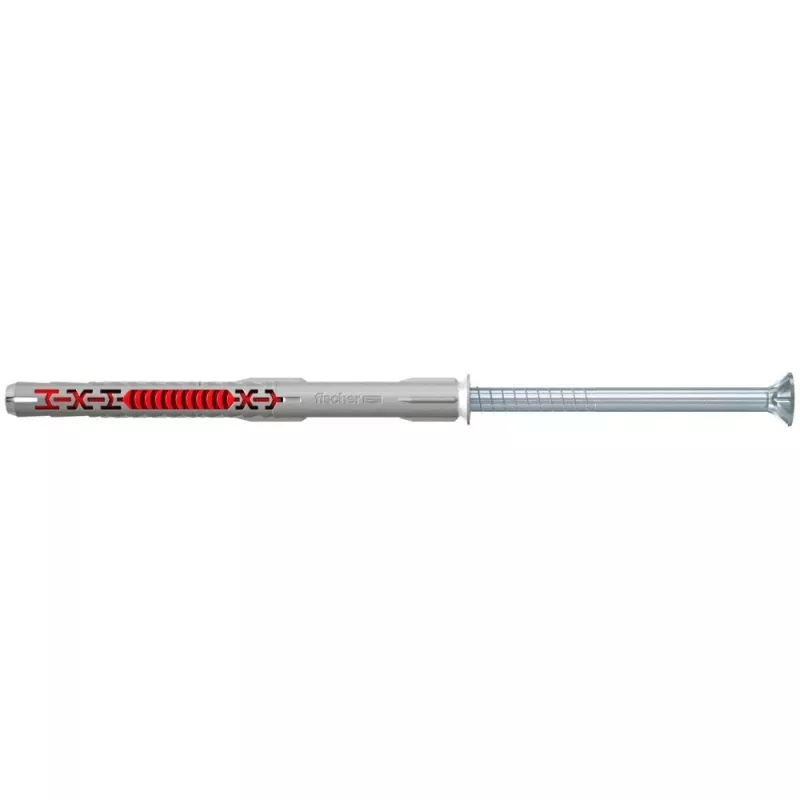

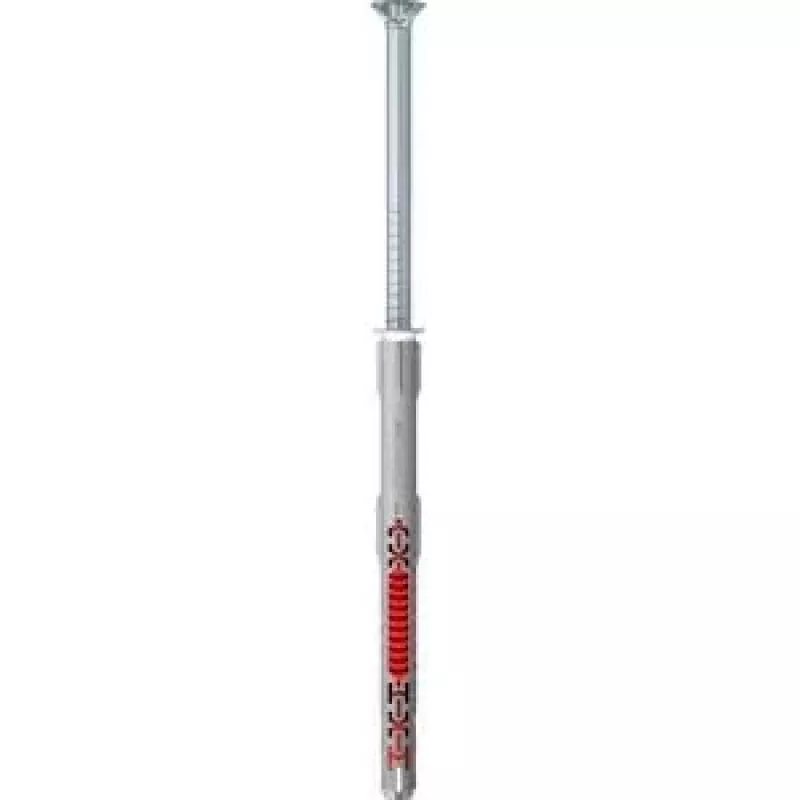

The Fischer 562156 expansion anchor is a 100 mm nylon anchor supplied in a pack of 50 pieces, designed for secure fixing in concrete, gypsum blocks and masonry. Its two-component design combines a grey nylon main body for strength with a red flexible section to ensure optimal spreading and reliable anchoring. The product includes a pre-mounted safety screw matched to the plug and is intended for push-through installation.

Advantages

The combination of design and materials allows universal use across common building substrates, while the grey nylon main body provides strength and the red component supplies flexibility for controlled expansion. A pre-mounted safety screw matched to the anchor saves installation time. The special lamella geometry expands gently in different materials to avoid fractures in porous substrates and permits anchoring close to edges. A European Technical Assessment (ETA) for multiple use in non-structural applications confirms secure load-bearing performance across material classes.

Suitable for

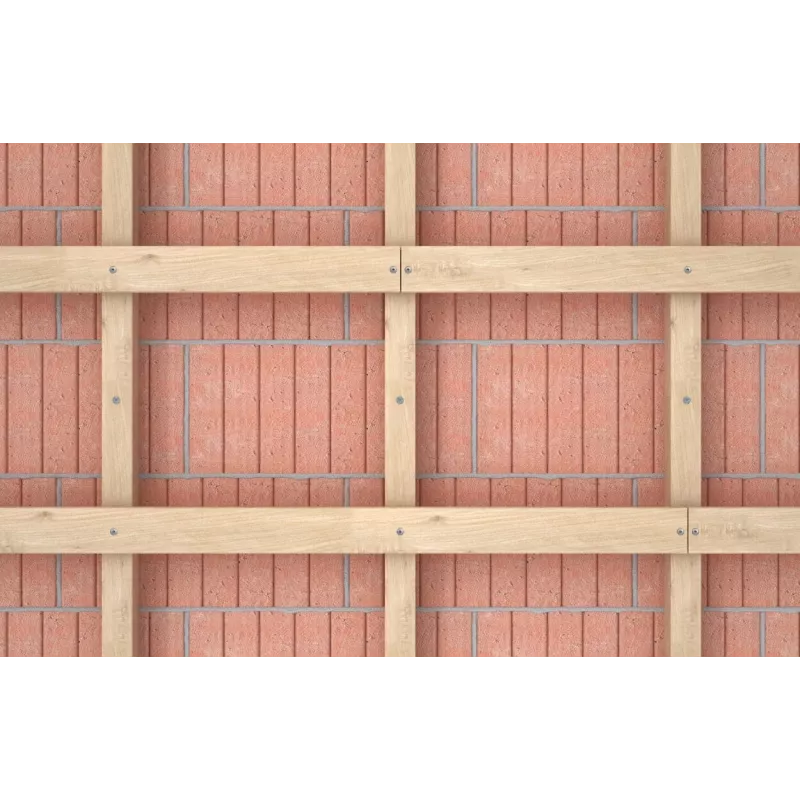

• Fixing timber to concrete or masonry
• Anchoring fixtures in concrete
• Mounting in gypsum blocks
• General repair and installation tasks requiring 100 mm anchors

Key specifications

• Brand: FISCHER
• Model / MPN: 562156
• Material: Nylon (two-component design)
• Length: 100 mm
• Pack quantity: 50 pieces
• Drill hole diameter: 10 mm
• Minimum drill hole depth: 110 mm
• EAN: 4048962440171

How to use

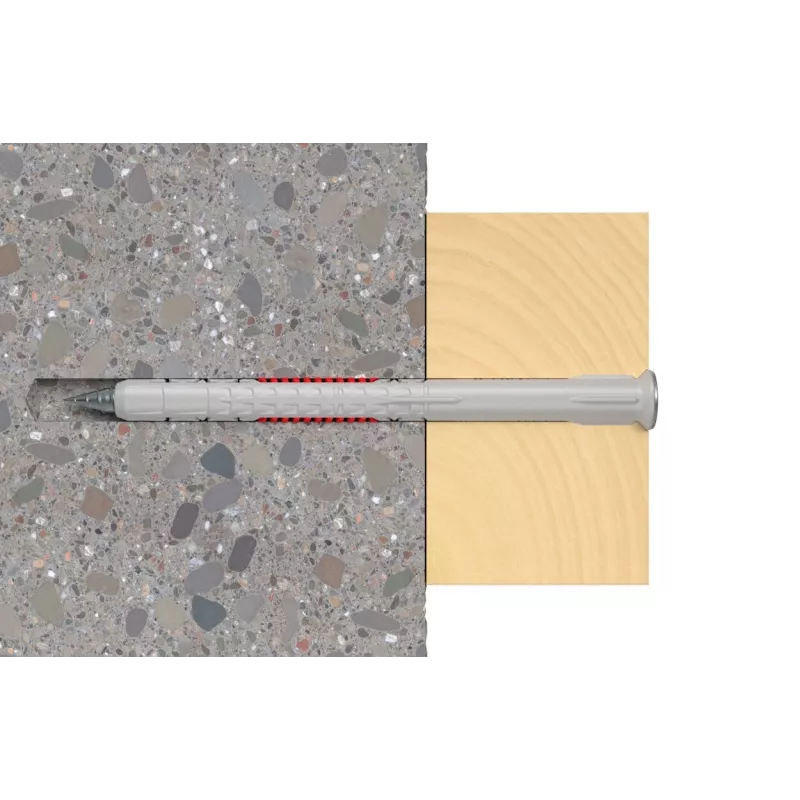

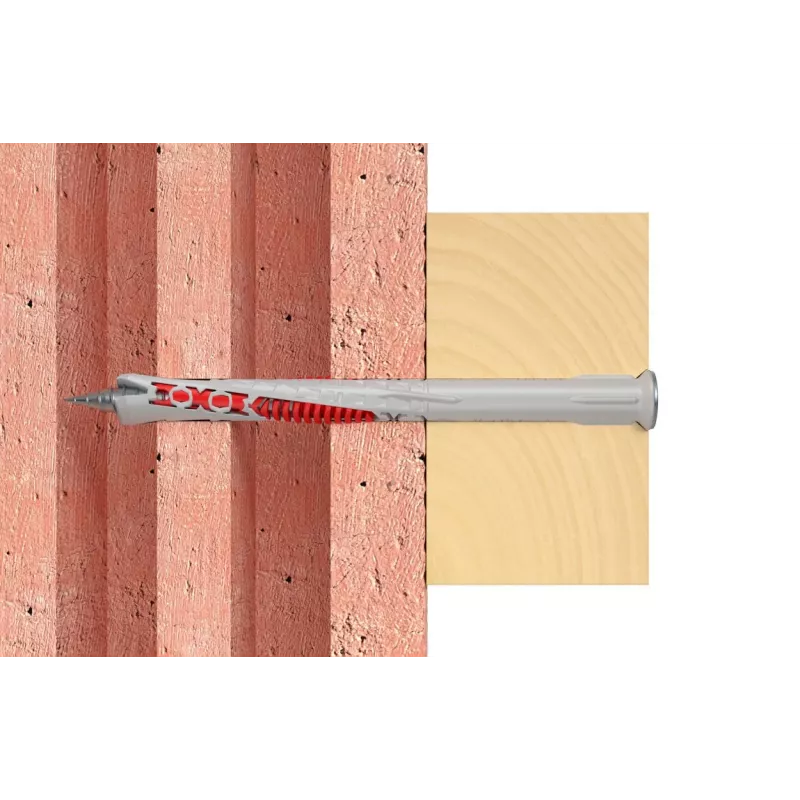

Drill a hole with the specified diameter and depth, clean the hole of dust, insert the Fischer 562156 anchor into the hole by push-through method and drive in the pre-mounted safety screw until the anchor expands and engages the substrate. In solid materials the design distributes load uniformly into the base; in perforated brickwork the lamellas expand at the stone web to form an undercut. Tighten the screw to the required torque for the fixed application.

Recommendations

Use the Fischer 562156 anchor for non-structural applications only and follow the ETA conditions for multiple use and substrate class. For porous or edge-close installations maintain correct hole depth and avoid over-torquing to prevent damage to the substrate.
