Rozširujúca karta ROLINE 16.01.4145 interná SATA M.2

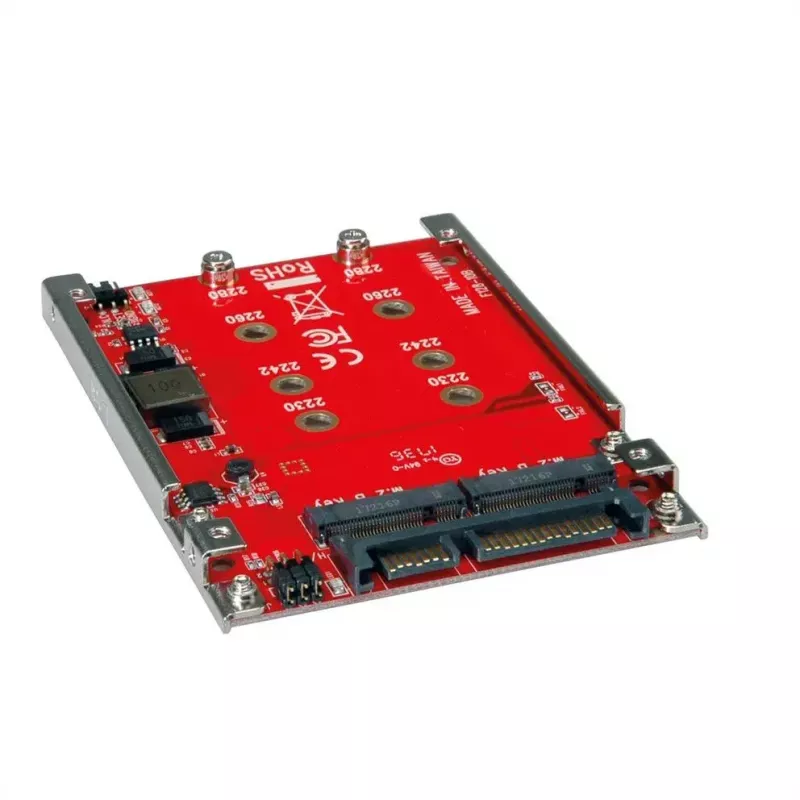

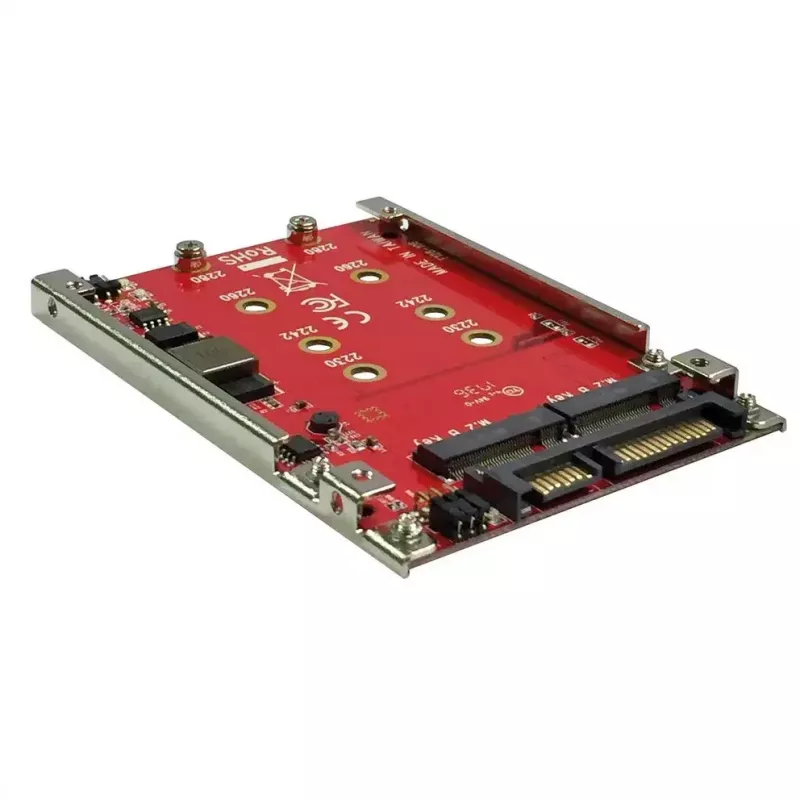

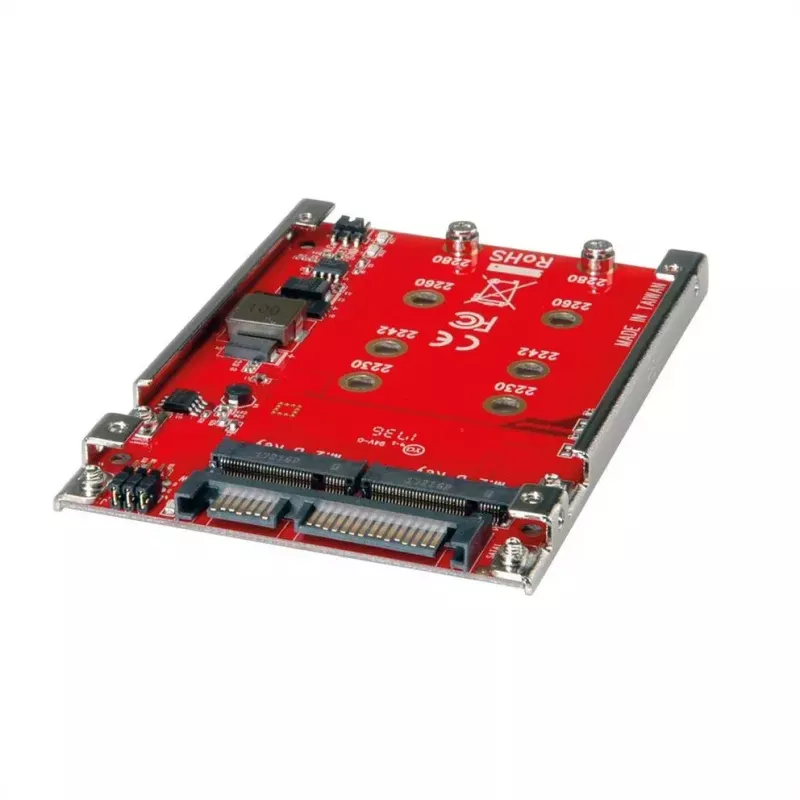

The ROLINE 16.01.4145 is a 2.5-inch hardware adapter that accepts two M.2 (NGFF) SATA SSDs. It supports B-Key M.2 modules in sizes 2230, 2242, 2260 and 2280 and provides a 6 Gbit/s SATA connection. The adapter is bootable, requires no drivers and can be mounted into a standard 2.5" drive bay for mobile or desktop use.

Advantages

This internal SATA M.2 interface card enables installation of two M.2 NGFF SATA SSDs as primary boot devices and supports both RAID 0 and RAID 1. RAID mode can be selected in hardware using a 6‑pin jumper block (jumper table printed on the board) or configured in software. The compact 2.5" form factor allows easy installation in standard 2.5" housings and laptops or in small form‑factor systems.

Suitable for

• Adding two M.2 SATA SSDs to systems with a 2.5" bay
• Creating bootable storage with M.2 SATA drives
• Configuring RAID 0 for performance or RAID 1 for redundancy
• Mobile use in laptops or external 2.5" enclosures

Key specifications

• Model: ROLINE 16.01.4145
• Form factor: 2.5" hardware adapter
• Supported SSD types: M.2 NGFF SATA, B-Key
• Supported lengths: 2230, 2242, 2260, 2280
• Interface: SATA 6 Gbit/s
• RAID: RAID 0 and RAID 1 (hardware jumper or software)
• Bootable: Yes
• Driver requirement: No drivers required

How to use

Install up to two compatible M.2 NGFF SATA SSDs (B‑Key, supported lengths 2230–2280) onto the adapter board and secure them with the supplied screws. Insert the adapter into a 2.5" drive bay or enclosure and connect the SATA data and power cables to the host system. Select RAID mode using the 6‑pin jumper block following the jumper table printed on the board, or configure the desired RAID level in the operating system. The drives are recognized as standard SATA devices and can be used as boot drives without additional drivers.

Recommendations

Use high-quality M.2 SATA SSDs from reputable manufacturers and verify compatibility with B‑Key and supported lengths. When configuring RAID, back up important data before changing modes and follow the jumper table on the board to avoid misconfiguration.
