Rozširujúca sada Neomounts AWL-250BL18 VESA 400x600 800x800

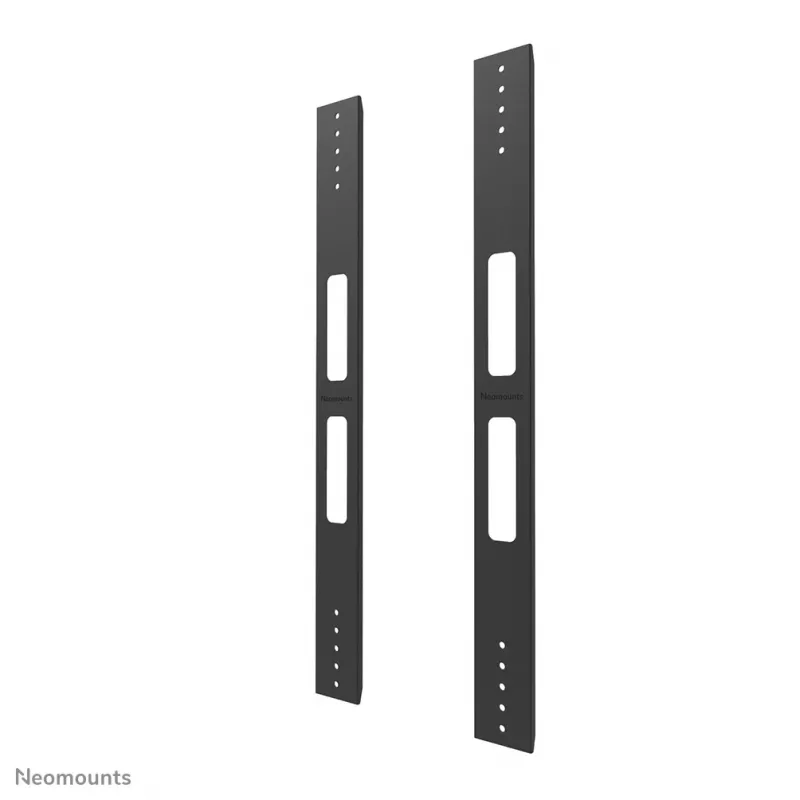

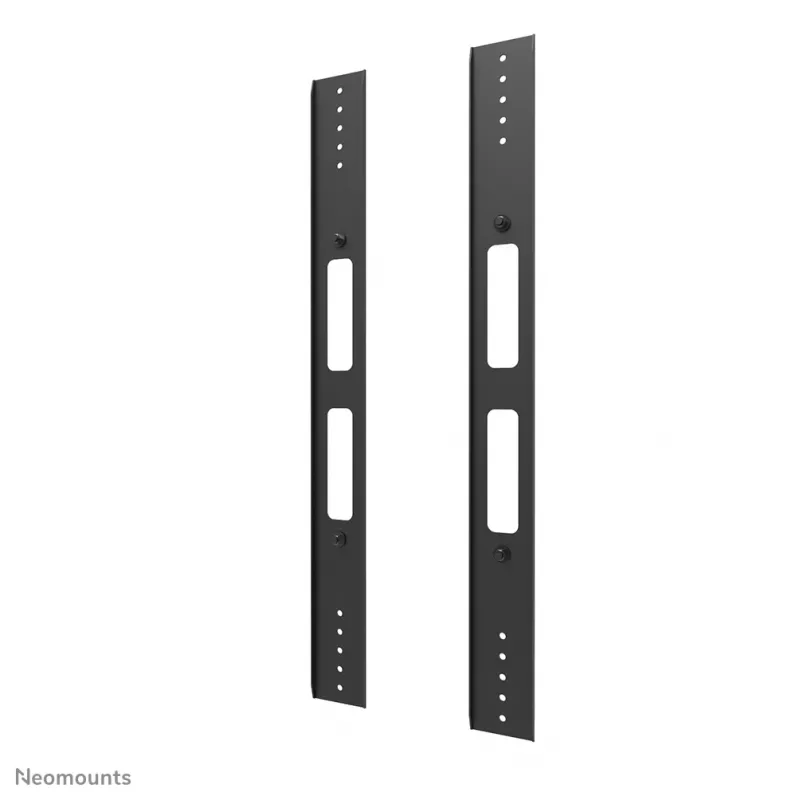

The Neomounts AWL-250BL18 is a VESA extension kit for wall mounts that increases the VESA pattern from 400 mm to 600, 700 or 800 mm. It is designed for mounts with a maximum load capacity of 75 kg and fits on top of existing mount brackets to allow both landscape and portrait mounting. The product measures 80 mm in width, 10 mm in depth and 840 mm in height, and is finished in black.

Advantages

The extension kit broadens VESA compatibility without replacing the original mount, maintaining the original load rating of up to 75 kg. Installation uses the existing bracket points, and the kit supports both landscape and portrait orientations. Its slim profile and black finish integrate with most mounting systems.

Suitable for

• Extending VESA from 400 mm to 600/700/800 mm
• Wall mounts that need a wider VESA pattern
• Single-display installations up to 75 kg

Key specifications

• Maximum VESA mount: 800 x 800 mm
• Maximum weight capacity: 75 kg
• Number of displays supported: 1
• Product colour: Black

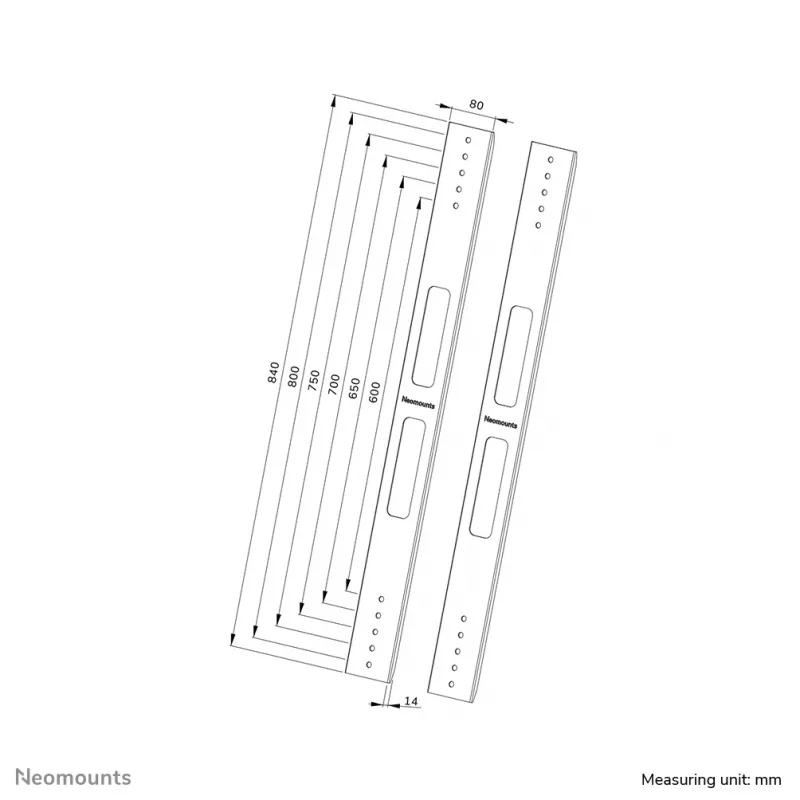

• Dimensions: 80 mm (W) x 10 mm (D) x 840 mm (H)
• Weight: 2.13 kg

How to use

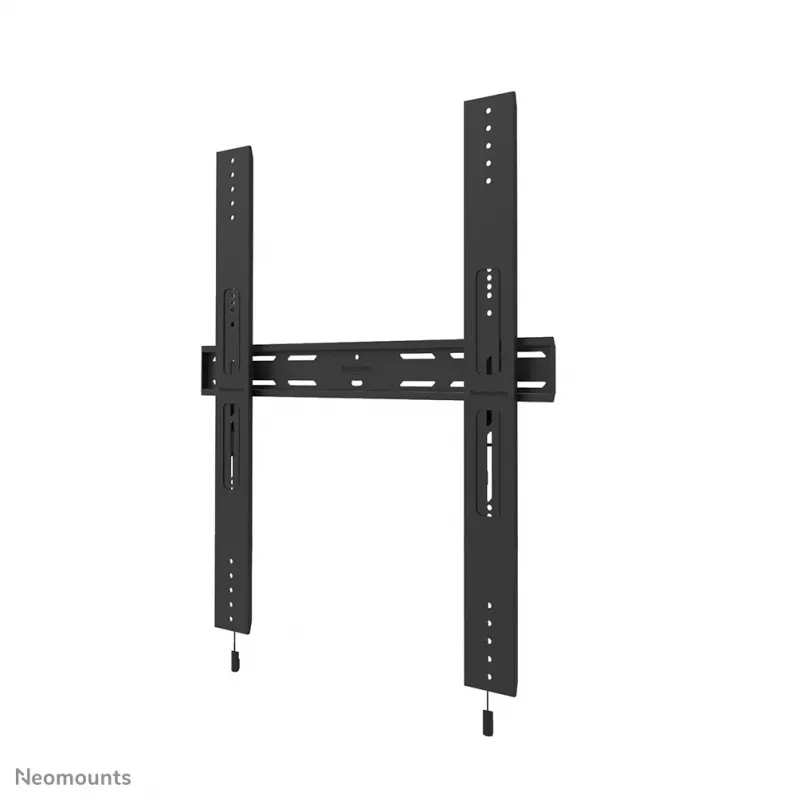

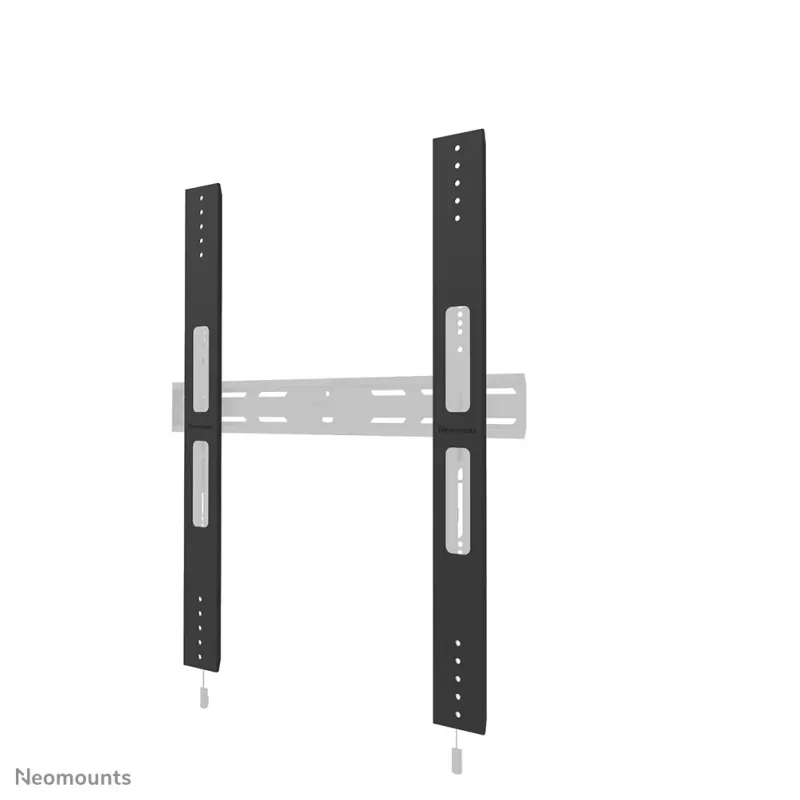

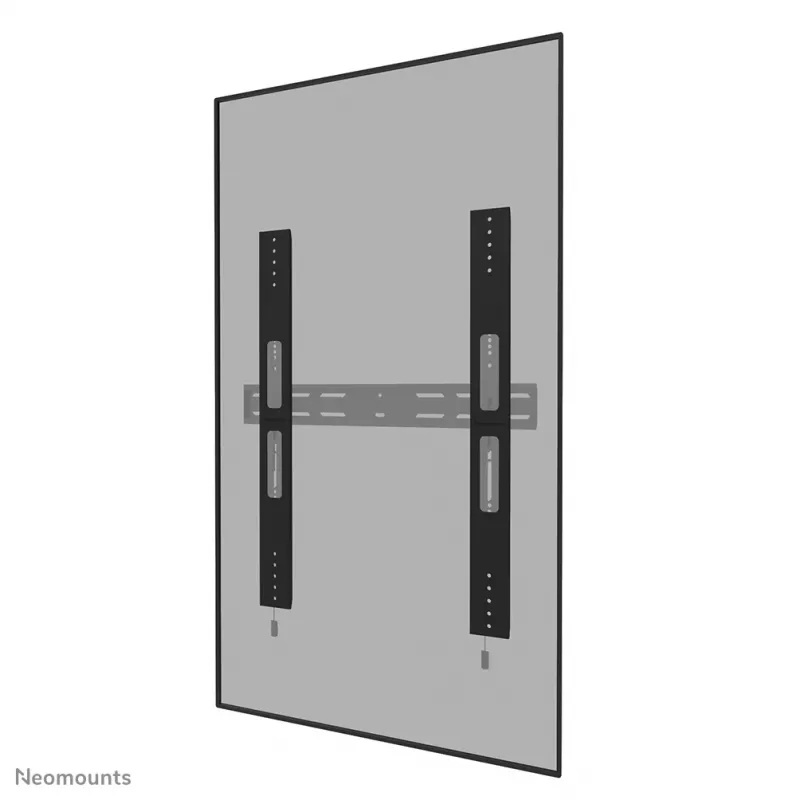

Attach the AWL-250BL18 extension kit on top of the existing mount brackets according to the mount manufacturer's instructions. Align the extension to the mount's bracket holes to extend the VESA pattern from 400 mm up to the desired 600, 700 or 800 mm configuration, then secure all fasteners firmly. After installation, mount the display in either landscape or portrait orientation following standard VESA mounting procedures.

Recommendations

Confirm that the existing mount supports the combined load and that all fasteners are tightened to the recommended torque. Use the extension only on mounts rated for at least 75 kg and check compatibility with your display's VESA pattern before installation.
