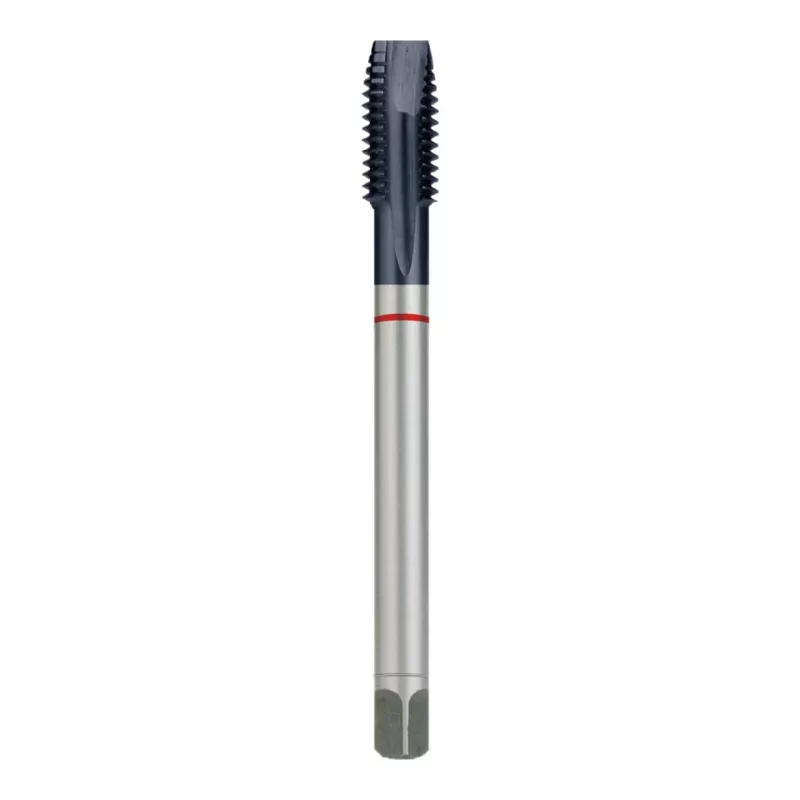

RUKO MGB-DIN376-HSSCo-TiAlN-60°-M16x2,0 strojový závitník

In a busy machine shop, a machinist needs to cut precise M16x2.0 threads in through holes of steel and stainless steel workpieces. The RUKO GMBH MGB-DIN376-HSSCo-TiAlN-60°-M16x2,0 machine tap is built for this task, offering reliable thread cutting in demanding materials.

Key specifications

• Thread standard: Metric Coarse
• Nominal thread size: M16
• Thread pitch: 2.0 mm
• Tool standard: DIN 376
• Material: HSSCo (High-Speed Steel with Cobalt)
• Coating: TiAlN (Titanium Aluminum Nitride)
• Thread angle: 60°
• Tolerance class: ISO 2 (6H)
• Application type: Through holes
• Cutting direction: Right-hand cut
• Flute type: Straight flute
• Total length (L1): 110 mm
• Thread length (L2): 30 mm
• Shank diameter (d2): 12 mm
• Square drive (k): 9 mm
• Recommended pre-drill diameter: 14.0 mm
• Recommended materials: Steel, Stainless Steel, Cast Iron, Non-ferrous metals
• Tool type: Machine tap
• Number of flutes: 4
• Manufacturing process: Ground thread

Why choose it

The TiAlN coating reduces friction and heat, extending tool life in high-speed operations. HSSCo material provides good wear resistance and toughness, making it suitable for a range of metals.

Ideal use cases

• Threading through holes in steel components
• Threading stainless steel parts
• Threading cast iron and non-ferrous metals

Good to know

This tap is designed for machine tapping with a right-hand cutting direction. The straight flute design is effective for through holes, allowing chips to flow forward.
