RUKO SCE-DIN223-1-5/8x5-BSW závitová čeľusť, 1 5/8 palca BSW, 5 TPI, HSS-E, DIN 223

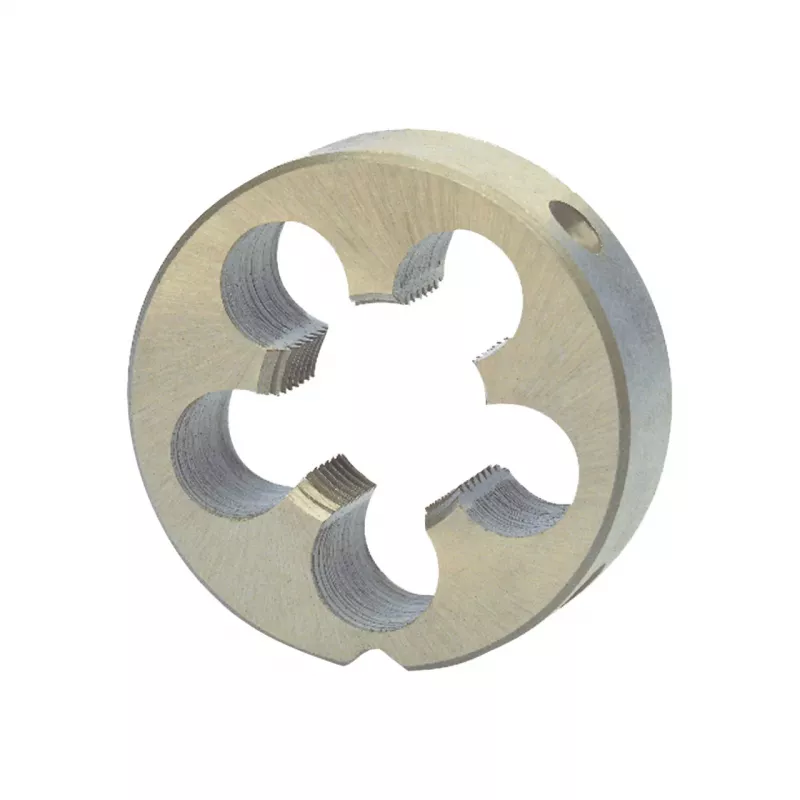

The RUKO SCE-DIN223-1-5/8x5-BSW is a precision round die for cutting external threads to British Standard Whitworth (BSW) specifications. Unlike generic dies, this tool is manufactured to DIN 223 and features a ground thread profile for accurate, repeatable results on large-diameter workpieces.

Highlights

• Nominal thread size: 1 5/8 inch BSW with 5 threads per inch
• Made from HSS-E high-speed steel with cobalt for enhanced wear resistance
• Ground thread for precise thread geometry and smooth cutting
• Right-hand cutting direction, suitable for manual and machine use
• Bright uncoated surface finish

In daily use

This die is intended for cutting external threads on rods and shafts in general-purpose steels, non-ferrous metals, cast iron, and stainless steel. Its 80 mm outer diameter and 20 mm thickness provide a stable grip in die stocks or holders, while the four cutting edges distribute the load for cleaner threads. The medium fit tolerance balances ease of assembly with secure fastening.

Full specifications

• Tool type: Round die (cutting die)
• Thread standard: British Standard Whitworth (BSW)
• Nominal thread size: 1 5/8 inch
• Threads per inch (TPI): 5
• Die standard: DIN 223
• Material: HSS-E (high-speed steel with cobalt)
• Cutting direction: Right-hand
• Outer diameter (D1): 80 mm
• Thickness (h): 20 mm
• Thread tolerance: Medium fit
• Thread angle: 55°
• Application: External thread cutting
• Suitable materials: General purpose steels, non-ferrous metals, cast iron, stainless steel
• Manufacturing process: Ground thread
• Surface finish: Bright (uncoated)
• Number of cutting edges: 4
• Recommended use: Manual and machine applications
• Product series: Völkel Standard Line

Final note

RUKO's SCE-DIN223-1-5/8x5-BSW round die is a dependable choice for workshops requiring accurate BSW threads on larger diameters, backed by the precision of DIN 223 manufacturing.
