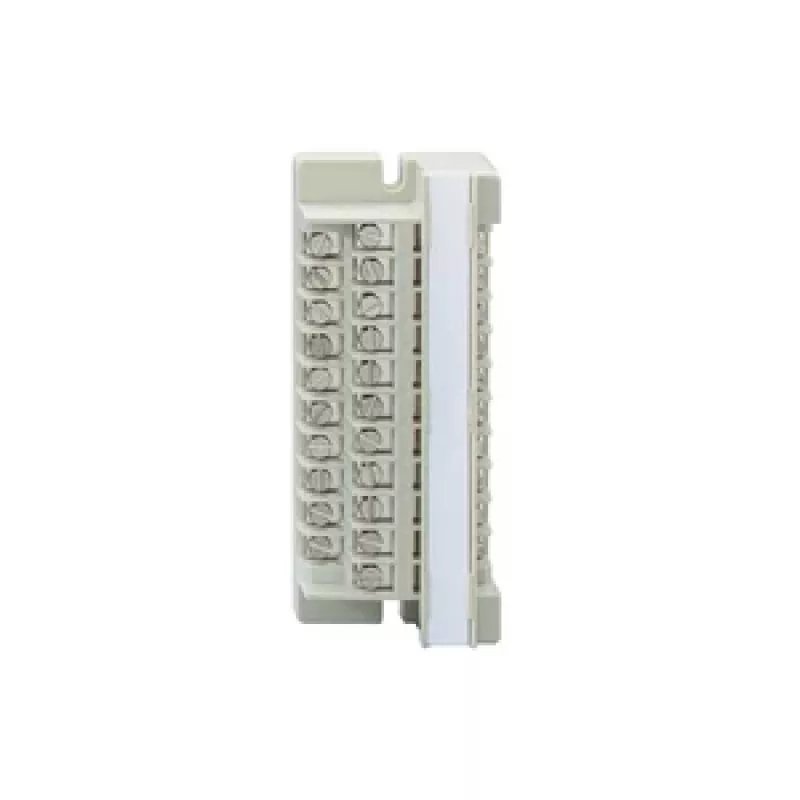

Rutenbeck AsLe A 10 S/S - zakončovací blok - svetlosivá, RAL 7035 (260033)

This termination block provides a shielded LSA-Plus connection point for 10 double-wire pairs (20 connections) in voice and data installations. Its insulation displacement contacts accept solid conductors from 0.4 to 0.8 mm (AWG 26-20) with insulation diameters up to 1.6 mm, ensuring reliable terminations without stripping.

Advantages

The shielded housing in light grey (RAL 7035) reduces electromagnetic interference, while the silver-plated bronze contacts deliver low contact resistance of less than 2 mOhm and support over 200 insertion cycles. The PC/ABS housing meets UL 94 V-0 flammability requirements and operates from -5°C to +45°C.

Suitable for

• Structured cabling in office and industrial environments
• Voice and data networks up to Cat.5e/Cat.6 depending on system
• Backmount frame or profile mounting installations

Key specifications

• Connection type: LSA-Plus (IDC)
• Number of pairs: 10 DA (20 connections)
• Shielding: Yes
• Colour: Light grey (RAL 7035)
• Wire compatibility: 0.4 - 0.8 mm solid (AWG 26-20)
• Insulation diameter: 0.7 - 1.6 mm
• Contact material: Bronze, silver-plated
• Insulation resistance: > 10^9 Ohm
• Operating temperature: -5°C to +45°C
• Storage temperature: -25°C to +70°C
• Flammability rating: UL 94 V-0

Recommendations

Ideal for installers requiring a compact, shielded termination point for multi-pair cables in patch panels or distribution frames.
