S CONN MAXIMUM CONNECTIVITY PV4 súprava predlžovacích káblov 4mm² 2x50m čierna 02-32505

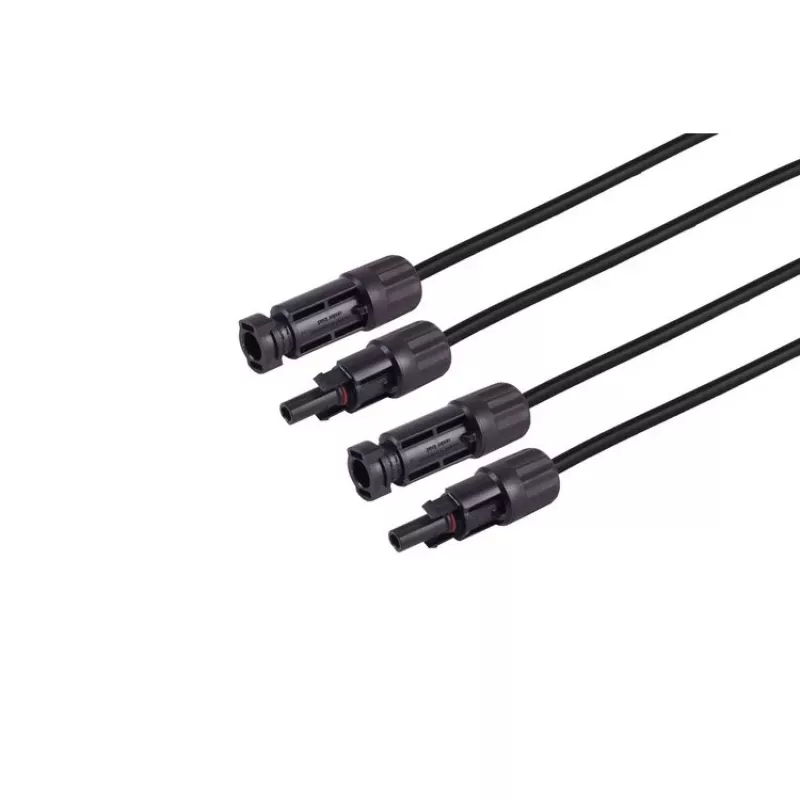

Harness the sun with confidence using this 100-meter total solar extension solution, delivering 4 mm² tinned copper conductors rated for up to 45 A at 1000 V DC. Each of the two 50 m cables features MC4 male-to-female connectors with IP67 protection, ensuring a secure, weatherproof link for your photovoltaic array.

Overview

The S CONN MAXIMUM CONNECTIVITY PV4 Extension Set provides two 50-meter black solar cables with 4 mm² cross-section, ideal for bridging long distances between solar panels and inverters. The halogen-free, UV-resistant XLPE insulation withstands harsh outdoor conditions, while the tinned copper conductors offer excellent conductivity and corrosion resistance.

What stands out

• Two 50 m cables (100 m total) with MC4 connectors
• 4 mm² tinned copper conductors for high current up to 45 A
• UV and ozone resistant, halogen-free XLPE jacket
• Operating temperature range -40°C to +90°C
• IP67 connectors for dust and water protection

Technical details

• Cable type: Solar extension cable
• Conductor cross-section: 4 mm²
• Cable length per cable: 50 m
• Number of cables: 2
• Total cable length: 100 m
• Connector type: MC4 male to MC4 female
• Cable colour: Black
• Conductor material: Tinned copper
• Insulation material: XLPE (cross-linked polyethylene)
• Jacket material: Halogen-free, UV-resistant XLPE
• Rated voltage: 1000 V DC
• Rated current: Up to 45 A
• Operating temperature range: -40°C to +90°C
• UV resistance: Yes
• Ozone resistance: Yes
• Ingress protection (connectors): IP67
• Flame retardancy: IEC 60332-1-2
• Certifications: TÜV Rheinland, CE
• Application: Photovoltaic systems

Our verdict

A robust and reliable extension set for solar installations, offering generous length, high current capacity, and durable construction for long-term outdoor use.
