S CONN MAXIMUM CONNECTIVITY SAT koaxiálny kábel 1,0/4,6, 4-násobné tienenie, CCS, >110 dB, 500 m, biela 15-40005006

Satellite installers and professional AV technicians rely on this 500-meter reel of S CONN MAXIMUM CONNECTIVITY coaxial cable for long, uninterrupted runs in residential and commercial satellite installations. The 1.0/4.6 cable features a copper-clad steel inner conductor and 4-fold shielding (two foil layers and two braids), achieving a shielding effectiveness greater than 110 dB. This high screening class (A+) ensures minimal signal interference, making it suitable for DVB-S/S2, DVB-T/T2, and DVB-C applications. The white PVC jacket is durable and easy to handle during installation.

Key specifications

• Inner conductor: 1.0 mm copper-clad steel (CCS)
• Dielectric diameter: 4.6 mm
• Outer cable diameter: 6.8 mm
• Impedance: 75 Ohm
• Shielding: 4-fold (2x foil, 2x braid)
• Shielding effectiveness: >110 dB
• Screening class: A+
• Attenuation: 6.5 dB/100m @ 100 MHz, 14.5 dB/100m @ 500 MHz, 21.0 dB/100m @ 1000 MHz, 34.5 dB/100m @ 2400 MHz
• Length: 500 m
• Jacket material: PVC
• Colour: White

Why choose it

The high shielding effectiveness and low attenuation ensure reliable signal quality over long distances, reducing the need for signal amplifiers. The CCS inner conductor provides good mechanical strength while keeping costs reasonable for large projects. The 500 m reel allows for fewer splices and consistent performance across the entire installation.

Ideal use cases

• Satellite TV distribution in apartment buildings
• Long cable runs from dish to multiswitch
• Professional AV installations requiring high shielding
• DVB-T/T2 and DVB-C antenna cabling

Good to know

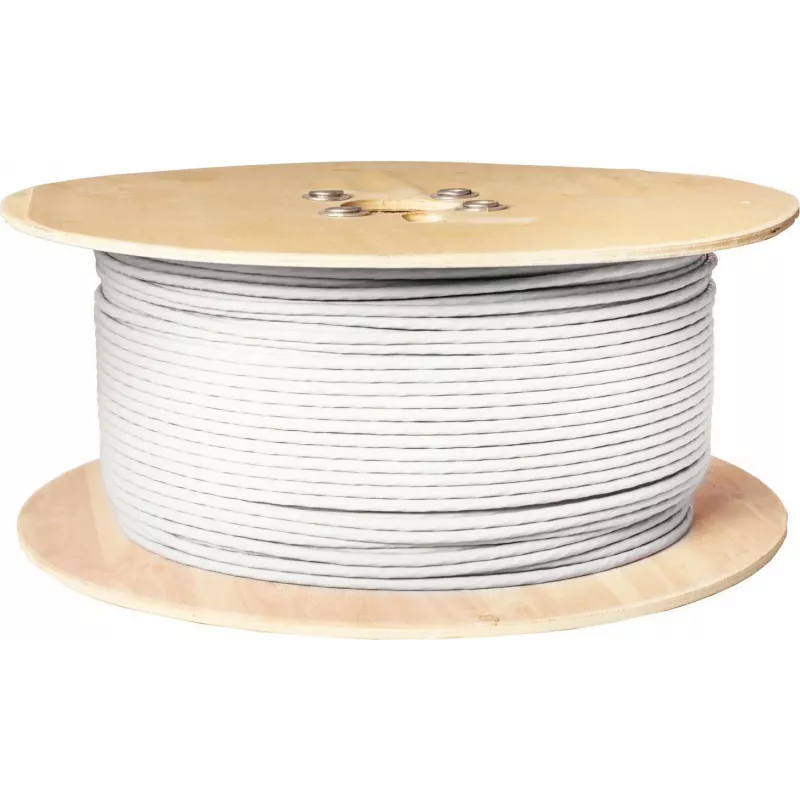

The cable is supplied on a reel for easy pulling and storage. It is not pre-terminated, so you will need appropriate F-type or IEC connectors for your specific setup. The white jacket is UV-stable for outdoor use, but we recommend protecting exposed sections with conduit for longevity.
