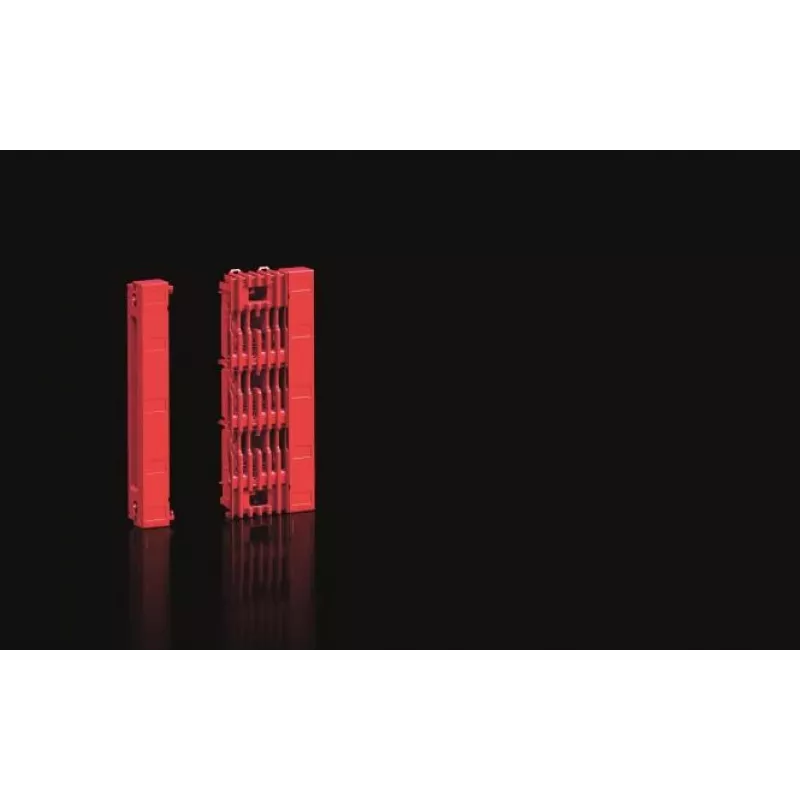

Sada koncového modulu Rittal RiLineX RX 9360101 pre systém zberníc — základný modul 1/2

The Rittal RiLineX RX end module set Basismodul 1/2 is an accessory designed for use with RiLineX modular busbar systems in electrical distribution enclosures and control panels. It provides end termination and mechanical support for a RiLineX busbar run, enabling secure closure of the busbar assembly and helping maintain alignment and insulation at the end of a busbar section.

Advantages

The end module set offers a compact solution for terminating RiLineX busbar sections while preserving the mechanical stability of the assembly. It is manufactured to match the dimensions and attachment points of the RiLineX RX system, ensuring compatibility and reliable fit. The component contributes to safer installation by covering exposed conductor ends and supporting mounting within enclosures.

Suitable for

Key specifications

How to use

Install the end module set at the end of a RiLineX RX busbar run following the mechanical mounting points and attachment method specified for the RiLineX system. Ensure the busbar is de-energized before fitting the module. Align the module with the busbar profile so that it covers the conductor ends and secures to the enclosure or mounting rail using the appropriate fasteners. Verify that the module is seated correctly and that any insulation or protective covers are in place before re-energizing the circuit.

Recommendations

Use this end module set together with other RiLineX RX system components and follow manufacturer installation instructions and applicable electrical safety regulations. Confirm compatibility with the specific RiLineX busbar variant installed and perform work only when power is isolated.
