SAS kábel Intel CYPCBLSLINTKIT SlimSAS na SlimSAS

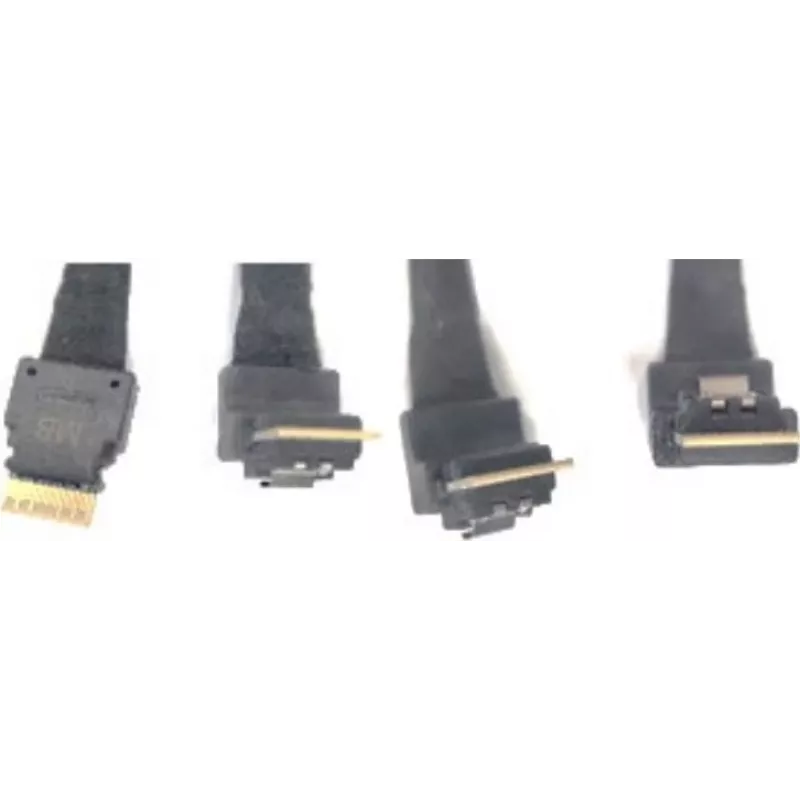

SAS Cable Intel CYPCBLSLINTKIT SlimSAS to SlimSAS is a spare/accessory cable set designed for 1U and 2U Intel server systems (compatible with Intel Server M50CYP and Intel Server Board M50CYP). The kit provides power and data interconnects between the server board and a SAS interposer or midplane card; note that the system does not support using a SAS interposer card and a midplane card simultaneously.

Advantages

The cable kit includes multiple pre-terminated lengths to simplify installation in compact server chassis and to maintain correct electrical and signal routing. SlimSAS-to-SlimSAS connectors ensure compatibility with SlimSAS ports on supported Intel server boards and interposer cards. The separate power splitter and data/I2C leads allow direct connection of board power and management signals without additional adapters.

Suitable for

• 1U and 2U Intel server systems requiring SlimSAS interconnects
• Connecting Intel Server Board M50CYP to a SAS Interposer card
• Replacing or adding spare cables in server maintenance

Key specifications

• Manufacturer: Intel
• MPN: CYPCBLSLINTKIT
• EAN: 5032037213073
• Connector type: SlimSAS to SlimSAS (multiple SlimSAS leads)
• Included cables and lengths: one 125/355 mm power splitter cable (connects server board 12 V power connector to Midplane/Interposer card), one 610 mm I2C cable (10-pin to 10-pin, server board rear to SAS Interposer), two 250 mm SlimSAS data cables (for CPU0/CPU1 lanes to SAS Interposer)
• Designed for: Intel Server M50CYP and Intel Server Board M50CYP

How to use

Identify the required configuration (SAS Interposer or Midplane) and route the appropriate cables from the kit. Connect the 125/355 mm power splitter to the server board 12 V power connector and to the midplane or interposer card power connector. Attach the 610 mm I2C 10-pin cable between the server board rear I2C header and the SAS Interposer card if the interposer is used. Connect the 250 mm SlimSAS data cables from the server board SlimSAS ports (CPU0/CPU1 lanes as labeled) to the corresponding SlimSAS ports on the SAS Interposer card, observing the VT → RA routing indicated by the kit markings.

Recommendations

Do not install both a SAS Interposer card and a Midplane card at the same time. Ensure the server is powered off and power cables are disconnected before installing or removing these cables. Use only the specified cable lengths and connections provided by the kit to preserve signal integrity in 1U/2U chassis.
