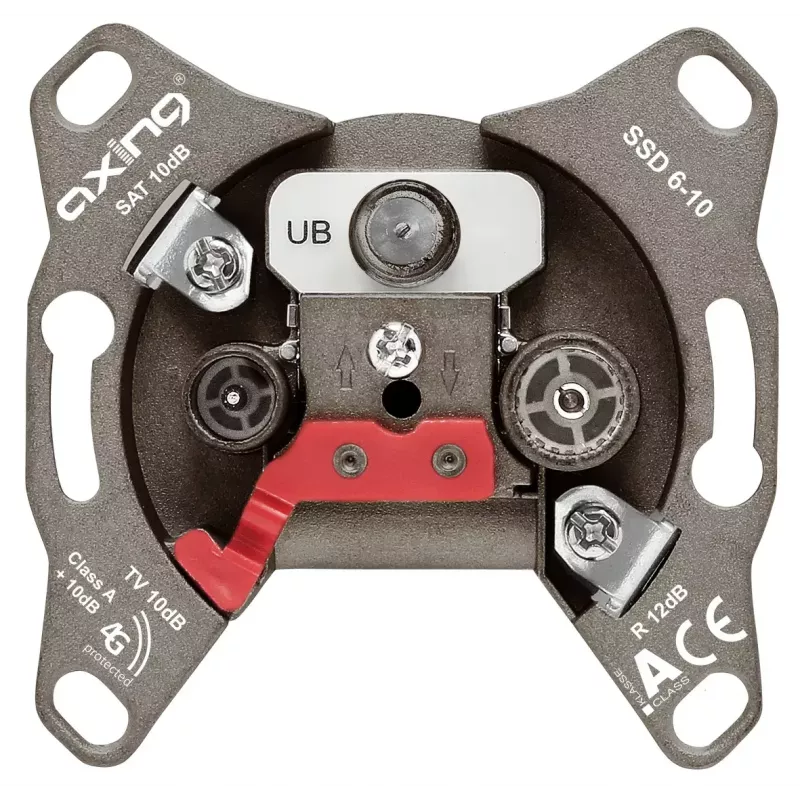

SAT + TV + Radio anténna zásuvka Axing SSD 6-10

The Axing SSD 6-10 socket outlet provides combined connections for SAT, TV and radio signals in a compact housing measuring 68 mm x 39 mm x 68 mm. Designed for flush mounting in domestic and light-commercial installations, the unit supports coaxial signal distribution for satellite, terrestrial television and FM radio receivers. The brown finish is intended to integrate with interior switch and socket ranges while the solid construction ensures stable signal contact and long service life.

Advantages

The device offers three signal outputs in a single outlet, reducing the need for separate wall plates and simplifying cable runs. Its compact dimensions make it suitable for standard installation boxes and tight mounting locations. The socket is constructed to provide reliable coaxial connections with minimal signal loss and secure mechanical retention of plugs.

Suitable for

• Home entertainment wall outlets for satellite receivers
• TV and FM radio connections in living rooms and bedrooms
• Multi-room installations where combined signal outlets reduce wall clutter
• Upgrades or replacements of existing coaxial wall plates

Key specifications

• Functions: SAT, TV, Radio combined coaxial outlet
• Mounting: flush-mounted in standard installation box
• Dimensions: 68 mm × 39 mm × 68 mm
• Color: brown
• Connection type: coaxial F-type/IEC compatible signal connectors (for SAT/TV/FM)
• Construction: solid housing designed for stable signal contact

How to use

Prepare the wall installation box and run the appropriate coaxial cables from your antenna, satellite dish or distribution amplifier. Terminate cables at the outlet using compatible connectors and secure the socket in the flush box following the mounting screws. Attach the decorative cover plate and connect receiver equipment using standard coaxial leads. Verify signal presence and quality on connected devices and adjust feed or distributor settings if required.

Recommendations

Install the outlet in accordance with local electrical and building regulations. Use quality coaxial cables and properly fitted connectors to minimise signal loss. For satellite installations, ensure appropriate grounding and polarisation settings; for multi-dwelling or complex systems, consult an experienced installer or system designer to maintain signal levels and impedance matching.
