SATA kábel DeLOCK 83956 1 m SATA 7-pinový čierny červený

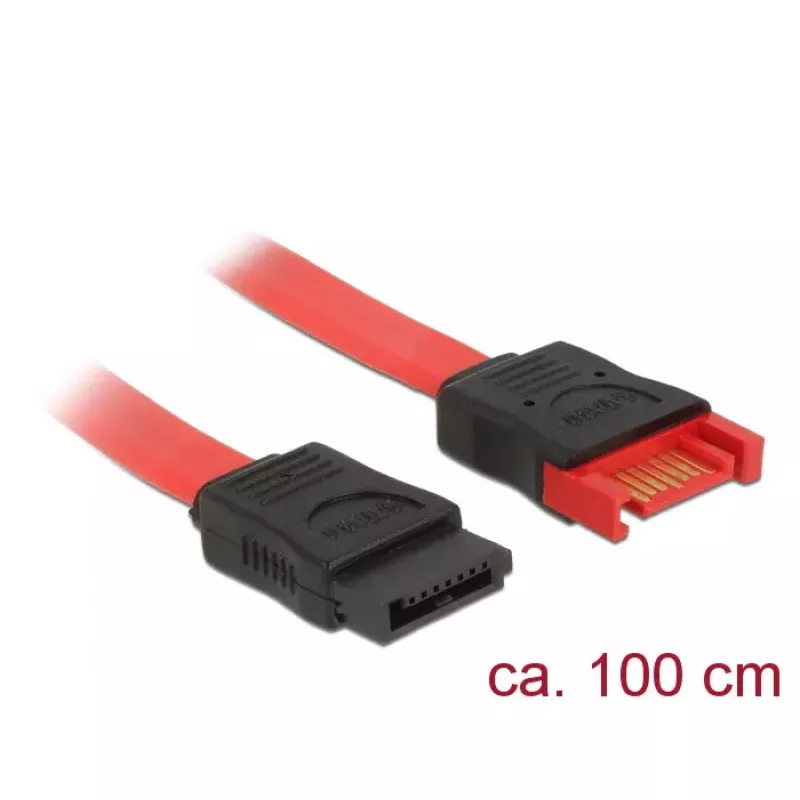

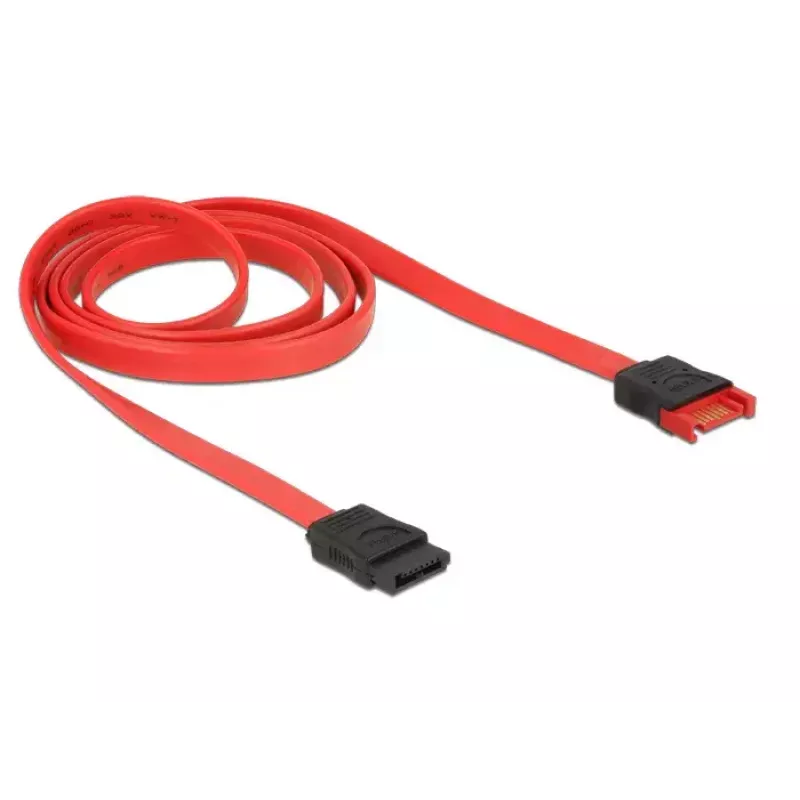

The DeLOCK 83956 SATA cable is a 1 m extension cable with two SATA 7-pin connectors, designed for internal PC connections. It supports the SATA III standard with a maximum data transfer rate of up to 6 Gb/s and is backwards compatible with earlier SATA versions, allowing connection of hard drives, SSDs and other devices with a SATA 7-pin port. The cable comes in a black and red colour scheme for a clean appearance inside the computer case.

Advantages

The cable supports up to 6 Gb/s data transfer and is backwards compatible with previous SATA versions. With two standard SATA 7-pin connectors and a 1 m length it enables flexible placement of drives and reliable internal data connections. The black and red design provides a distinct but unobtrusive look in typical PC builds.

Suitable for

• Connecting internal 2.5" and 3.5" SATA hard drives
• Connecting SATA SSDs
• Extending or replacing existing internal SATA connections inside desktop PCs

Key specifications

• Cable length: 1 m
• Connectors: SATA 7-pin to SATA 7-pin
• Maximum transfer rate: up to 6 Gb/s (SATA III)
• Compatibility: backwards compatible with previous SATA standards
• Colour: Black, Red

How to use

Power down the computer and disconnect it from the mains before installing. Plug one SATA 7-pin connector into the SATA port of the motherboard or a SATA controller, and the other connector into the SATA device (hard drive or SSD). Ensure connectors are fully seated and route the cable to avoid interference with fans or moving parts. Reconnect power and boot the system to verify the device is detected.

Recommendations

Use the cable for internal PC connections only; avoid excessive bending or pulling. For best performance ensure both the host and device support SATA III to achieve 6 Gb/s transfer rates. Replace the cable if connectors become loose or damaged.
