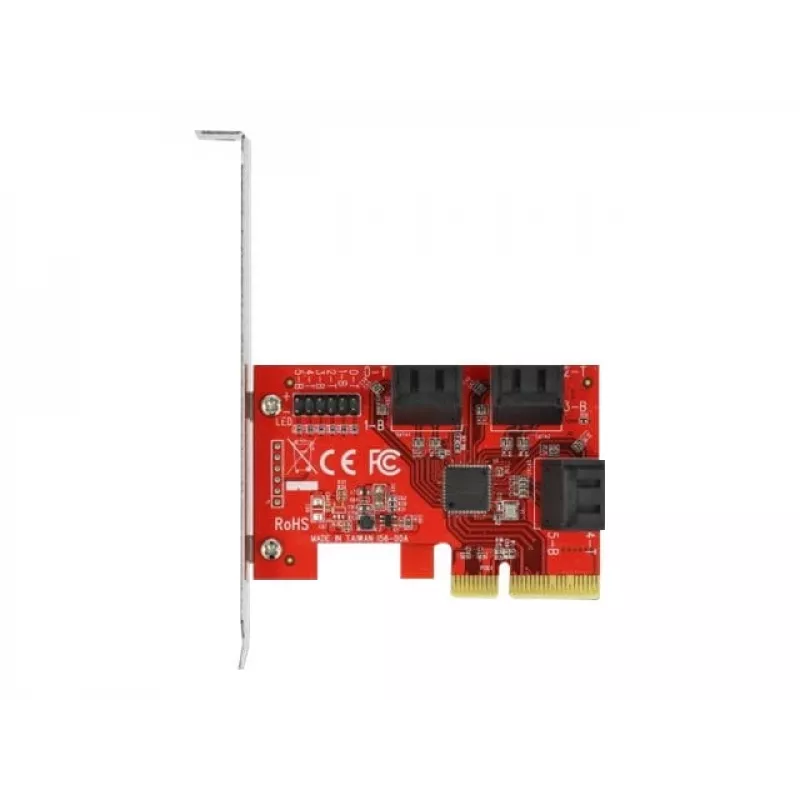

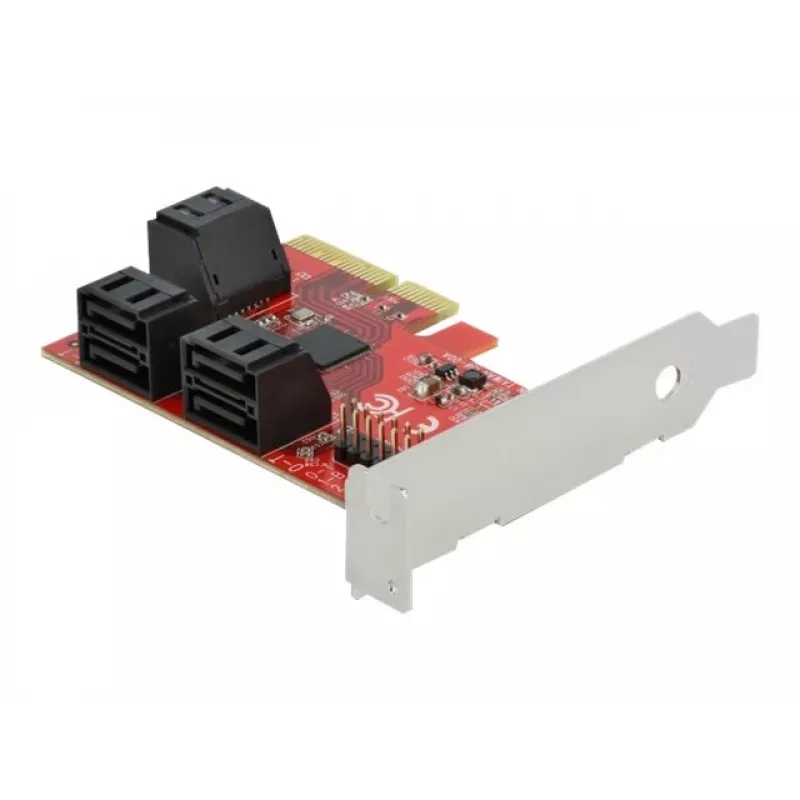

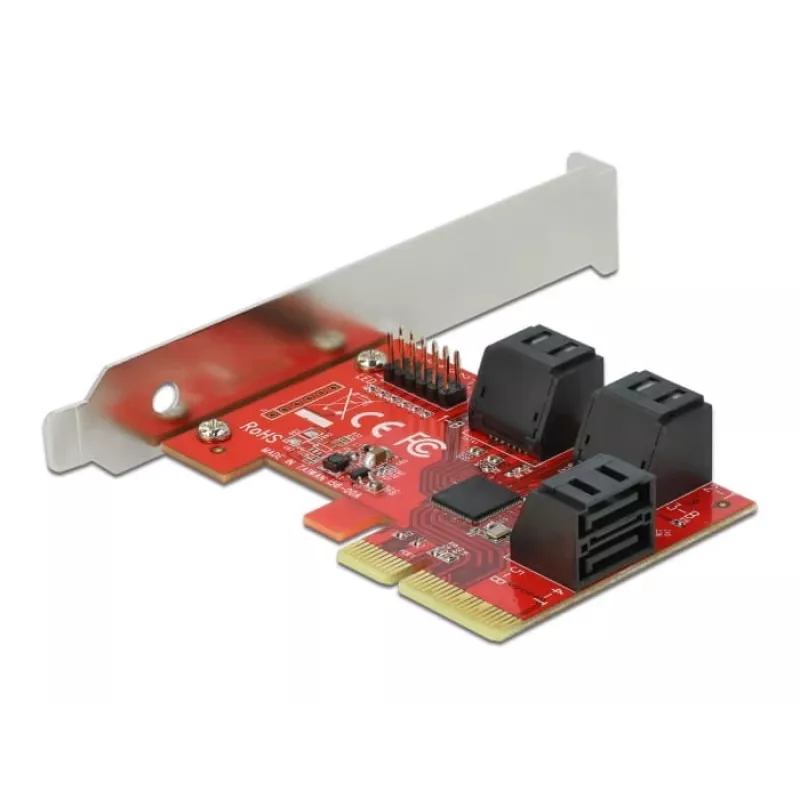

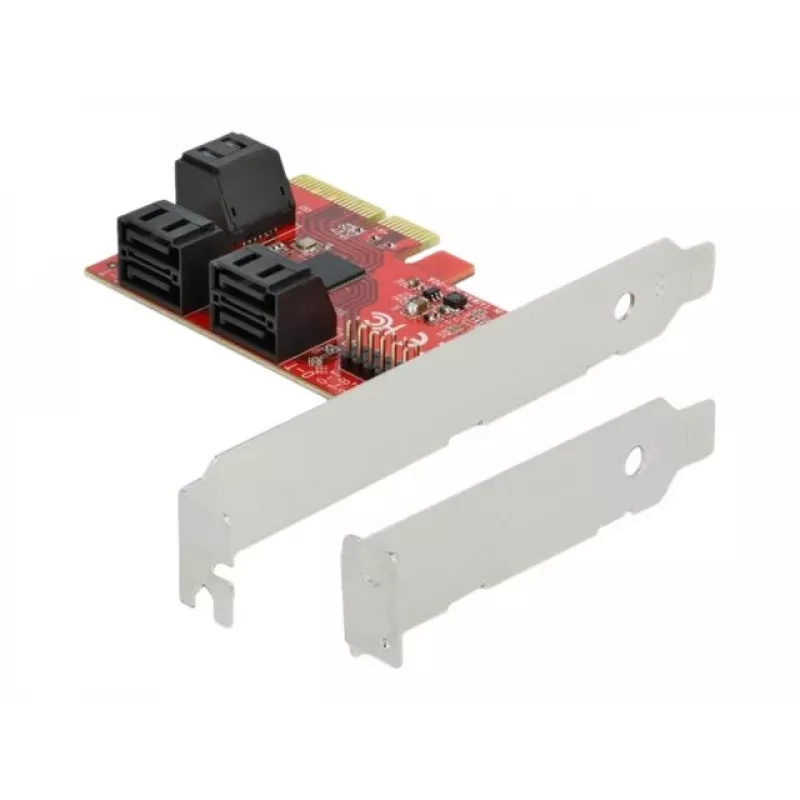

SATA PCI Express x4 karta DeLOCK 6 portov Low Profile formát

The DeLOCK SATA PCI Express x4 Card adds six internal SATA ports to a PC in a low profile form factor. It provides a PCIe host interface and SATA output interface with a maximum data transfer rate of 6 Gbit/s, allowing connection of SSDs, hard drives, optical drives and other internal SATA devices. The card is compatible with Windows 10 and Windows 8.1 and is intended for expanding internal storage capability.

Advantages

This PCI Express x4 card supports six internal SATA ports in a compact low profile design, delivering SATA III speeds up to 6 Gbit/s. It uses a standard PCIe host interface for easy installation into compatible expansion slots and enables connection of multiple internal storage devices without requiring a larger drive bay footprint.

Suitable for

• Adding additional internal HDDs or SSDs to a desktop or small form factor PC
• Expanding storage capacity for media servers or workstations
• Connecting optical drives (DVD/Blu‑ray) or other SATA peripherals
• Upgrading older systems that need more internal SATA ports

Key specifications

• Brand: DELOCK
• Model / MPN: 89042
• EAN: 4043619890422
• Host interface: PCIe (x4)
• Output interface: 6 × internal SATA ports
• Max data rate: 6 Gbit/s (SATA III)
• Form factor: Low profile
• Compatible OS: Windows 10, Windows 8.1

How to use

Power off the computer and open the case. Insert the card into an available PCIe x4 (or larger) slot and secure it to the chassis using the bracket. Connect each internal SATA cable from your drives to the card's SATA ports and attach power cables from the power supply to the drives as required. Close the case, power on the system and install any necessary drivers if the operating system does not recognize the adapter automatically. Configure connected drives in BIOS/UEFI or the OS disk management tools as needed.

Recommendations

Use compatible SATA cables and ensure adequate power supply capacity when connecting multiple drives. For small form factor systems, verify clearance for a low profile bracket. Keep system drivers and firmware up to date for optimal compatibility.
