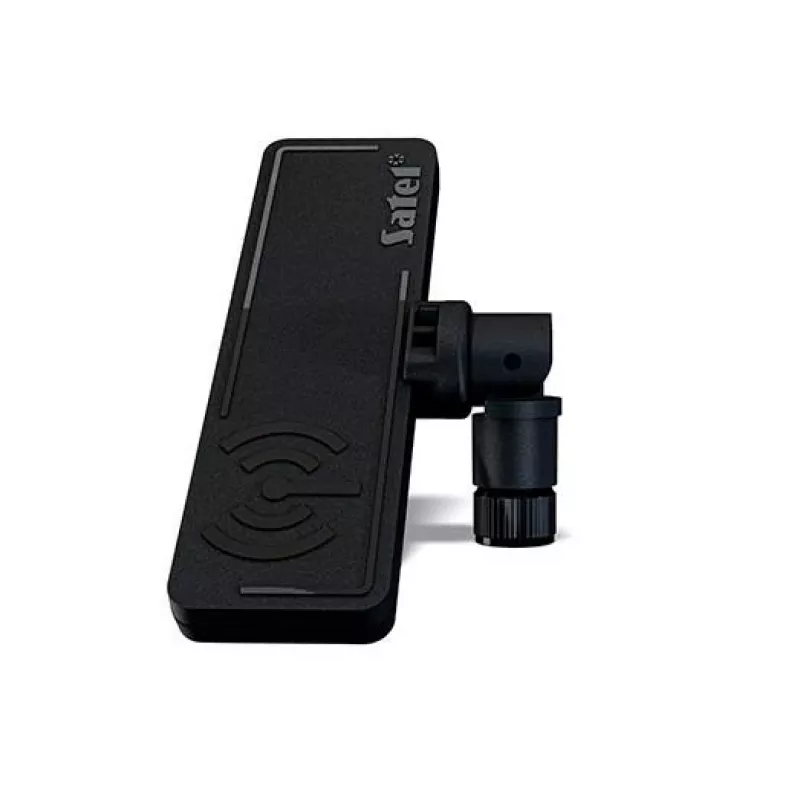

SATEL ANT-LTE-O vonkajšia LTE panelová anténa, 698-960/1710-2700 MHz, 5/7 dBi, SMA konektor samec, 5 m kábel, IP65

The SATEL ANT-LTE-O is a high-performance outdoor LTE panel antenna designed for reliable signal reception in alarm systems and communication modules. Engineered for harsh environments, it delivers robust connectivity across low and high frequency bands.

Advantages

This antenna offers exceptional gain (5 dBi low band, 7 dBi high band) for improved signal strength, a durable IP65-rated ABS enclosure for weather resistance, and easy wall or mast mounting with included bracket. The 5-meter cable with SMA male connector ensures flexible installation.

Suitable for

• Outdoor LTE signal reception for SATEL alarm systems
• Communication modules requiring reliable cellular connectivity
• Applications in remote or challenging environments

Key specifications

• Antenna Type: Panel
• Frequency Range: 698-960 MHz (Low Band), 1710-2700 MHz (High Band)
• Gain: 5 dBi (Low Band), 7 dBi (High Band)
• Polarization: Vertical
• VSWR: < 2.0
• Impedance: 50 Ohm
• Connector: SMA Male
• Cable Length: 5 m
• Ingress Protection: IP65
• Operating Temperature: -40°C to +80°C
• Enclosure Material: ABS
• Mounting: Wall / Mast (bracket included)
• Dimensions: 150 x 150 x 30 mm
• Weight: 0.2 kg

Recommendations

For optimal performance, mount the antenna in a location with clear line of sight to the nearest cell tower. Ensure the SMA connector is properly tightened to prevent signal loss. This antenna is ideal for enhancing LTE connectivity in outdoor security and communication setups.
