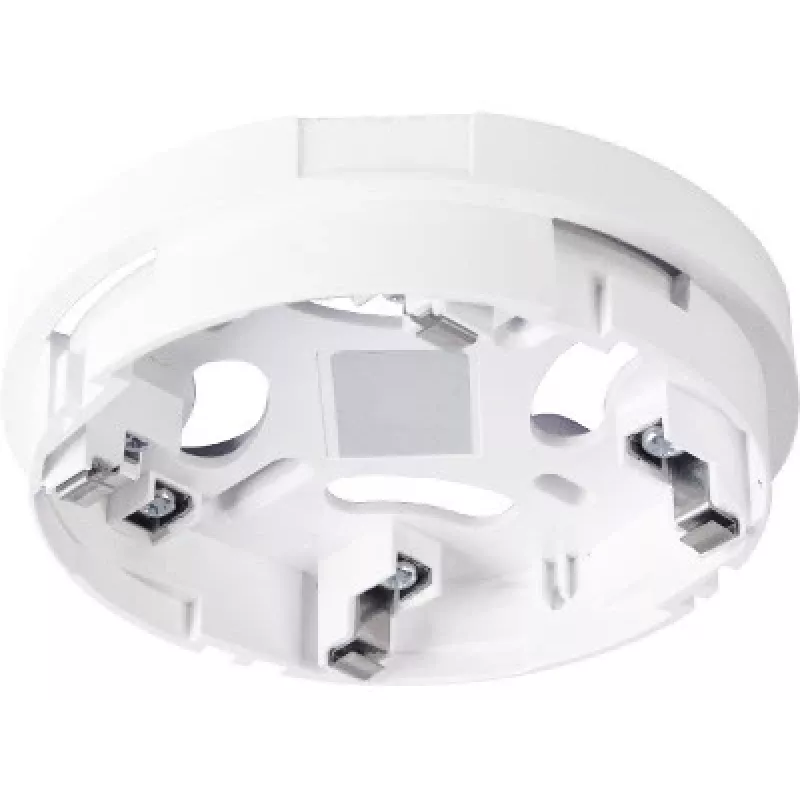

SATEL DB-100 konvenčná detektorová základňa pre sériu TSD-1, biela

The SATEL DB-100 is a conventional detector base designed for use with SATEL TSD-1 series detectors. It provides a secure and reliable connection for fire alarm systems, featuring screw terminals and a robust ABS plastic construction. The base is surface-mounted and suitable for indoor environments, ensuring easy installation and long-lasting performance.

Advantages

Easy plug-in connection for detectors, durable ABS material, and compatibility with multiple detector models make the DB-100 a versatile choice for conventional fire alarm panels.

Suitable for

• SATEL TSD-1, TSD-1 A, TSD-1 B, TSD-1 C detectors
• Conventional fire alarm systems
• Indoor surface-mount installations

Key specifications

• Product Type: Conventional Detector Base
• Brand: SATEL
• Model: DB-100
• Compatible Detector Series: TSD-1, TSD-1 A, TSD-1 B, TSD-1 C
• Mounting Type: Surface Mount
• Number of Terminals: 6
• Terminal Type: Screw Terminals
• Operating Temperature Range: -10°C to +55°C
• Relative Humidity: 20% - 90% (non-condensing)
• Material: ABS Plastic
• Color: White
• Diameter: 100 mm
• Height: 20 mm
• Application Environment: Indoor
• Installation Feature: Plug-in connection for detectors
• System Integration: Designed for conventional fire alarm panels

Recommendations

For optimal performance, use the DB-100 base with SATEL TSD-1 series detectors and ensure proper surface mounting in indoor locations. Always follow local fire safety regulations during installation.
