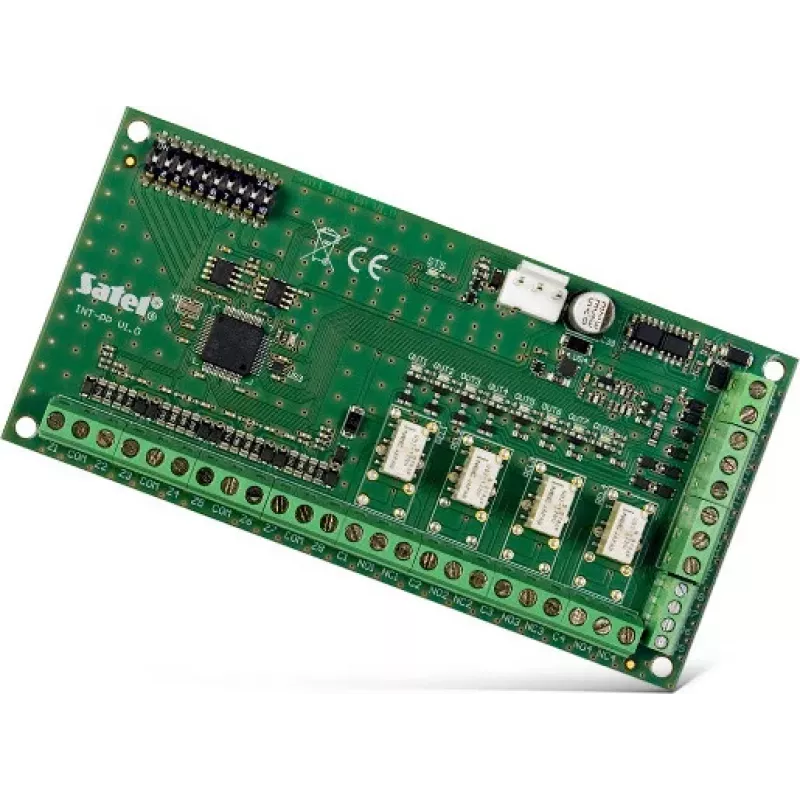

SATEL INT-PP rozširujúci modul 8 vstupov + 8 výstupov

The SATEL INT-PP Expander is a dedicated input/output expansion module designed for SATEL alarm control panels. It adds 8 programmable inputs and 8 open-collector outputs, enabling flexible zone and output expansion for security systems.

Advantages

Easy integration with SATEL INTEGRA, INTEGRA Plus, VERSA, and VERSA Plus panels. Supports multiple input configurations (NO, NC, EOL, 2EOL/NO, 2EOL/NC) for versatile wiring. Compact design fits inside the control panel enclosure, saving space. Firmware upgradeable via the control panel for future compatibility.

Suitable for

• Expanding alarm system zones in residential and commercial security installations
• Adding extra outputs for controlling sirens, lights, or other devices
• Upgrading existing SATEL alarm systems with additional I/O capacity

Key specifications

• Product Type: Input/Output Expander Module
• Compatible Control Panels: SATEL INTEGRA, INTEGRA Plus, VERSA, VERSA Plus
• Number of Programmable Inputs: 8
• Input Configuration Support: NO, NC, EOL, 2EOL/NO, 2EOL/NC
• Number of Programmable Outputs: 8
• Output Type: OC (Open Collector)
• Output Current Capacity (per output): 50 mA
• Communication Interface: Dedicated expander bus (RS-485 based)
• Power Supply Voltage: 12 V DC
• Maximum Current Consumption: 20 mA
• Operating Temperature Range: -10°C to +55°C
• Humidity Range: 93 ± 3% (non-condensing)
• Security Grade: Grade 2 (EN 50131-3)
• Mounting Type: Internal (e.g., within control panel enclosure)
• Firmware Update Capability: Yes (via control panel)
• Application: Alarm System Zone and Output Expansion

Recommendations

For optimal performance, use with SATEL control panels and ensure proper wiring according to the installation manual. The expander is intended for indoor use only.
